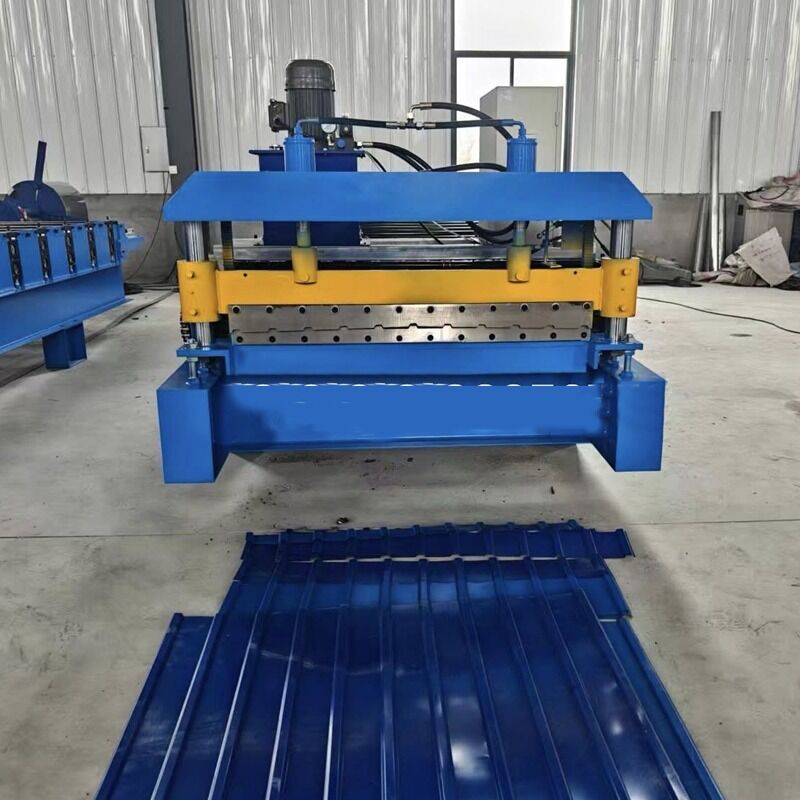

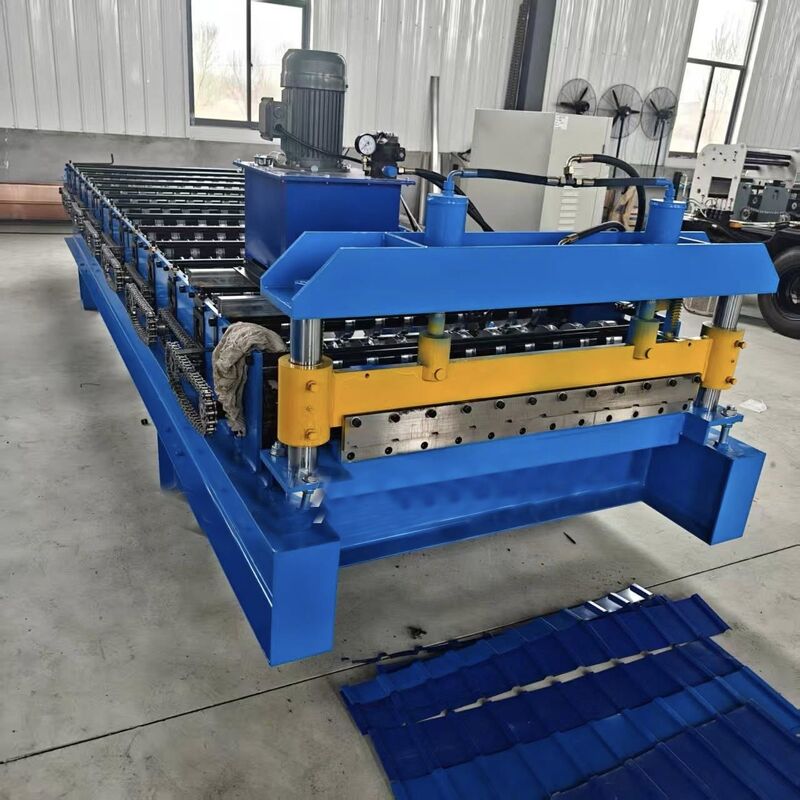

Roof Tile Roll Forming Machine
Advanced 380V 50HZ 3P rib panel roll forming machine designed for high-quality steel roofing sheet production. This precision-engineered equipment delivers reliable performance and superior output quality for modern roofing applications.
Product Overview
The Roof Tile Roll Forming Machine is an advanced and efficient piece of equipment designed specifically for the production of high-quality tile roofing sheets. Engineered with precision and durability in mind, this machine ensures consistent output and superior product quality, meeting the demands of modern roofing applications.
Featuring 11 meticulously arranged roller stations, the machine shapes metal sheets into desired tile roofing profiles with exceptional accuracy. The gradual forming process prevents material deformation, enhancing both aesthetic appeal and structural integrity of the finished roofing sheets.
Constructed with high-quality 45# steel rollers featuring hard chrome coating, the machine offers excellent resistance to wear and corrosion. This durable construction ensures long-term precision and efficiency while reducing maintenance requirements.
Key Features
- Product Name: Roof Tile Roll Forming Machine
- Cutting Mode: Hydraulic Cutting for precise and efficient operation
- Roller Stations: 11 Stations ensuring accurate shaping of roof tiles
- Forming Speed: 8-15 meters per minute for high productivity
- Weight: 4 Tons, providing stability during the forming process
- Cutting Tolerance: ±2mm for consistent and reliable cuts
- Suitable for producing various profiles as a roof metal sheet machine
- Ideal zinc roofing sheet making machine for durable and high-quality roofing materials
- Efficient and durable design tailored for roof tile roll forming machine applications
Technical Specifications
| Parameter |
Specification |
| Cutting Mode |
Hydraulic Cutting |
| Material |
Galvanized Steel, Color Steel, Etc. |
| Forming Speed |
8-15m/min |
| Weight |
4T |
| Voltage |
380V/50Hz/3Phase |
| Shaft Diameter |
70mm |
| Width |
1000mm, 1250mm (can be customized) |
| Drive Mode |
Chain Drive |
| Power |
5.5KW |
| Thickness |
0.3-0.6mm |
Applications
The FMS Roof Tile Roll Forming Machine is widely used in the production of metal roofing sheets, making it essential for manufacturers specializing in roofing materials. It is particularly suitable for fabricating IBR roof sheet profiles, popular in commercial and residential roofing projects due to their strength and ease of installation.
With precise cutting tolerance of ±2mm and durable 45# steel rollers with hard chrome coating, the machine guarantees accurate and long-lasting roofing panels while reducing material waste and enhancing overall production efficiency.
Customization Options
Brand Name: FMS
Model Number: roof tile roll forming machine
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Naked with Plastic Film
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 20 Set /Month
Material: Galvanized Steel, Color Steel, Etc.
Size: 6.8*1.4*1.5m
Roller Stations: 11 Stations
Control System: PLC Control System
Roller Material: 45# Steel, Hard Chrome Coated
Support & Services
Our Roof Tile Roll Forming Machine is supported by comprehensive technical support and after-sales services to ensure optimal performance and customer satisfaction. We provide detailed installation guidance, operation training, and maintenance instructions to help users maximize the machine's efficiency and lifespan.
Our technical support team is available to assist with troubleshooting issues, providing timely solutions to minimize downtime. We offer regular software updates, technical consultations, and supply genuine spare parts and accessories to maintain the machine's quality and reliability over time.
Packing & Shipping
The Roof Tile Roll Forming Machine is carefully packaged to ensure perfect condition upon arrival. Each machine is securely wrapped with protective materials and components are disassembled and packed in sturdy wooden crates or metal frames for stability and protection against external impacts.
We offer multiple shipping options including sea freight, air freight, and land transportation. All necessary export documentation and customs clearance support are provided to ensure a smooth shipping process.
Frequently Asked Questions
What is the brand and model of the roof tile roll forming machine?
The roof tile roll forming machine is manufactured by FMS and the model number is roof tile roll forming machine.
Where is the roof tile roll forming machine made?
The machine is made in China.
What certifications does the roof tile roll forming machine have?
The machine is CE certified, ensuring it meets European safety and quality standards.
What is the minimum order quantity and price for the roof tile roll forming machine?
The minimum order quantity is 1 set, and the price is negotiable depending on the order and specifications.
What are the payment terms and delivery time for this machine?
Payment terms accepted are T/T and L/C. The delivery time is approximately 45 days after order confirmation.
How is the roof tile roll forming machine packaged for shipping?
The machine is packaged naked with plastic film to protect it during transport.
What is the supply ability for the roof tile roll forming machine?
The supply ability is 20 sets per month, ensuring timely availability for orders.
