Place of Origin:
CHINA MAINLAND
Brand Name:
FMS
Certification:
ISO CE
Model Number:
Double Layer

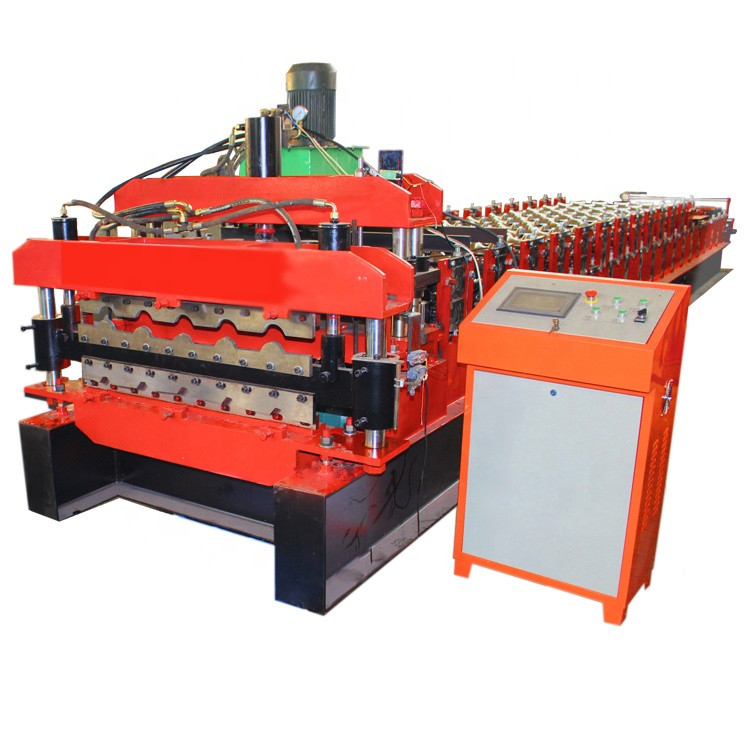

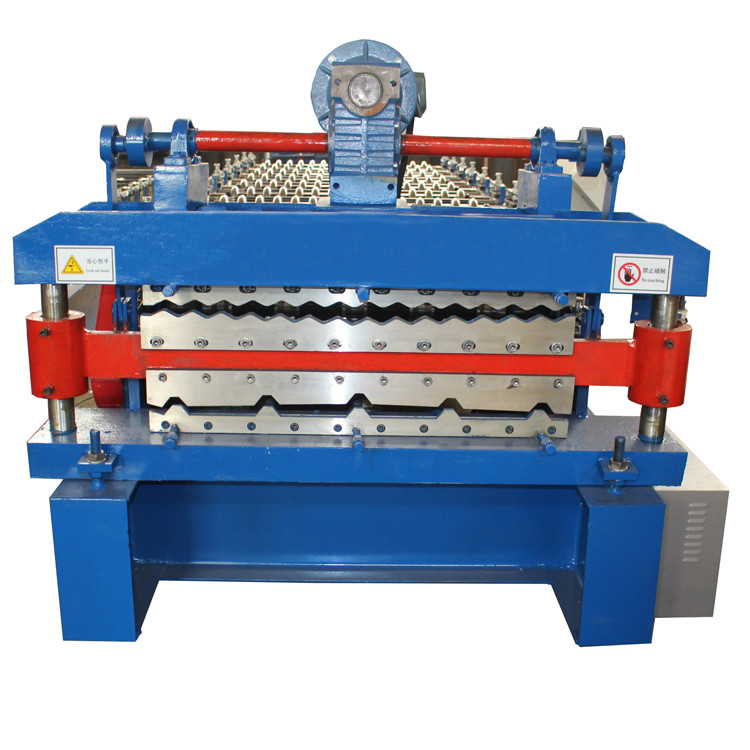

Double Layer Roofing Sheet Roll Forming Machine Aluminium Roofing Sheets Machines
Double Layer Roofing Sheet Roll Forming Machine Aluminium Roofing Sheets Machines cost is mainly producing steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
|
Double Layer Roofing Sheet Roll Forming Machine
|
IBR roofing sheet making machine
|
Remark
|
|
Feed frame roller
|
Stainless Steel
|
|
|
Machine base structure
|
300H steel welded
|
|
|
Machine architecture
|
Middle plate
|
14mm thick
|
|
Drive mode
|
Chain drive
|
|
|
Rollers material
|
45# steel
|
Surface hard chromium plating
|
|
Shaft diameters
|
+70mmSolid shafts
|
|
|
Shaft material
|
45# steel
|
|
|
Motor power
|
5.5kw
|
|
|
Forming speed
|
0-20m per minute
|
|
|
Power
|
380v 50hz 3Phase
|
Or as customer request
|
Application
The tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls, and large-span steel structure houses. It can be made of GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and it has a service life of 10-15 years.
Advantage
In general, this version is used for roofs, walls, and internal and external wall decoration of buildings, warehouses, special buildings, and long-span steel structure houses. The features of the product include a light weight, high strength, rich colors, convenient and fast construction, earthquake resistance, fireproof, rainproof, and long service life. Protection functions have been widely used.
