Name: High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Corrugated
Price: 16,000.00 USD
Availability: InStock

Home > products > Roof Tile Roll Forming Machine >

High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting

380v corrugated sheet roll forming machine

3phase corrugated sheet roll forming machine

high accuracy corrugated sheet rolling machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Model Number:

Corrugated

Request A Quote

Product Details

Product Name:

High Accuracy Hydraulic Cutting Corrugated Sheet Roll Forming Machine

Cutting:

Hydraulic Cutting

Hydraulic Station Power:

3 Kw

Weight:

3.5T

Roller Material:

380V 3 Phase 50Hz

Feeding Width:

0.3-0.8mm

Material Thickness:

8-15 M/min

Appearance Size:

5500mm*1500mm*1300mm

Highlight:

380v corrugated sheet roll forming machine

3phase corrugated sheet roll forming machine

high accuracy corrugated sheet rolling machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

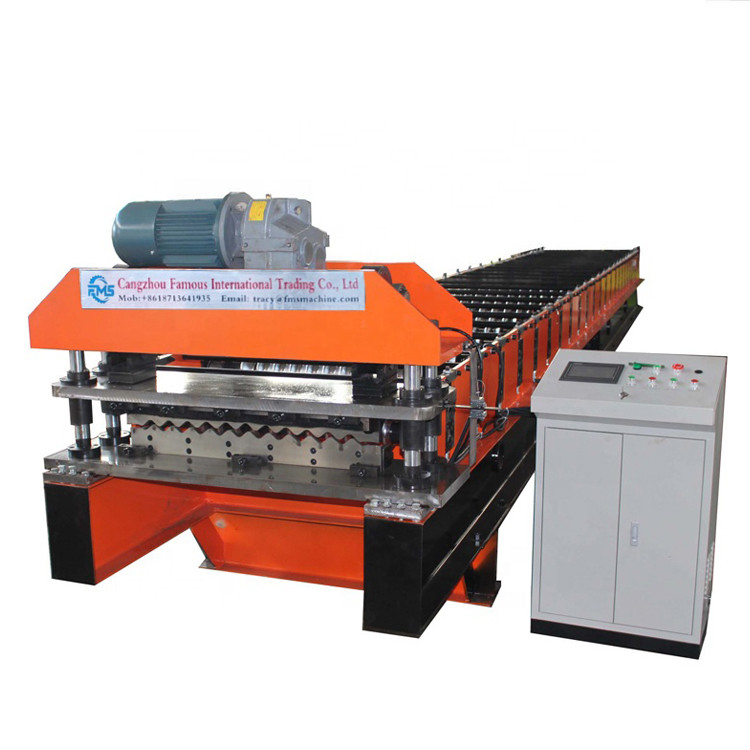

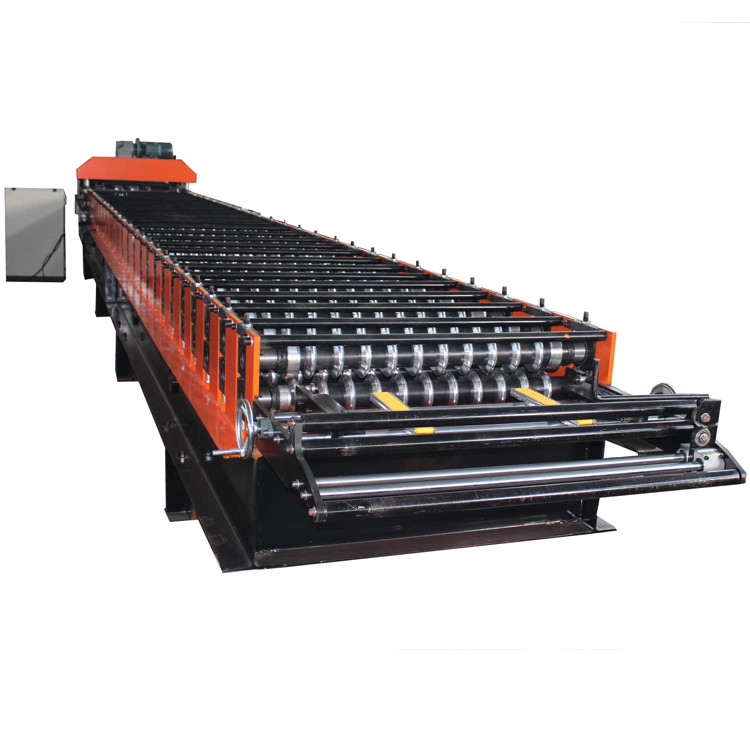

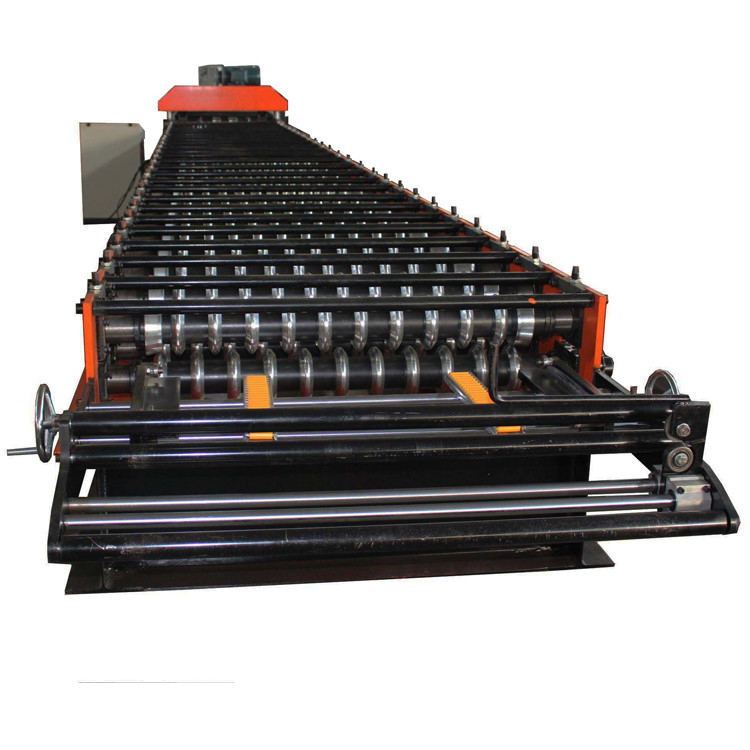

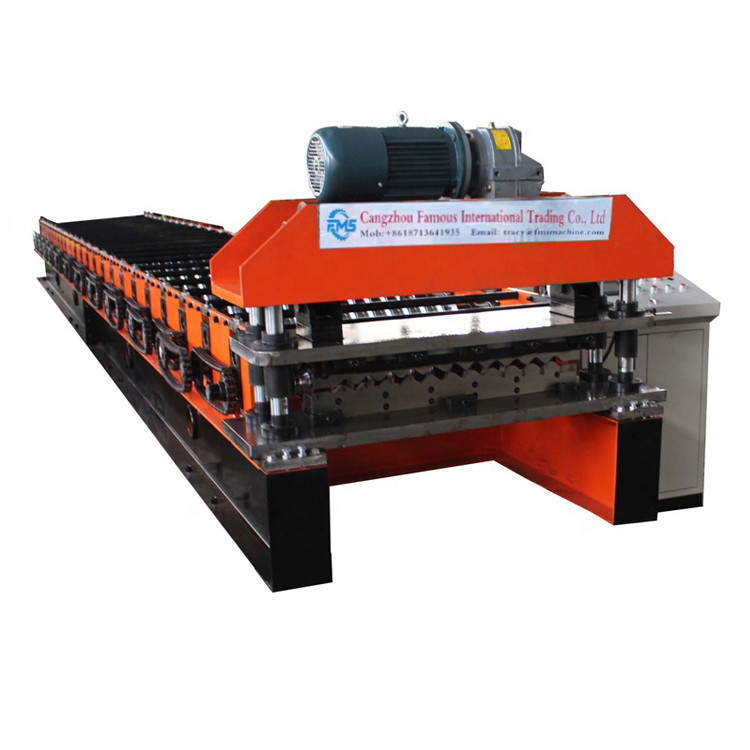

Corrugated Sheet Roll Forming Machine Wave type with high Accuracy cutting

Through a series of steps, this type of corrugated machine produces metal roofing sheets from GI/PPGI. As the motor speed , the length and quantity are controlled by the PLC system, resulting in continuous automatic production, which is ideal for cold roll forming.

Specification

ding host	Model	roof tile making machine
	Forming machine size	6500mm1500mm1300mm
	weight	3.5T
	frame structure	Frame welded
	Roll station	13 row
	Shaft materials	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	5.5 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	18mm

Application

The products produced by Roll Forming Machine have the characteristics of light weight, high strength, large bearing, and good shock resistance, and are widely used in the field of high -rise steel structures.

Advantage

Wave -type tile machine equipment includes: whole machine, PLC computer control system, dedicated shear equipment, professional hydraulic system. Color steel pressure -type equipment characteristics and use: The voltage plate formed by the company's color steel tile equipment rolling plate, which is solemn and elegant, beautiful and novel, and the appearance is flat, the wavelets are uniform, the utilization rate is high, the intensity is high, the production automation is high, high degree of production automation The cost is low and durable. Product owners are applied to large and medium -sized enterprises civilian buildings, such as factory buildings, garages, airplanes, stadium exhibition halls, movie theaters, etc.

High Accuracy Corrugated Sheet Roll Forming Machine Hydraulic Cutting 0
