Glazed Tile Eccentric Arc Roofing Sheet Roll Forming Machine For Ppgi Gi

Glazed Tile Eccentric Arc Roofing Sheet Roll Forming Machine For Ppgi Gi

ppgi roofing sheet roll forming machine

gi roofing sheet roll forming machine

ppgi glazed tile roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Contact Us
Request A Quote
Product Details
Product Name:
Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span Machine
Usage:
Roof, Wall
Suitable Material:
PPGI Gi
Weight:
5000 Kg
Speed:
3-8m/min
Roller Material:
380V 50Hz 3phases
Motor:
4kw
Thickness:
0.3-0.8mm
Specification:
3000*1300*600mm
Rollers:
45# Steel As Customer Require
Highlight:

ppgi roofing sheet roll forming machine

,

gi roofing sheet roll forming machine

,

ppgi glazed tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
Product Description

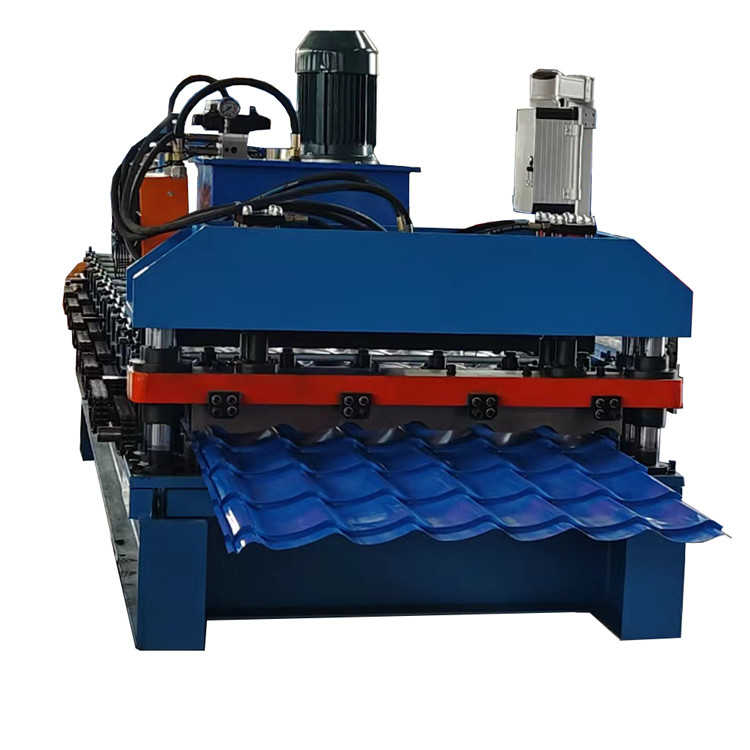

Glazed tile Eccentric arc roofing sheet roll forming machine



   Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.
the 3D Cutting Glazed roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world




Specification

Steel roofing tile glazed tile roll forming machine Step tile sheet machine
1 Main frame 250mm H-sections
2 Side board thickness 14mm
3 Main motor power 4kw
4 Power supply 380V 50Hz 3phases
5 Shaft number 3 rows
6 Shaft material Carbon steel 45#
7 Shaft diameter 70mm
8 Rolling wheel material Carbon steel 45# with chrome plated
9 Hydraulic pump motor power 4kw
10 Chain size 33mm
11 Control system PLC Delta inverter
12 Production rate 4-8m/min
13 Feeding tiles Formed tiles
14 Finished specification According to the formed tiles
15 Overall size 3000*1300*600mm
16 Total weight About 0.5 Ton

*Parameters above is the standard configuration

*Parameters can be designed as per your special requests.



Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
