Ppgi Glazed Tile Roll Forming Machine Hydraulic Press And Cutting

Ppgi Glazed Tile Roll Forming Machine Hydraulic Press And Cutting

7.5 kw glazed tile roll forming machine

3 m/min glazed tile roll forming machine

ppgi glazed sheet roll forming machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Contact Us
Request A Quote
Product Details
Product Name:
PPGI Hydraulic Press And Cutting Glazed Tiles Roofing Sheet Roll Forming Machine
Width:
1-3 M/min
Weight:
4000 Kg
Roller Material:
380V 50Hz 3phases
Roller Material:
45# Steel
Forming Motor Power:
7.5 KW
Specification:
8500 *1300*1200 Mm
Power:
7.5 KW
Highlight:

7.5 kw glazed tile roll forming machine

,

3 m/min glazed tile roll forming machine

,

ppgi glazed sheet roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
Product Description

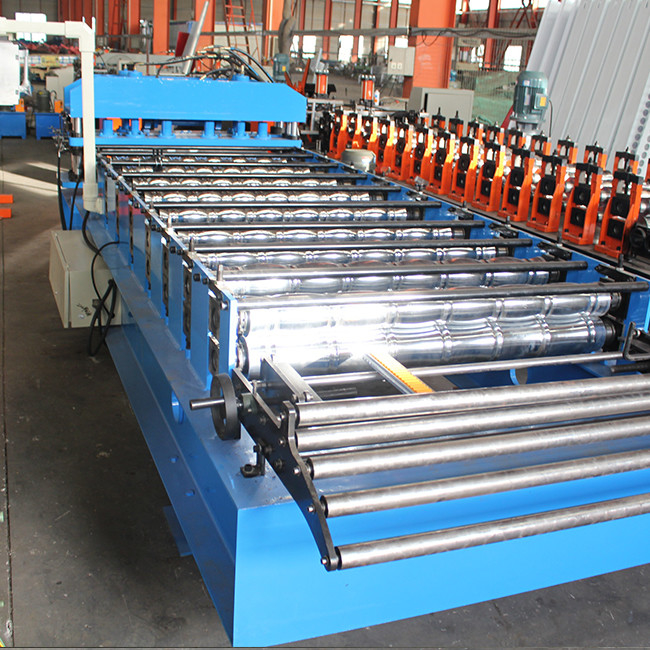

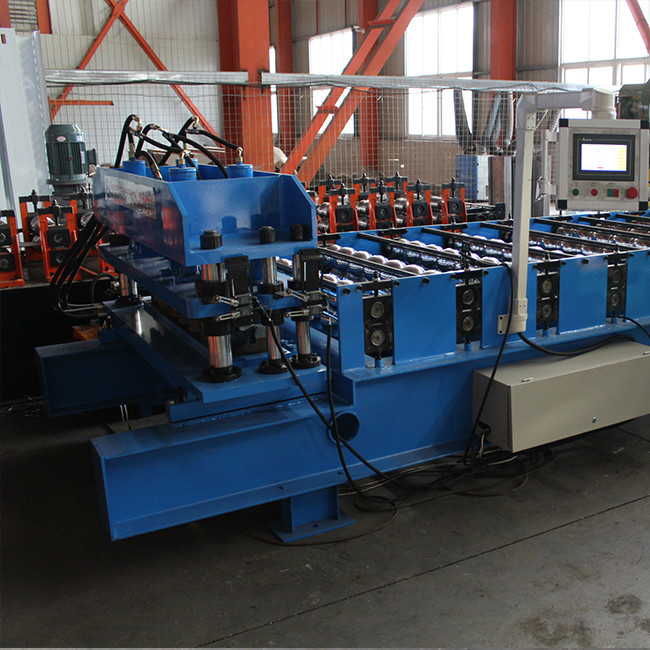

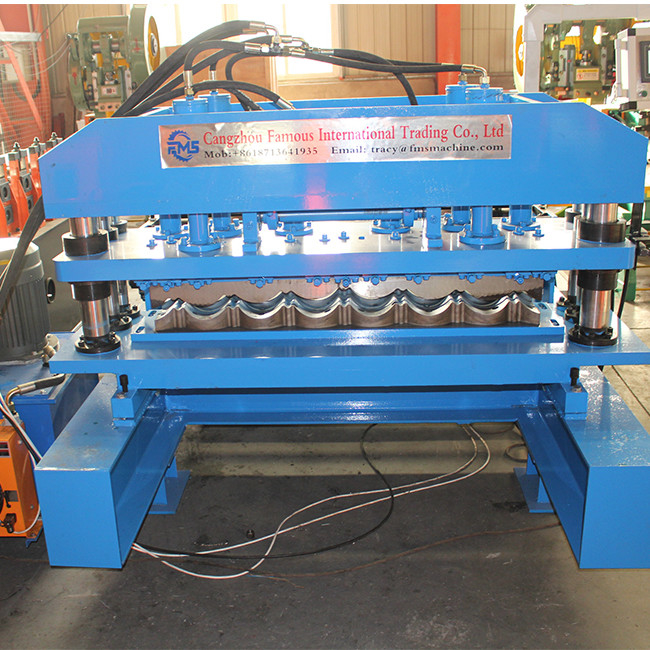

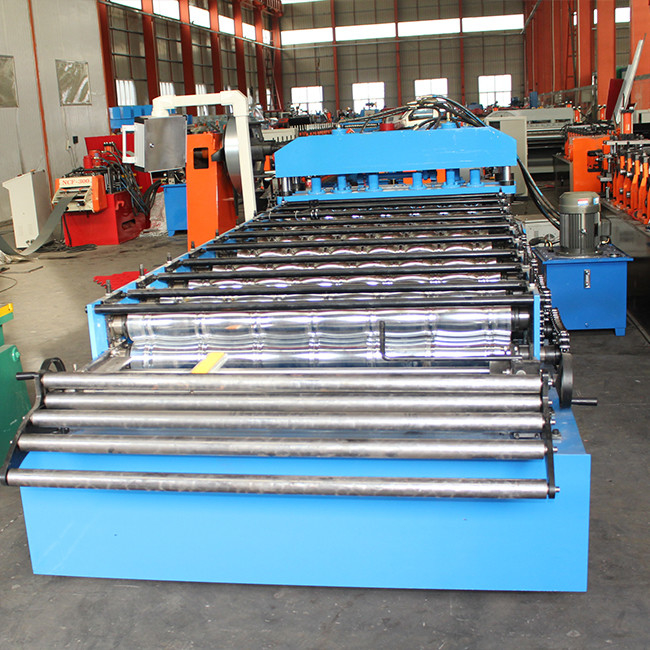

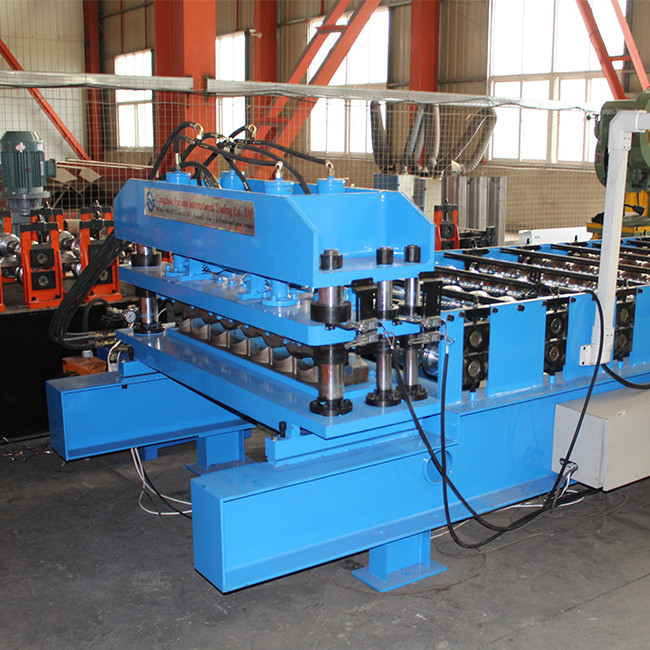

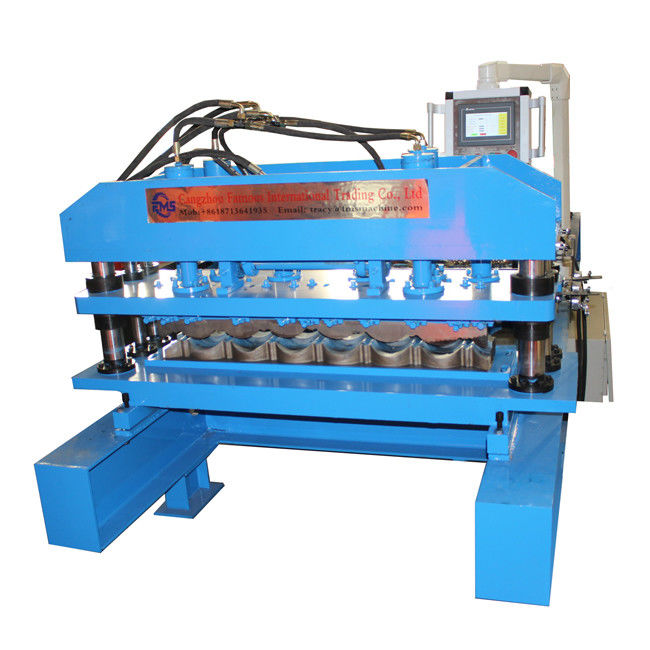

Glazed Tile Step Tile Roll Forming Machine Color Steel Roof Making Machine​




Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.
the 3D Cutting Glazed roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world


Specification

Suitable material
Strip steel
Working speed
1- 3 m/min
Main motor power
7.5 kw
Hydraulic station power
4 kw
Thickness of material
0.3-0.8 mm
Roller station
16 stations
Driving mode
Chain
Electric tension
380 V /3 phase/ 50 HZ
Material of roller
45# forged steel
Material of cutting
Cr12





Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
