| Weight: | 7T | Shaft Diameter: | 70mm |
|---|---|---|---|
| Control System: | PLC Control System | Roller Stations: | 13 /13/14 Stations |
| Voltage: | 380V/50Hz/3Phase | Cutting Tolerance: | ±2mm |
| Drive Mode: | Chain Drive | Width: | 985mm,1000mm,1250mm. |
| High Light: | 380v50hz roof tile roll forming machine,985mm roof tile roll forming machine,3 phase tile roll forming machine |
||

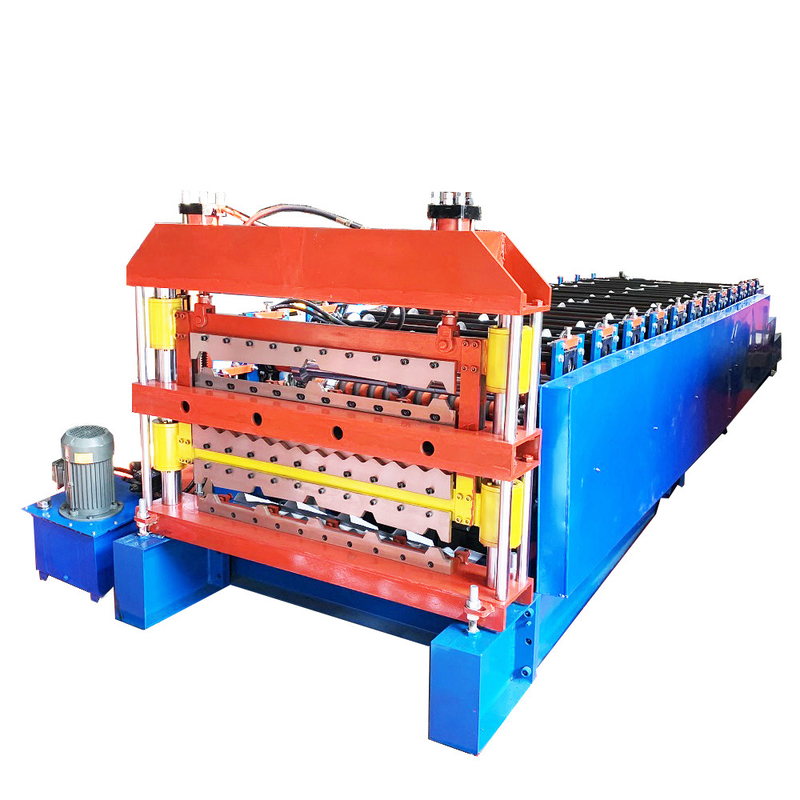

The Roof Tile Roll Forming Machine is an efficient machine designed to produce high-quality roof tiles. It is made of 45# steel and hard chrome-coated metal, which ensures its durability for long-term use. The thickness of the tiles produced by this machine can range from 0.3 to 0.8 mm. It is equipped with a PLC control system and a chain drive for reliable operation. The machine is suitable for processing aluminum, galvanized steel and color steel, among other materials, to make ibr roof sheets or metal roof tiles. It is the perfect choice for roof tile manufacturing projects.
| Parameter | Value |
|---|---|
| Type | Cold Roll Forming Machine, Roof Tile Roll Forming Machine, Glazed Tile Roll Forming Machine |
| Voltage | 380V/50Hz/3Phase |
| Size | 7.5*1.5*1.75m |
| Roller Stations | 13 /13/14 Stations |
| Control System | PLC Control System |
| Shaft Diameter | 70mm |
| Roller Material | 45# Steel, Hard Chrome Coated |
| Drive Mode | Chain Drive |
| Power | 4KW |
| Weight | 7T |
| Forming Speed | 8-15m/min |
FMS Roof Tile Roll Forming Machine is a kind of glazed tile roll forming machine, which is perfect for producing a variety of roof tiles. It is produced by FMS, with model number roof tile roll forming machine, and is certified with CE. With minimum order quantity of 1 set, the price is negotiable. The packaging details are naked with plastic film, and the delivery time is 45 days. The payment terms are T/T, L/C. The supply ability is 20 sets per month. The cutting mode is hydraulic cutting, and the cutting tolerance is ±2mm. The roller material is 45# steel, hard chrome coated, and the thickness is 0.3-0.8mm. The voltage is 380V/50Hz/3Phase.
The FMS Roof Tile Roll Forming Machine is durable and reliable, with high efficiency and precision. It is widely used in roofing applications, and its excellent performance makes it the best choice for many industrial, residential, and commercial projects. With its simple operation and easy maintenance, it is an ideal choice for customers who are looking for an economical and reliable roof tile roll forming machine.
The FMS Roof Tile Roll Forming Machine is a perfect choice for customers who are looking for a machine with high accuracy and efficiency. With its advanced features and sturdy construction, it is sure to be an excellent choice for any project. It is perfect for producing a variety of roof tiles, and its low price makes it an attractive option for customers looking for an economical and reliable glazed tile roll forming machine.
Brand Name: FMS
Model Number: roof tile roll forming machine
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Naked with Plastic Film.
Delivery Time: 45 days
Payment Terms: T/T, L/C,
Supply Ability: 20 Set /Month
Thickness: 0.3-0.8mm
Cutting Tolerance: ±2mm
Material: Aluminum, Galvanized Steel, Color Steel, Etc.
Roller Stations: 13/13/14 Stations
Cutting Mode: Hydraulic Cutting
FMS Roof Tile Roll Forming Machine is the best choice for producing tile roofing sheet. It adopts advanced cold roll forming technology to form metal sheet into various shapes. The machine is mainly used to produce roof and wall panels for industrial and civil buildings such as warehouses, workshops, and residences. The roof tile roll forming machine is highly efficient, and it produces high-quality roofing sheets with excellent performance. It is an ideal choice for tile roofing sheet making machine.
We provide complete technical support and service for all our Roof Tile Roll Forming Machines. Our technical support team is available 24/7, and can assist with any questions or issues you may have.
We offer on-site service for installation and maintenance, as well as remote troubleshooting and support. Our technicians are highly knowledgeable and experienced, and can help you get the most out of your Roof Tile Roll Forming Machine.
We provide regular maintenance and inspection services, and can provide parts and components to help ensure your machine runs reliably and smoothly.
We are committed to providing exceptional service and support to all of our customers, and are here to help you with any questions or concerns you may have.
Packaging of Roof Tile Roll Forming Machine is done with the utmost care to ensure that the product is not damaged during transportation. It is packaged in wooden crates or bags, depending on the size and weight of the product. The product is then secured with polyethylene tape and fastening straps to ensure that it is protected during transit.
Shipping of Roof Tile Roll Forming Machine is done via ground, air or sea transport. The shipping route and method is chosen depending on the destination, size and weight of the product. All shipments are tracked and monitored to ensure that they reach their destination in a timely manner.
A: FMS roof tile roll forming machine is a metal forming machine used to produce roof tiles with FMS brand.
A: FMS roof tile roll forming machine is made in China.
A: Yes, FMS roof tile roll forming machine comes with a CE certification.
A: The minimum order quantity for FMS roof tile roll forming machine is 1 set.
A: The price of FMS roof tile roll forming machine is negotiable.
