Width: | 1000mm,1250mm. | Size: | 6.5*1.3*1.2m |
---|---|---|---|
Cutting Mode: | Hydraulic Cutting | Forming Speed: | 8-15m/min |
Power: | 4KW | Voltage: | 380V/50Hz/3Phase |
Drive Mode: | Chain Drive | Cutting Tolerance: | ±2mm |
High Light: | 1000mm ibr roof sheet making machine,aluminum ibr roof sheet making machine,ibr roofing tile roll forming machine |

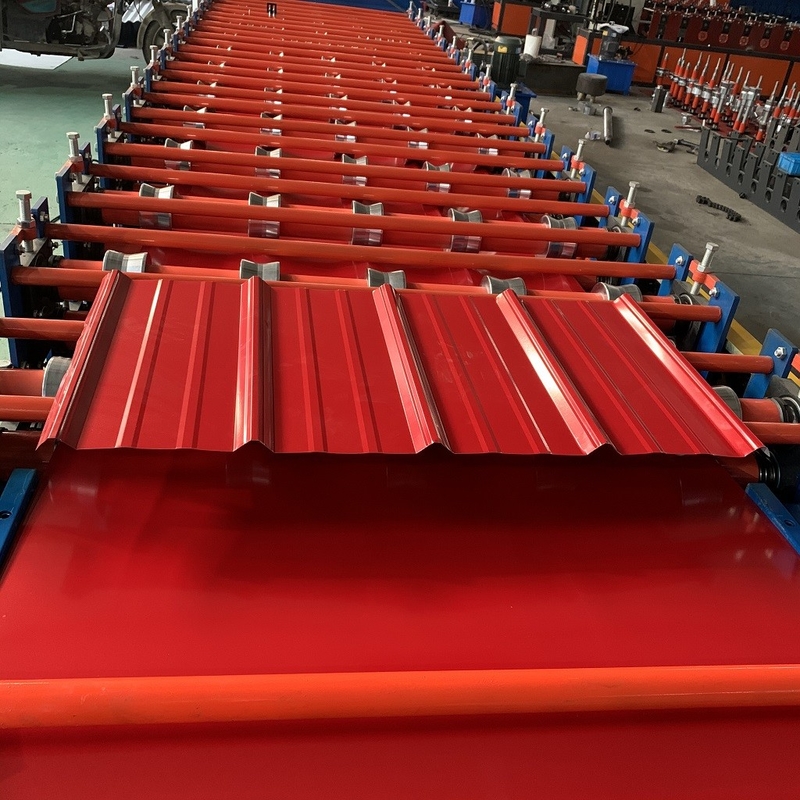

The Roof Tile Roll Forming Machine is a cold roll forming machine designed for producing roof tiles out of aluminum, galvanized steel, color steel and other materials. It operates on a voltage of 380V/50Hz/3Phase, featuring a PLC control system and 13 to 18 roller stations. It can form roof tiles with a thickness ranging from 0.3 to 0.8mm. The Roof Tile Roll Forming Machine is one of the most reliable cold roll forming machines available in the market today.
Parameter | Specification |
---|---|
Control System | PLC Control System |
Weight | 3.5T |
Roller Material | 45# Steel, Hard Chrome Coated |
Forming Speed | 8-15m/min |
Shaft Diameter | 70mm |
Voltage | 380V/50Hz/3Phase |
Cutting Tolerance | ±2mm |
Power | 4KW |
Roller Stations | 13-18 Stations |
Cutting Mode | Hydraulic Cutting |
FMS Roof Tile Roll Forming Machine is ideal for producing roofing sheets with aluminum, galvanized steel, color steel and other metal materials. It features high precision, good stability and high throughput. The machine has 13-18 roller stations and the width of the sheets can be adjusted from 1000mm to 1250mm. It is driven by chain and the shaft diameter is 70mm. It is CE certified and the minimum order quantity is 1 set. The price is negotiable and the packing details are naked with plastic film. The delivery time is 45 days and payment terms include T/T, L/C and other options. The supply ability is up to 20 sets per month.
FMS roof tile roll forming machine is suitable for producing tile roofing sheets for various industrial and commercial applications. It is widely used in the construction of industrial buildings, warehouses, workshops, sports stadiums, shopping malls, villas, hotels, etc. It is very efficient and cost-effective, making it a perfect choice for roofing sheet making projects.
FMS Roof Tile Roll Forming Machine is used for producing various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength. Our roof tile roll forming machine is made of high quality steel, and it has excellent performance.
We have professional engineers and technicians who are experienced in roof metal sheet machine, tile roofing sheet making machine and panel machine. We have more than 10 years experience in this field. Our roll forming machines are exported to many countries, such as Australia, Canada, USA, UAE, Russia, India, etc. Our products have been well accepted by our customers.
We offer comprehensive technical support and service for our Roof Tile Roll Forming Machine. Our technical support and service includes:
The Roof Tile Roll Forming Machine will be packaged securely in heavy-duty plywood crates, bubble wrap, and foam inserts. The crates will be closed with robust wooden pallets and plastic wrap. The crates will be clearly labeled and marked with the product name and weight.
The Roof Tile Roll Forming Machine will be shipped promptly and securely via a reliable, insured and certified air freight company. The customer will receive an email notification with tracking information once the shipment has been dispatched.
