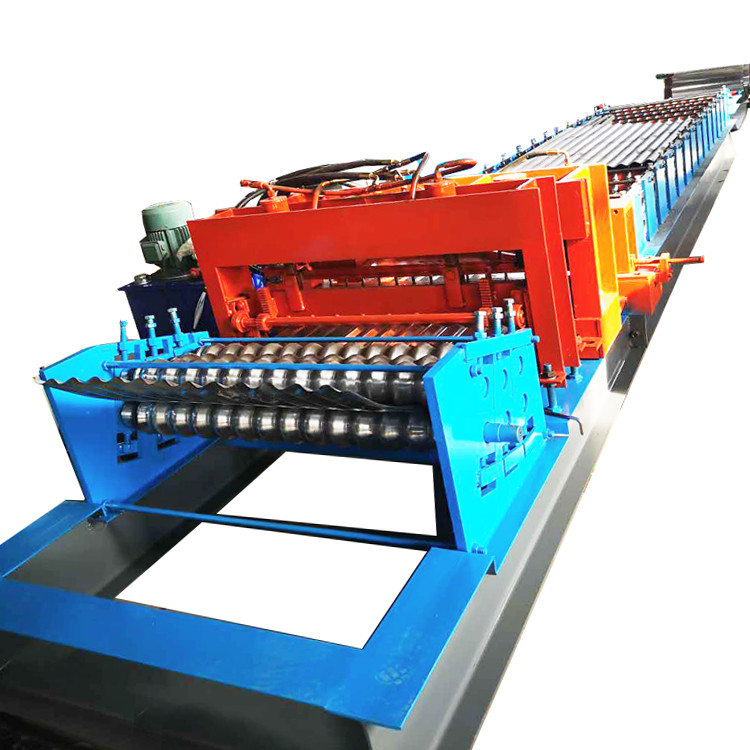

| Product Description: | Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Stee | Raw Material: | GL GI PPGL PPGI |
|---|---|---|---|
| Dimension(L*W*H): | 8.5*1.65*1.5m | Feeding Width: | 914-1450mm |
| Thinckness: | 0.9-3.5mm | Voltage: | 380V 50Hz 3phases |
| Cutting Blade Material: | Cr 12 High Grade Steel | Main Motor: | 15+5.5Kw |
| Weight: | About 12500kg | Speed: | 1-2 Pcs/min |
| High Light: | Silo Wall Sheet Roll Forming Machine,Galvanized Metal Sheet Roll Forming Machine,CE corrugated roof roll forming machine |
||
This equipment can be widely used in grain storage enterprises and food processing enterprises. It can effectively kill pests in grain piles including eggs, pupae, etc. during various growth periods. It is an indispensable and ideal storage equipment for national grain storage depots.
Main Features
1. The roll forming machine can rollform metal profile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7. One roll forming machine can produce one or two profiles.
.
Detailed Parameters:
|
Suit material
|
Gi /Carbon steel/Stainless steel
|
|
Feeding width
|
1000mm
|
|
Sheet thickness
|
0.9-3 5mm
|
|
Roller material
|
Bearing steel, heat treatment, surface polishing, hard chromium plating
|
|
Power
|
Main power 30kw+hydraulic station 22kw
|
|
Roller station
|
20 rollers
|
|
Leveling roller station
|
9 rollers
|
|
Speed
|
1-2 pcs/min
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
