Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ridge Cap Metal Tile Forming Machine | Raw Material: | Galvalume, Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Thickness: | 0.25-0.8 Mm | Tile Type: | Ridge Cap |
| Color: | As Per Customer Reqeust | Motor Power: | 4KW |
| Cutting Accuracy: | ±2 Mm | Material Of Cutter: | Cr12 Mov HRC 58-62 |
| Automation Grade: | Automatic | Voltage: | 380V 50Hz 3phases Or As Your Requirement |
| High Light: | Metal Roof Tile Roll Forming Machine,Roof Tile Roll Forming Machine Automatic,Plc metal roof tile making machine |
||

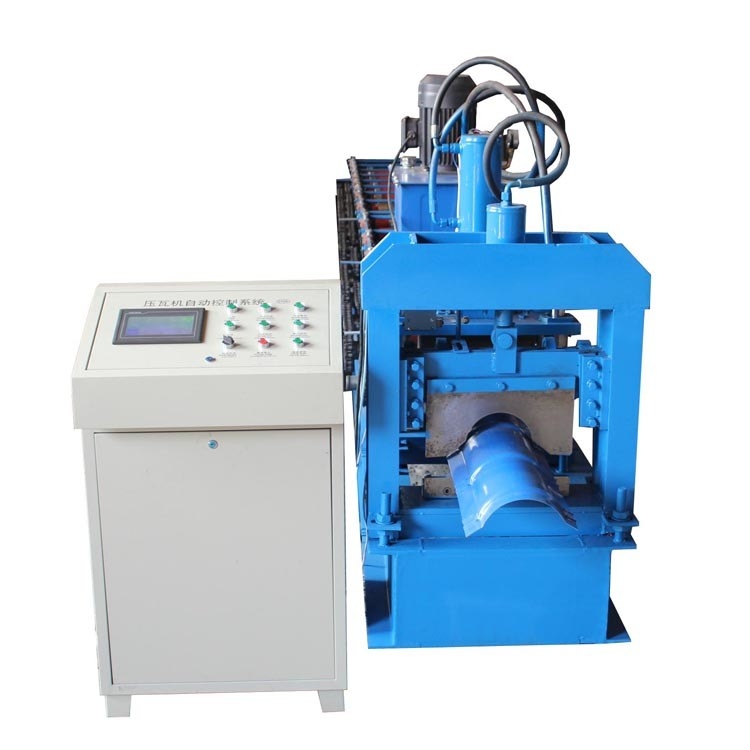

Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automatic

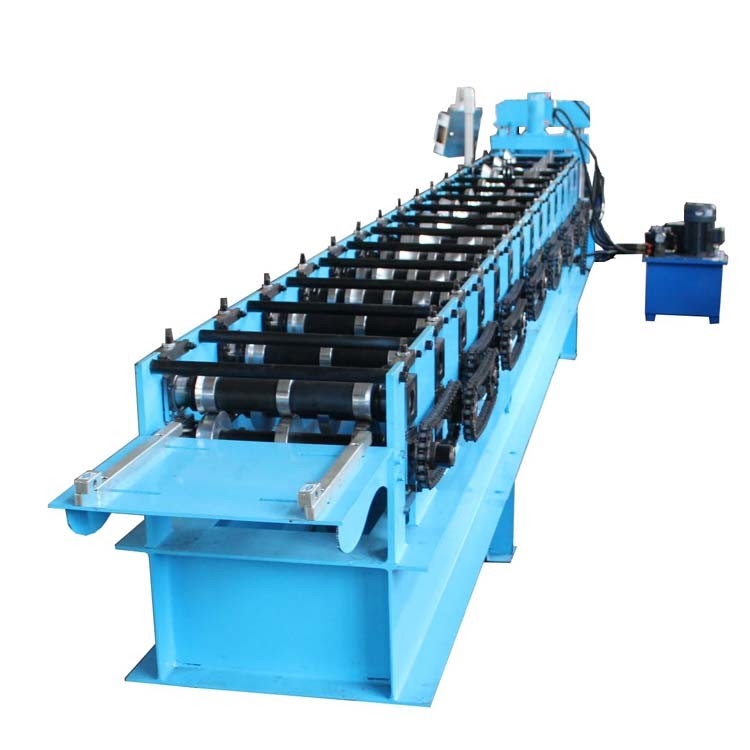

The Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automaticand is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.
Specification
|
Material Thickness
|
0.3-0.8 mm
|
|
Working Speed
|
8-15 m/min
|
|
Frame
|
welded with 350H section steel
|
|
Material of Roller
|
45# steel quenching process and chrome coated
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
4 KW
|
|
Electrical Hydraulic Station Power
|
3 KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Driving Mode
|
Single chain 1 inch
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
