Product Details:
Payment & Shipping Terms:
|
| Product Name: | Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Corrugated Making Machine | Tile Type: | Galvanized Steel Or PPGI |
|---|---|---|---|
| Production Capacity: | 8-20 M/min | Weight: | 4500 Kg |
| Roller Material: | 380V 3phase 50Hz | Feeding Width: | 0.4-0.8mm |
| Coil Width Before Rolling: | 1200mm, 1220mm, 1250mm | Appearance Size: | 6*1.5*1.3 M |
| Roller Material: | 45# Steel With 0.05mm Chrome | Cutting: | Hydraulic Cutting |
| High Light: | Hydraulic corrugated steel sheet making machine,15m/Min steel sheet making machine,8m/Min steel sheet making machine |
||

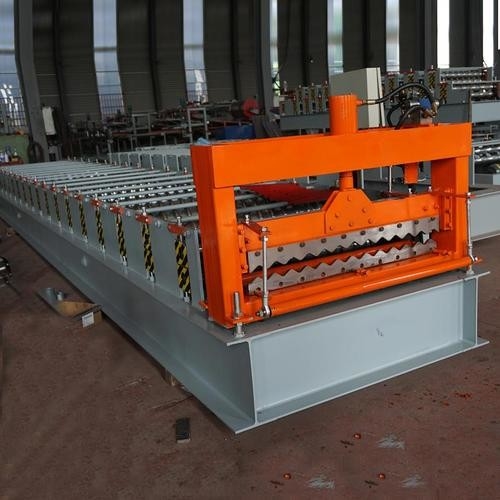

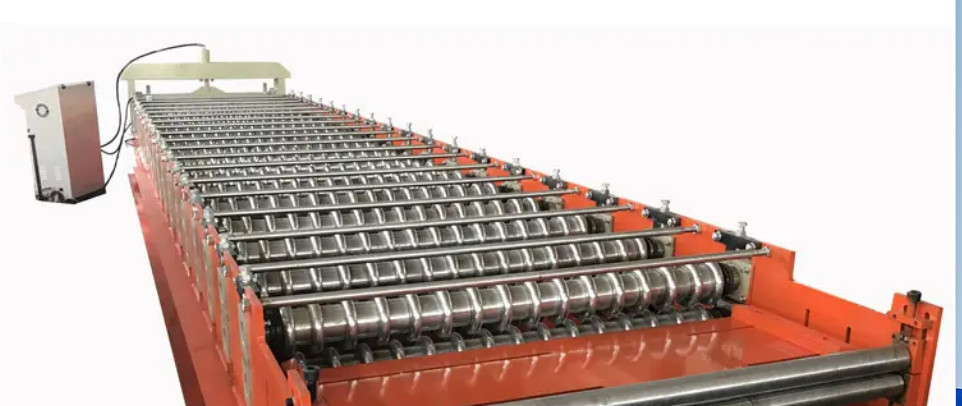

8-15m/Min Color Steel Corrugated Wave Shape Roofing Steel Sheet Making Machine
|
NO.
|
Item
|
Specification
|
|
Material
|
Raw material
|
Galvanized steel or PPGI
|
|
Thickness
|
0.4-0.8 mm
|
|
|
Machine
|

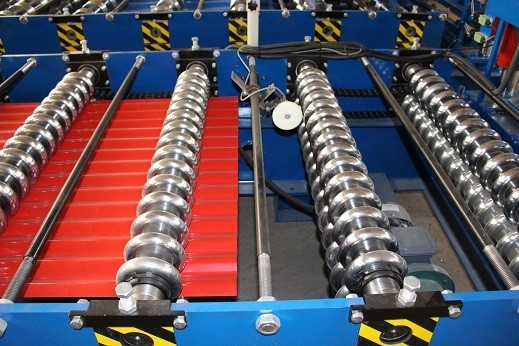

Roller station
|
12 or depend on customer' drawing
|
|
Shaft diameter
|
70 mm
|
|
|
Solid shaft material
|
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment
|
|
|
Roller material hardness 30-40 HRC
|
Cr12
|
|
|
Machine size
|
About 6*1.5*1.3 m
|
|
|
Machine weight
|
About 5 tons
|
|
|
Machine color
|
As customer need
|
|
|
Working speed
|
8-20 m/min
|
|
|
Cutter
|
Hardness
|
50-65 HRC
|
|
Cutting tolerance
|
± 1mm
|
|
|
Material
|
Cr12
|
|
|
Operate
|
Hydraulic cutting
|
|
|
Power
|
Driving way
|
Chain 1 inch
|
|
Main motor
|
5.5 KW
|
|
|
Pump motor for cutter
|
3 KW
|
|
|
Voltage
|
380V/50HZ, 3P or Customized as customer' request
|
|
|
|
PLC brand
|
Delta made in Taiwan
|
|
Screen
|
Touchable screen
|
|
|
Language
|
Chinese and English or add customer need language
|
|
|
|
Operation
|
Manual
|
|
Weight capacity
|
5 Tons
|
|
|
Price
|
Free as gift
|
|
|
Receive table
|
Operation
|
Manual
|
|
Length
|
3 m
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% TT in advance
60% TT before the shipment and after inspection
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
