Trapezoid And Corrugated Double Layer Roll Forming Machine 30 M/Min

Trapezoid And Corrugated Double Layer Roll Forming Machine 30 M/Min

Trapezoid double layer forming machine

Corrugated double layer forming machine

30m/min Double Layer Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Double Layer

Contact Us
Request A Quote
Product Details
Product Name:
Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900 High Quality
Dimension(L*W*H):
7.5m*1.6m*1.4m
Weight:
6300 Kg
Voltage:
380/50Hz/3PH Or Customized
Feeding Width:
1200mm
Production Capacity:
30 M/min
Raw Material:
PPGI PPGL GI GL
Cutter Material:
Cr12/Cr12 Mov
Highlight:

Trapezoid double layer forming machine

,

Corrugated double layer forming machine

,

30m/min Double Layer Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

Trapezoid And Corrugated Double Layer Roll Forming Machine



Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900 High Quality

​  Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.



Tile making machine finished panel
When you make order, we will as the design for we confirmed before, measure all for you, once the machine finished.
1. This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. We also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.



Specification

Dimensions
7.5m*1.6m*1.4m
hydraulic transmission
15 m/min
Main frame material
300H Steel
Thickness of plate in equipment
14mm
Roll forming row number
high layer:9 row (900), under layer: 11 row (840)
Forming shaft material
45# steel quenching treatment
Molding shaft dimension
Diameter of 70
Roll shape material
45# steel with hard chrome plating
Number of rollers
11rollers
Power
6kw
Main motor power
4kw
Forming speed
8-10 m/min
Material thickness
0.3-0.8mm

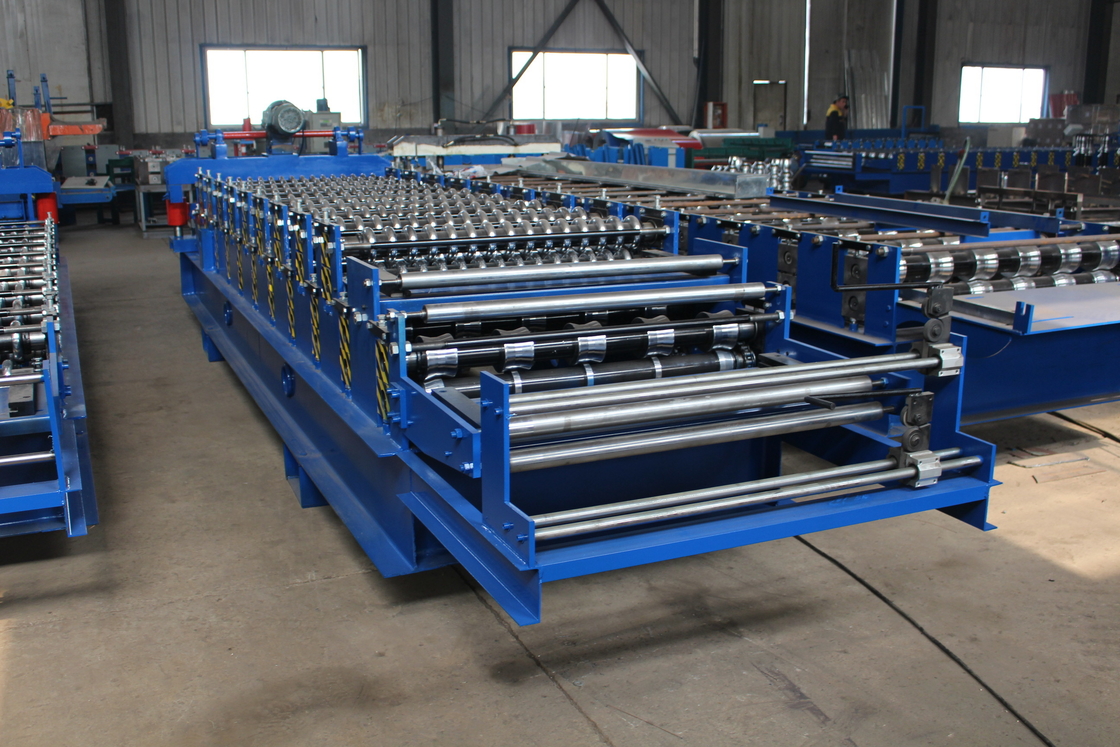

Trapezoid And Corrugated Double Layer Roll Forming Machine 30 M/Min 0

Trapezoid And Corrugated Double Layer Roll Forming Machine 30 M/Min 1

Installation


  During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.



Guarantee



  The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).



Payment terms



  40% in advance

  60% is paid before shipping
