Product Details:
Payment & Shipping Terms:
|
| Product Description: | Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line | Production Capacity: | 8-15 M/min |
|---|---|---|---|
| Dimension(L*W*H): | 4000mmx2000mmx1500mm | Roller Material: | High-grade 45# Stee |
| Control System: | PLC | Rolling Thinckness: | 0.8-1.2mm |
| Voltage: | 380V 50Hz 3phases | Feeding Width: | 1000mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | Power: | 10kw |
| Weight: | 5000kg | ||
| High Light: | 8m/min Cold Roll Forming Machine,Embossing Cold Roll Forming Machine,PLC Cold Roll Forming Machine |
||

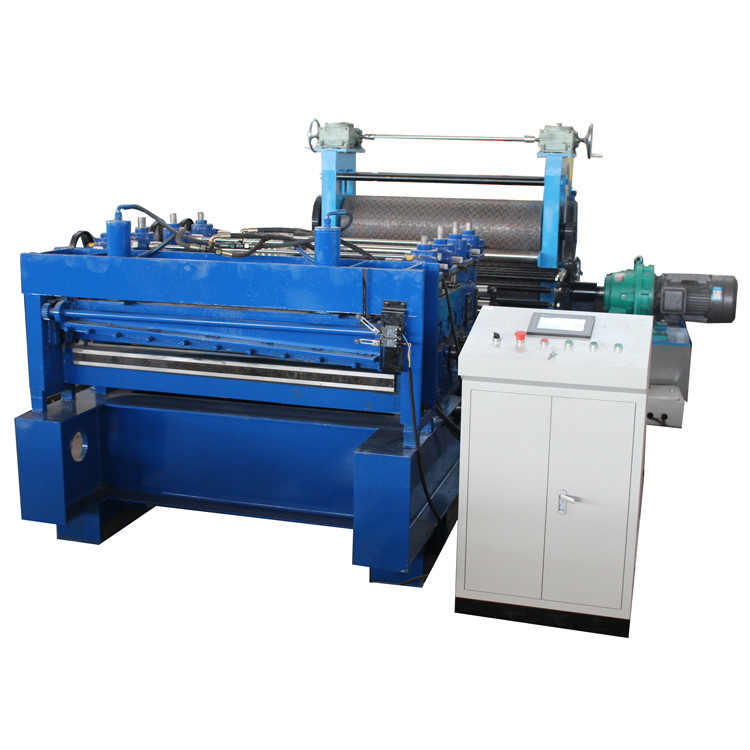

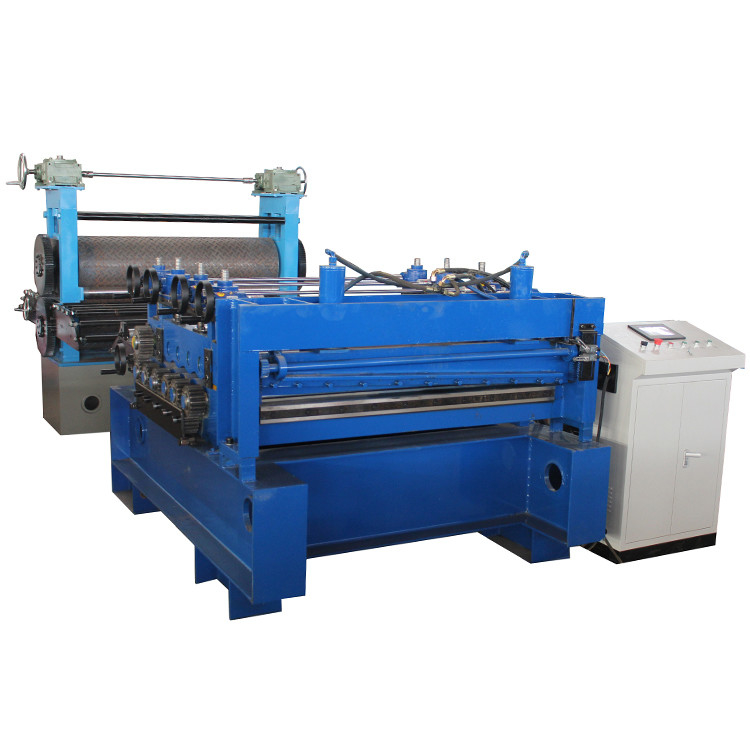

Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line, The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers,so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.
Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing,and also be formed by the full automatic by PLC controling box.The embossing profile can be customized as customer's request.
Welcome you send us the profile drawing.
Feeding table-- Embossing Machine---Leveling Device- Runout table
Detailed Parameters:
item | value |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Automatic Grade | Automatic |
| Production Capacity | 8-15M/MIN |
| Voltage | 380V 50HZ OR AS CUSTOMER REQUIRED |
| Power | 10kw |
| Dimension(L*W*H) | 4000x2000x1500mm |
| Weight | 5000kg |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |
| Automatic Grade | Automatic |
| Weight | 5000 kg |
| Voltage | 380V 50HZ OR AS CUSTOMER REQUIRED |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
