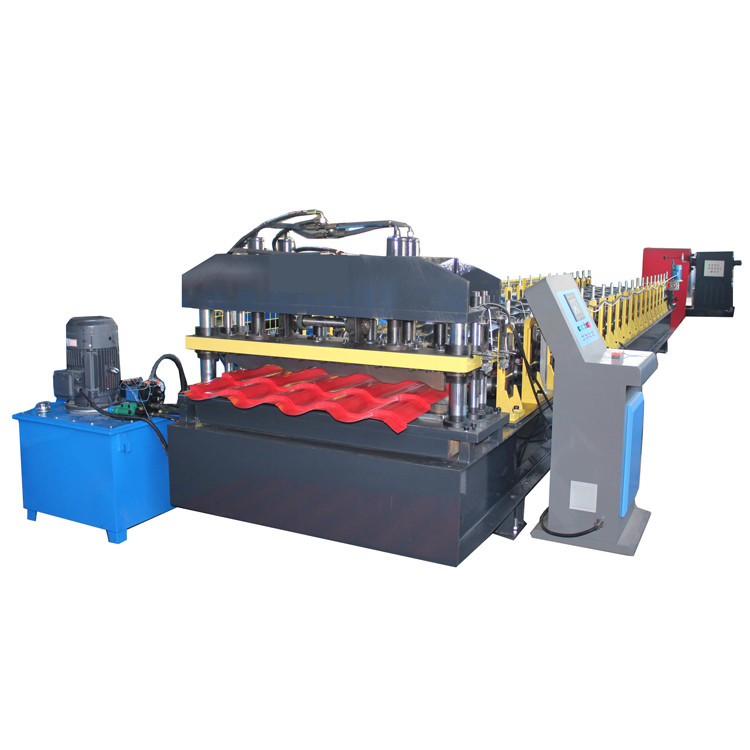

Automatic Ppgi Glazed Tile Step Tile Roll Forming Machine 10-15 M / Min High Speed

Automatic Ppgi Glazed Tile Step Tile Roll Forming Machine 10-15 M / Min High Speed​

    Automatic Ppgi Glazed Tile Step Tile Roll Forming Machine 10-15 M / Min High Speed ,

We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,

Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming

machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,

Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming

machine,roller shutter slat forming machien,etc.



Specification



Suitable material	Strip steel
Working speed	10- 15 m/min
Main motor power	4kw
Hydraulic station power	5kw
Thickness of material	0.3-0.8 mm
Roller station	16 stations
Driving mode	Chain
Electric tension	380 V /3 phase/ 50 HZ
Material of roller	45# forged steel
Material of cutting	Cr12



Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
