Product Details:
Payment & Shipping Terms:
|
| Product Name: | China Manufacturer Rib Panel Roll Forming Machine Steel Roofing Sheet Making Machine | Feeding Material: | PPGI, Aluminium, Galvanized, Aluzinc |
|---|---|---|---|
| Suitable Material: | PPGI PPGL GI GL | Weight: | 3000 Kg |
| Speed: | 8-12 M/min | Roller Material: | 380V 50HZ 3P Or Customize As Customer |
| Rolling Thinckness: | 0.3mm -0.8mm | Dimension(L*W*H): | 9000mm*1700mm*1900mm(L*W*H) |
| Rollers: | 45# Steel As Customer Require | Cutting Blade: | Cr12MOV |
| Weight: | 5300KG | ||
| High Light: | 3P Rib Panel Roll Forming Machine,3P Steel Roofing Sheet Making Machine,380V Rib Panel Roll Forming Machine |
||

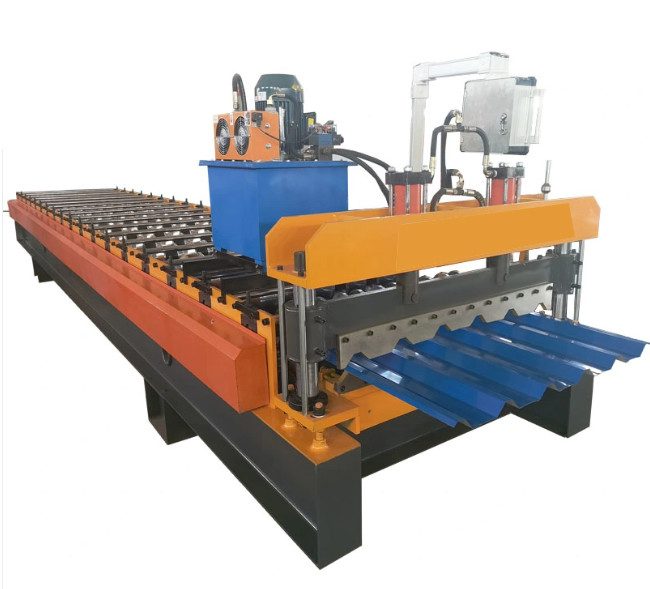

China Manufacturer Rib Panel Roll Forming Machine Steel Roofing Sheet Making Machine

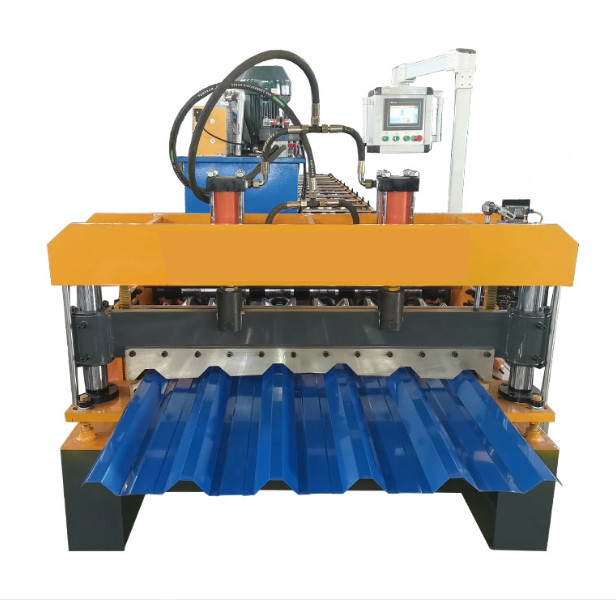

China Manufacturer Rib Panel Roll Forming Machine Steel Roofing Sheet Making Machine
A. High Precision
B. High Efficiency
C. Customized Service
D. Low Noise
China Factory Directly Roof Sheet Tile Panel Roll Forming Machine is the most popular type of roll forming machines, mainly suitable for PPGI, GI and other harder coils. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.
We adopt export standard technical solution to make the machine strong and stable enough. Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.
| Name | China Manufacturer Rib Panel Roll Forming Machine Steel Roofing Sheet Making Machine | |
| Raw Material | Material | Aluminium PPGI PPGL GI GL |
| Width | 914/925/1000/1200/1220/1250/1260mm | |
| Thickness | 0.3-0.8mm, | |
| Power Required | Power | 380V 3Phase 50Hz, customized |
| Main Motor | 5.5KW, Shanghai/Siemens Brand | |
| Cutting Motor | 4.0KW, Shanghai/Siemens Brand | |
| Roll Forming Machine | Support Frame | 350H steel, 10mm |
| Forming Station | 16/18/21 rows, exactly according to profile drawing | |
| Structure | 16mm | |
| Shaft | 45# high grade steel, 80mm, solid, with keyway | |
| Roller | 45# high grade steel with heat treatment, hard chrome plated | |
| Chain | 1.0inch | |
| Bearing | Standard | |
| Speed | 12-18m/min | |
| Electric Components | Delta / Siemens / Mitsubishi | |
| Cutting Blade | Cr12Mov, quenched 58°-62° | |
| Operation | Touch Screen | |
| Dimension | 9.1*1.7*1.9M | |
| Weight | 5.3kg | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
