Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Step Tile Rolling Forming Machine Roof Glazed Tile Roll Forming Machine | Model Number: | 840 Mm |
|---|---|---|---|
| Suitable Material: | PPGI PPGL GI GL | Weight: | 3000 Kg |
| Speed: | 8-12 M/min | Roller Material: | 380V 50HZ 3P Or Customize As Customer |
| Rolling Thinckness: | 0.3mm -0.8mm | Dimension(L*W*H): | 6*1.5*1.3 M |
| Rollers: | 45# Steel As Customer Require | Width Of Raw Material: | 1000mm |
| High Light: | High Speed step tile roll forming machine,840mm Glazed Tile Roll Forming Machine,840mm step tile roll forming machine |
||

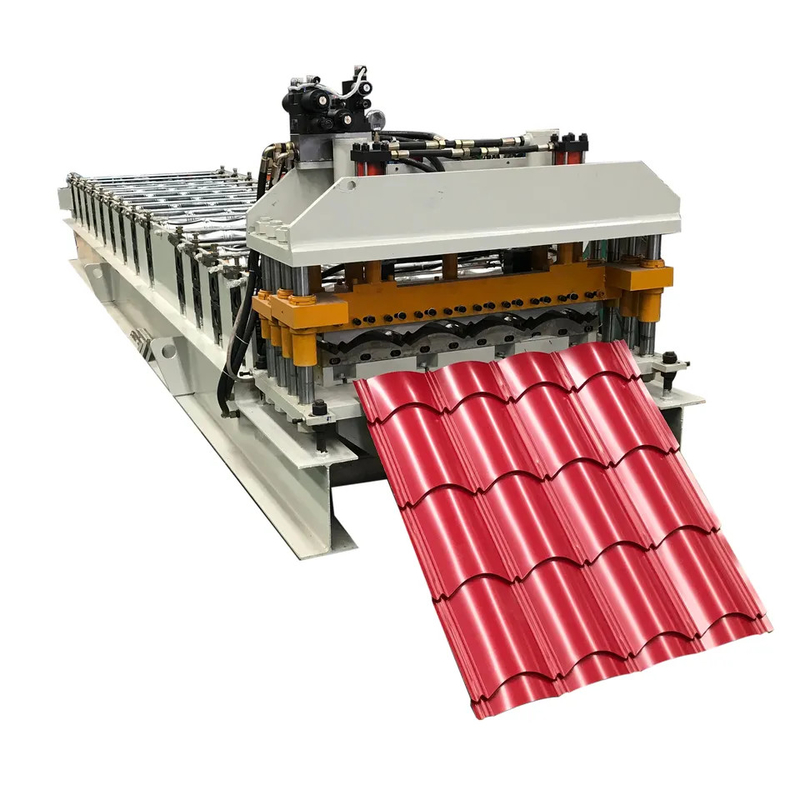

High Speed Step Tile Rolling Forming Machine Roof Glazed Tile Roll Forming Machine
High Speed Step Tile Rolling Forming Machine Roof Glazed Tile Roll Forming Machine
decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
|
No
|
Item
|
Data
|
|
1
|
Coil Width
|
according to drawings
|
|
2
|
Diameter of shaft
|
70mm
|
|
3
|
Forming Speed
|
8-12meters/min
|
|
4
|
Middle plate
|
16mm
|
|
5
|
Material of shaft
|
45#steel with tempering
|
|
6
|
forming thickness
|
0.2mm-0.6mm
|
|
7
|
material of rollers
|
45#steel
|
|
8
|
Cutting type
|
hydraulic -cutting
|
|
9
|
Main power
|
4kw+3kw
|
|
10
|
Main frame
|
300H steel
|
|
11
|
Control system
|
PLC
|
|
12
|
Brand of electrical parts
|
Delta
|
|
13
|
Manual decoiler
|
5 tons
|
|
14
|
Power
|
3 Phase,380 Voltage,50Hz
|
|
15
|
Dimensions(L*W*H)
|
About 6.5*1.2*1.2M
|
|
16
|
Weight
|
about 3 KG
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
