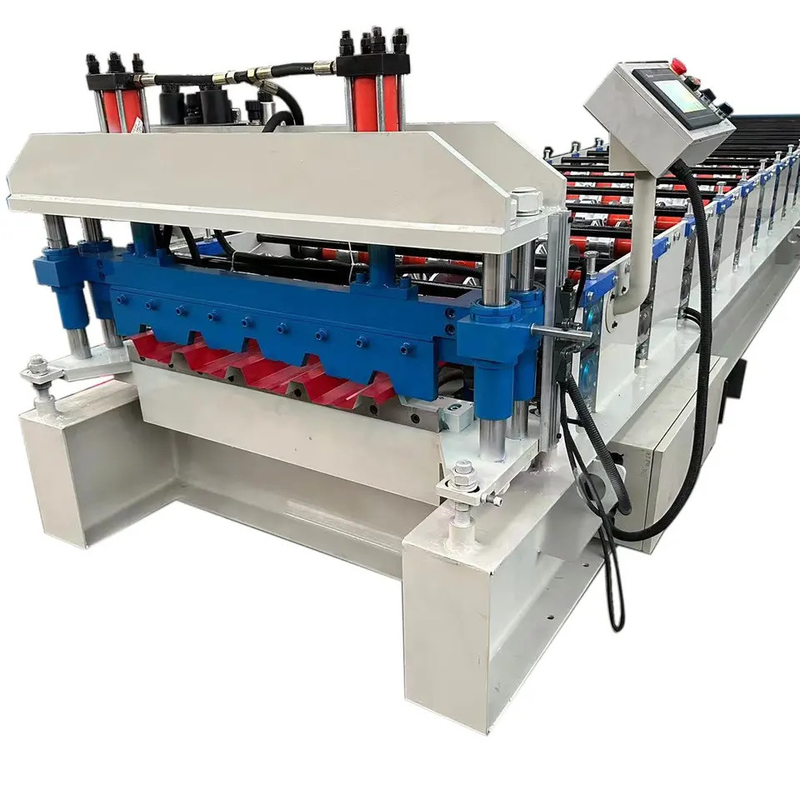

Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

1000mm PBR roll former

Ibr 686 Roof Tile Making Machine

1000mm Roof Tile Making Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Contact Us
Request A Quote
Product Details
Product Name:
Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine
Usage:
Roof, Wall
Suitable Material:
PPGI PPGL GI GL
Weight:
3000 Kg
Speed:
8-12 M/min
Roller Material:
380V 50HZ 3P Or Customize As Customer
Rolling Thinckness:
0.3mm -0.8mm
Dimension(L*W*H):
6*1.5*1.3 M
Rollers:
45# Steel As Customer Require
Width Of Raw Material:
1000mm
Highlight:

1000mm PBR roll former

,

Ibr 686 Roof Tile Making Machine

,

1000mm Roof Tile Making Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
Product Description

Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine

 Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine process for work:

decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

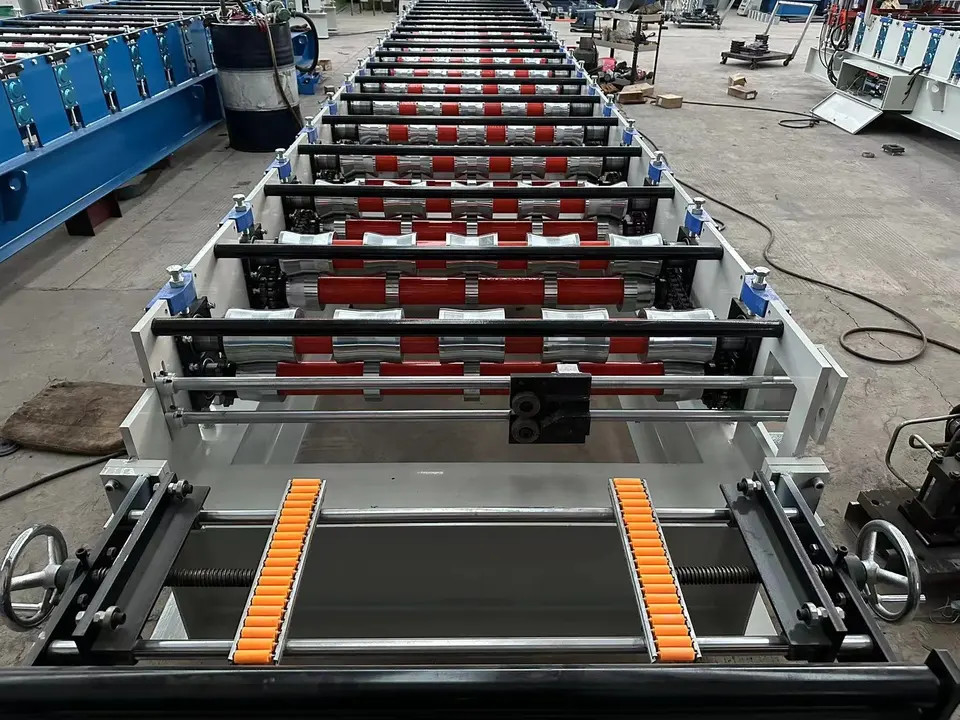

The Roll Forming Machine is composed of feeding material , forming, and post-forming cutting. The color plate produced has a flat and beautiful appearance, no any scratch on surface of sheets . It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.


Specification
No
Item
Data
1
Coil Width
according to drawings
2
Diameter of shaft
70mm
3
Forming Speed
8-12meters/min
4
Middle plate
16mm
5
Material of shaft
45#steel with tempering
6
forming thickness
0.2mm-0.6mm
7
material of rollers
45#steel
8
Cutting type
hydraulic -cutting
9
Main power
4kw+3kw
10
Main frame
300H steel
11
Control system
PLC
12
Brand of electrical parts
Delta
13
Manual decoiler
5 tons
14
Power
3 Phase,380 Voltage,50Hz
15
Dimensions(L*W*H)
About 6.5*1.2*1.2M
16
Weight
about 3000KG



Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
