Name: 8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Corrugated
Price: 16,000.00 USD
Availability: InStock

Home > products > Roof Tile Roll Forming Machine >

8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine

20m/Min Corrugated Roll Forming Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Model Number:

Corrugated

Request A Quote

Product Details

Product Name:

Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Corrugated Making Machine

Tile Type:

Galvanized Steel Or PPGI

Production Capacity:

8-20 M/min

Weight:

4500 Kg

Roller Material:

380V 3phase 50Hz

Feeding Width:

0.3-0.8mm

Coil Width Before Rolling:

1200mm, 1220mm, 1250mm

Appearance Size:

6*1.5*1.3 M

Roller Material:

45# Steel With 0.05mm Chrome

Cutting:

Hydraulic Cutting

Highlight:

20m/Min Corrugated Roll Forming Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

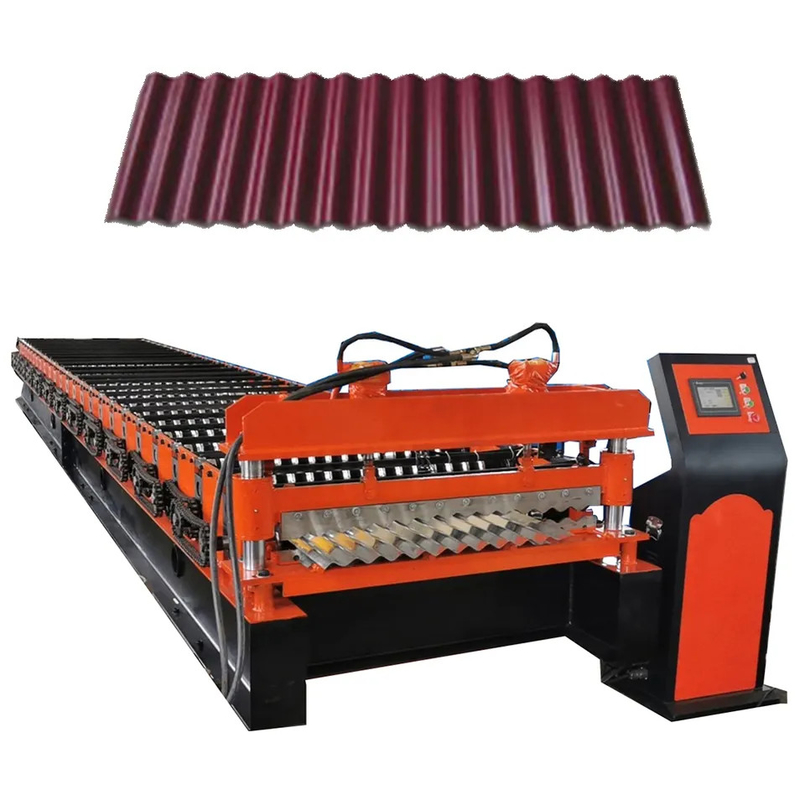

Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Corrugated Making Machine

1064 Corrugated roll forming machine | corrugated roofing sheet machine | corrugated machine | 1064 corrugated roofing sheet machine

Corrugated roofing sheet roll forming machine popular sell in many countries

When use 1250mm width coil, after rolling product width is 1064mm

When use 1200mm width coil, after rolling product width is 988mm

When use 1000mm width coil, after rolling product width is 836mm

4 types make in one machine

Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

NO.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	13 or depend on customer' drawing
	Shaft diameter	75 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 61.51.3 m
	Machine weight	About 5 tons
	Machine color	As customer need
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
	Weight capacity	5 Tons
	Price	Free as gift
Receive table	Operation	Manual
Receive table	Length	3 m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% TT in advance

60% TT before the shipment and after inspection

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
