Product Details:
Payment & Shipping Terms:
|
| Product Name: | Trapezoidal Roof Tile Roll Forming Mahcine With 18 Stations Simple Structure No Pollution | Usage: | Roof, Wall |
|---|---|---|---|
| Suitable Material: | PPGI PPGL GI GL | Weight: | 4500 Kg |
| Speed: | 8-20 M/min | Roller Material: | 380V 50HZ 3P Or Customize As Customer |
| Rolling Thinckness: | 0.3-0.8mm | Dimension(L*W*H): | 6*1.5*1.3 M |
| Rollers: | 45# Steel As Customer Require | Coil Width Before Rolling: | 900mm, 915mm, 1000mm, 1200mm, 1250mm |
| High Light: | 18 Stations Roof Tile Roll Forming Machine,18 Stations Roof Tile Roll Forming Machine,Roof sheet Roll Forming Mahcine No Pollution |
||

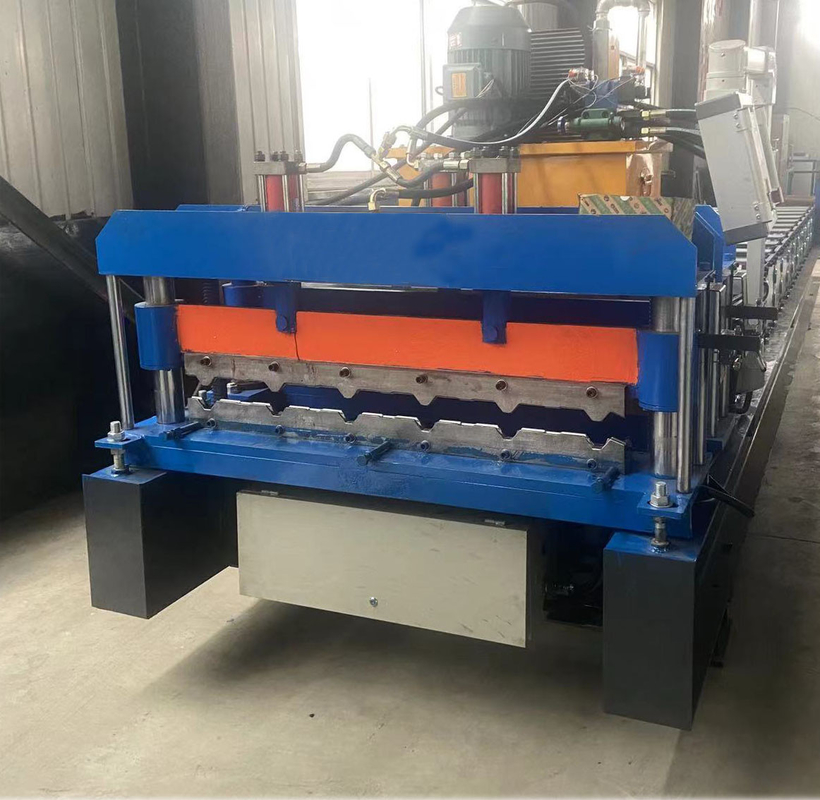

Trapezoidal Roof Tile Roll Forming Mahcine With 18 Stations Simple Structure No Pollution
Product Advantage
(1) The color steel plate equipment adopts high-level automatic control software to realize production information management.
(2) The entire unit automation control system uses a highly integrated network to make the automation system perform better.
(3) The color steel tile pressing machine also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel or PPGI |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 13 |
| Shaft diameter | 70 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 6.2×1.5×1.3 m | |
| Machine weight | About 4.5 KG | |
| Machine color | As customer' request | |
| Working speed | 8-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Weight capicatity | 5 ton |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
