Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving

Roof Tile Roll Forming Machine Trapezoid

Roof Tile Roll Forming Machine 5 Ribs

5 Ribs Tile Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving

Usage:

Roof, Wall

Suitable Material:

PPGI PPGL GI GL

Weight:

4000 Kg

Speed:

0-20m/min

Roller Material:

380V 50Hz 3phases

Rolling Thinckness:

0.3-0.8mm

Dimension(L*W*H):

8.5*1.65*1.5m

Rollers:

45# Steel As Customer Require

Feeding Width:

914-1450mm

Highlight:

Roof Tile Roll Forming Machine Trapezoid

Roof Tile Roll Forming Machine 5 Ribs

5 Ribs Tile Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

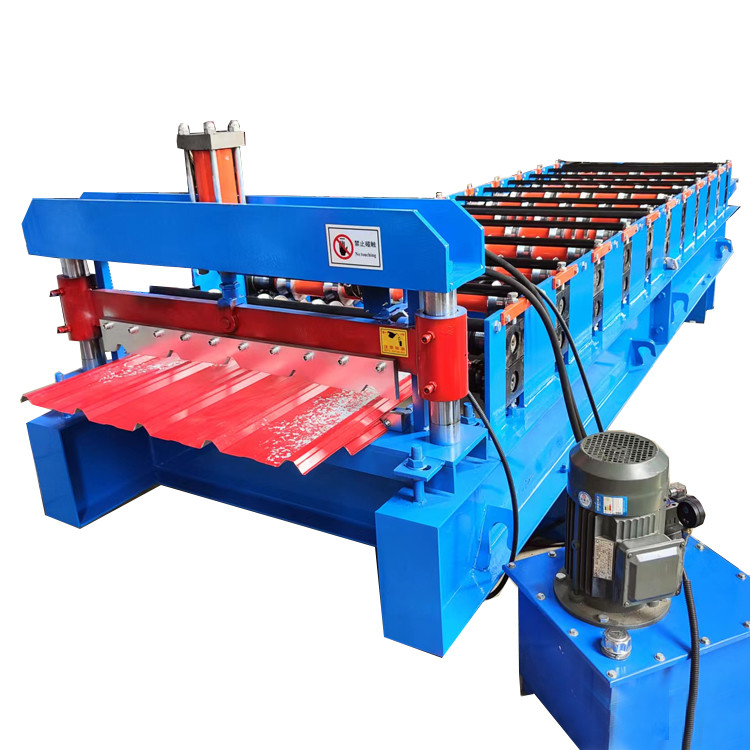

Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving

Brief Introduction

Roof roll forming machines has different types .Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.

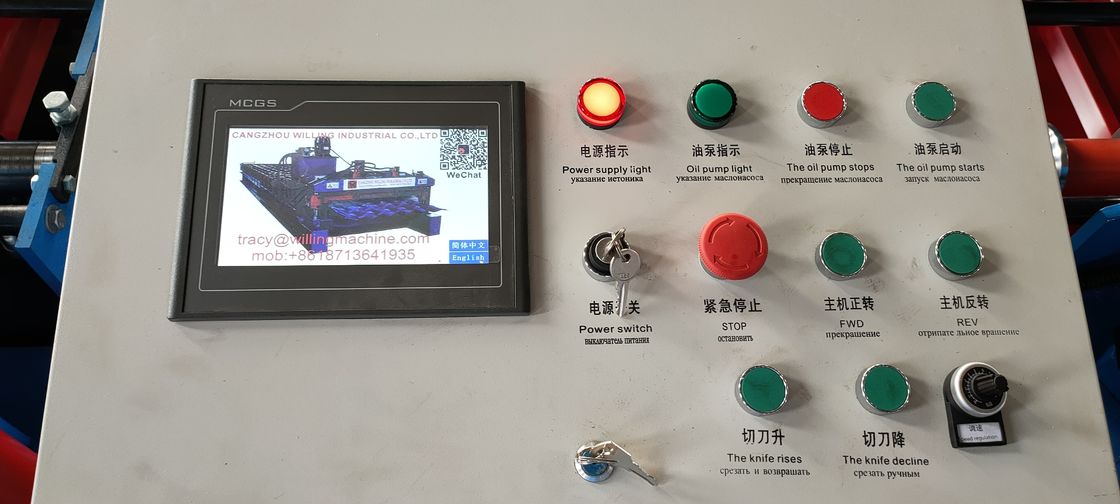

Full Automatic Computer Control make easy to operation.

Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat

treatment 58℃-62℃ . The product quality is durable and long service life .

Specification

item	value
Production Capacity	0-20m/min
Rolling thinckness	0.3-0.8mm
Feeding width	914-1450mm
Product name	Roof Sheet Forming Machine
Raw material	PPGI PPGL GI GL
Shaft material	45# Steel Outer Diameter: 70mm
Cutting blade material	Cr 12 High Grade Steel
Roller material	45#steel Chrome Plated
Main frame	350H Steel
Feature	High Production Speed
Motor brand	Lichao
Decoiler	5T Manual Decoiler
Cutting system	Hydraulic Automatic Cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving 0
