Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span Machine | Usage: | Roof, Wall |
|---|---|---|---|
| Suitable Material: | PPGI Gi | Weight: | 5000 Kg |
| Speed: | 3-8m/min | Roller Material: | 380V 50Hz 3phases |
| Motor: | 4kw | Thickness: | 0.3-0.8mm |
| Specification: | 3000*1300*600mm | Rollers: | 45# Steel As Customer Require |
| High Light: | Long Span Glazed Tile Forming Machine,4kw Glazed Tile Roll Forming Machine,8m/min Glazed Tile Forming Machine |
||

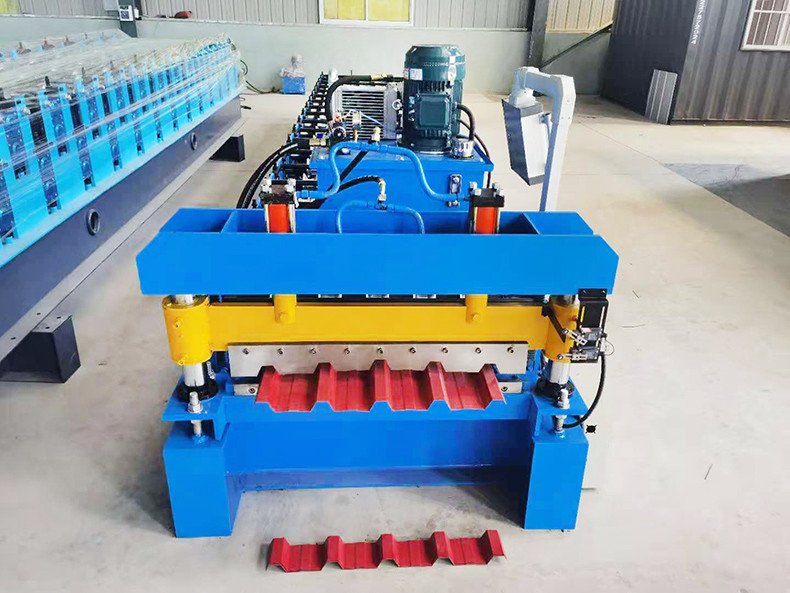

Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span Machine

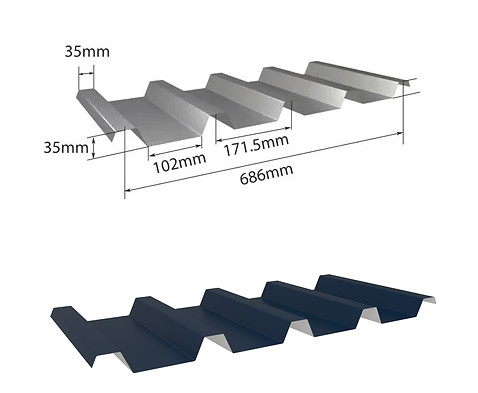

Different Good quality glazed steel roof tile making machine with different rolls can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.
| Steel roofing tile glazed tile roll forming machine Step tile sheet machine | ||
| 1 | Main frame | 250mm H-sections |
| 2 | Side board thickness | 14mm |
| 3 | Main motor power | 4kw |
| 4 | Power supply | 380V 50Hz 3phases |
| 5 | Shaft number | 3 rows |
| 6 | Shaft material | Carbon steel 45# |
| 7 | Shaft diameter | 70mm |
| 8 | Rolling wheel material | Carbon steel 45# with chrome plated |
| 9 | Hydraulic pump motor power | 4kw |
| 10 | Chain size | 33mm |
| 11 | Control system | PLC Delta inverter |
| 12 | Production rate | 4-8m/min |
| 13 | Feeding tiles | Formed tiles |
| 14 | Finished specification | According to the formed tiles |
| 15 | Overall size | 3000*1300*600mm |
| 16 | Total weight | About 0.5 Ton |
|
*Parameters above is the standard configuration *Parameters can be designed as per your special requests. |
||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
