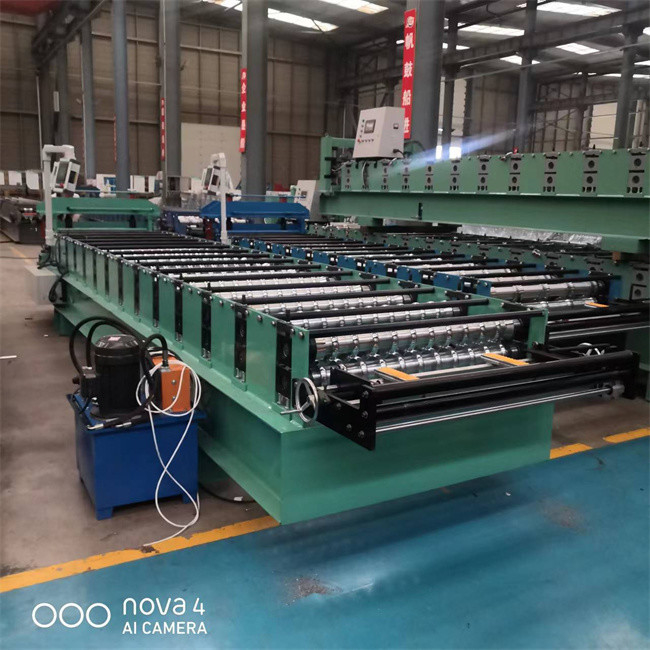

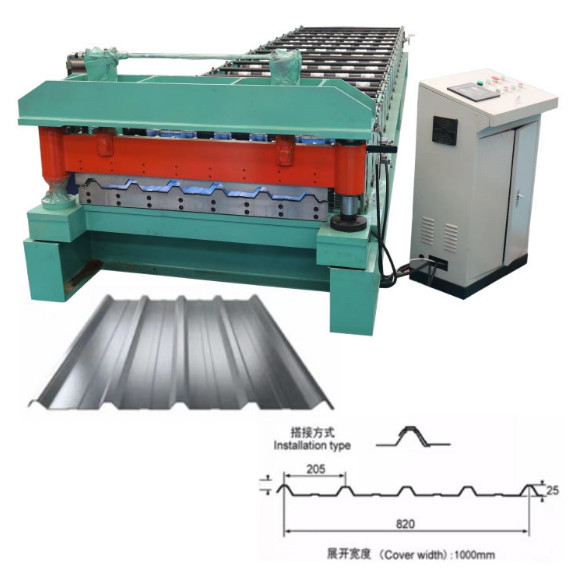

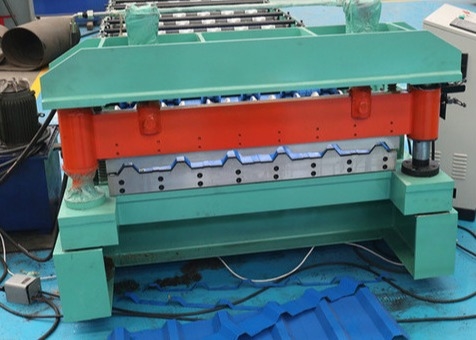

Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile

Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile
Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile

Large Image :  Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile

Product Details:
Place of Origin: China
Brand Name: cangzhou fms
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile Raw Material: PPGI, GI, GL, PPGL
Production Capacity: 8-10m/min Voltage: 380V 50Hz 3phases
Frame Thickness: 18mm Roller Material(Hard): Cr12,heated And Quenched,polishing
Dimension(L*W*H): About 6.1M*1.3M*1.2M Shaft Material: 45# Steel
Under Frame: 350H-beam, Welded Structure
High Light:

Trapezoidal Roofing Sheet Roll Forming Machine

,

Metal Roofing Sheet Roll Forming Machine

,

10m/min Roll Forming Machine

Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile



  The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, feeding table, main roll forming machine, electric/ hydraulic cutting system, plc control system, main motor, pump station, simple receving table/ Automatic stacker.

  Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and other requirements. The steel roof wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.




Specification

Machine Specifications
Weight About 2.5tons
Size About 6.1M*1.3M*1.2M(length x width x height)
Color Main color: bule or as your need
Warning color: yellow
Suitable Raw Material
Material GI PPGI GL PPGL
Thickness 0.3-0.8mm
Yield Strength 235Mpa or as your need
Main Technical Parameters
Quantity of forming rollers stations 15
Diameter of forming rollers shafts 70mm
Roll Forming Speed 15m/min
Forming rollers material 45# steel, coated with chromed treatment
Cutter material Cr12MOV, with quenched treatment
Controlling system PLC
Electric Power requirement Main motor power: 5.5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement


Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
