Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

15m/min Standing Seam Roll Forming Machine

Portable Standing Seam Roll Forming Machine

Self Lock Standing Seam Roll Former

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Contact Us
Request A Quote
Product Details
Product Name:
Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock
Production Capacity:
10-15m/min
Voltage:
380V 50Hz 3phases
Weight:
1.5TON
Sidewall:
45# Steel Plates
Dimension(L*W*H):
5800*1000*1200mm
Roller Material:
45# Forging Steel With Chromium Plate
Motor Power:
4kw
Raw Material:
GI,PPGI,PPGL
Highlight:

15m/min Standing Seam Roll Forming Machine

,

Portable Standing Seam Roll Forming Machine

,

Self Lock Standing Seam Roll Former

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
Product Description

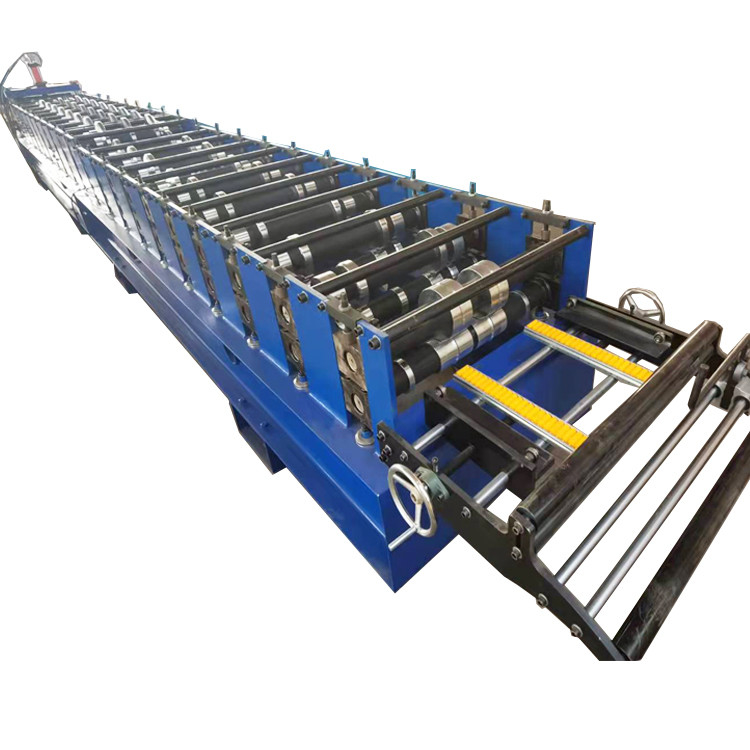

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock



   Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock is widely used, because it’s impossible for the water to get under the connected roofing panels, thanks to lock’s special shape.

After installation on the roof the panels are closed using special double standing seam closing tools (manual tool for closing seam lock or electric seaming machine for closing double standing seams).

 standing seam machine can be easily adjusted for various width of metal roofing panels.

Operator can change the width of the panels with just a single turning handle at one side of the machine. This is a proven technical convenience that allows operator to use his working time more effectively.




Specification

1.Processing material aluzinc/galvanized steel/colored steel coil
2.Material thickness 0.3-0.8mm
3.Feeding width: As drawing
4.Effective width As drawing
5.Main motor power 4kw
6.hydraulic pump power 4kw
7. Shaft diameter 65mm
8.Forming steps 13steps
9.Main frame 300H Steel frame
10. Side plate thickness 16mm
11.Roller material 45# forged steel, with hard chrome plating
12.Control systerm Delta PLC control system with touch screen
13.Cutting blade material Cr12.
14.Working speed About 10-15m/min
15. Transmission way 1 inch chain drive
16. Machine size (mm) About 5800*1000*1400mm
17. Machine weight About 1.5ton
18.Power supply 220v,3phase,50hz or accodring to customer request


Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
