Home > products > Roof Tile Roll Forming Machine >

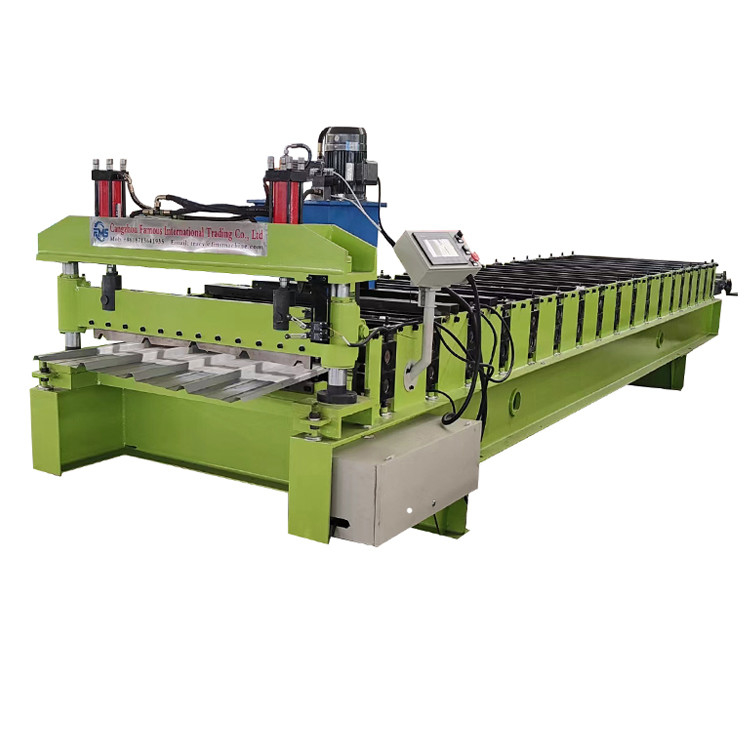

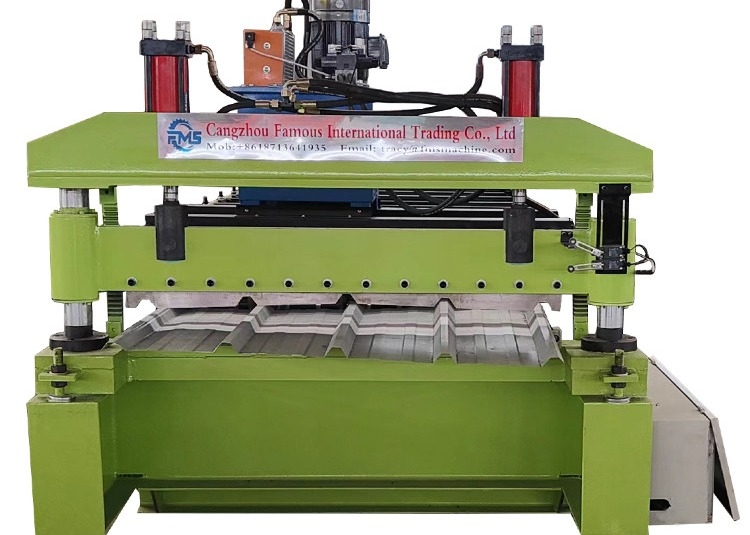

Cold Panel Metal Roofing Sheet Roll Forming Machine Hydraulic

Metal Roofing Sheet Roll Forming Machine

ISO Metal Roofing Sheet Making Machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine

Method:

Hydraulic Pressure

Production Capacity:

8-10m/min

Voltage:

380V 50Hz 3phases

Feeding Width:

900mm

Roller Material(Hard):

Cr12,heated And Quenched,polishing

Dimension(L*W*H):

6500*1300*1500

Rolling Thinckness:

0.3-0.8mm

Under Frame:

350H-beam, Welded Structure

Pre-cutter Material:

Cr12Mov

Raw Material:

GI,PPGI,PPGL

Diameter Of Shaft:

70 Mm

Highlight:

Metal Roofing Sheet Roll Forming Machine

ISO Metal Roofing Sheet Making Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

Video

Stone Coat Metal Roof Making Machine 0.3 -0.6 Mm Thickness Non Corrosion

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Color Coated Delta 4m/Min Roof Tile Roll Forming Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine.Main Features:

1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.

we have approved certification of ce iso9001,the concept control everyone orocess and perfect all products is curved in everyone mind ,each machine.will be via load carrying test before leaving factory,problem machines will never be delivered to customer.

we are willing to promote the economic and technical,exchange with the word ,and do positive work to enhance the between people from different countries,we sincerely hope you and hand in hand ,create the glorious future altogether.

Specification

SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE
Raw Material	feeding width	mm	1220
	effective width	mm	1000
	thickness	mm	0.3-0.8
Main Roll Forming Machine	roller material		45# steel plated with chrome
	diameter of shaft	mm	70
	roller station	steps	16
Main Configuration	main motor power	kw	5.5
	hydraulic station power	Kw	4
	control system	PLC brand	Mitsubishi

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
