Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Layer Roofing Sheet Roll Forming Machine Automatic High Quality | Main Motor Power: | 5.5kw |
|---|---|---|---|
| Raw Material: | PPGI | Voltage: | 380/50Hz/3PH Or Customized |
| Control System: | PLC From Overseas | Production Capacity: | 15 M/min |
| Thickness: | 0.3-0.8mm | Hydraulic Station Power: | 4KW |
| High Light: | 15m/min Double Layer Roll Forming Machine,PPGI Roofing Sheet Roll Forming Machine,PPGI Double Layer Roll Forming Machine |
||

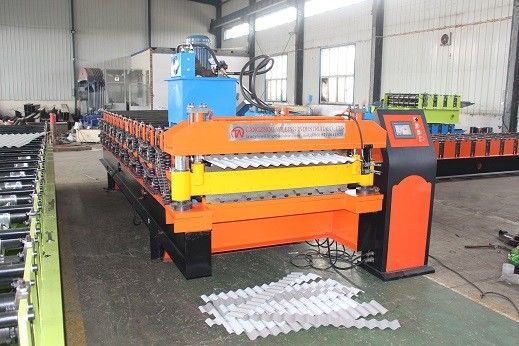

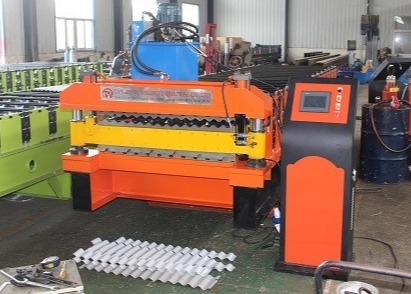

Double Layer Roofing Sheet Roll Forming Machine Automatic High Quality
TheDouble Layer Roofing Sheet Roll Forming Machine Automatic High Quality. It has a small footprint, saves space, and is controlled automatically by a computer. In this operation, only one type of tiles can be produced at one time.
Maquina de hecho lamina teja costura de techo is widely usedin the construction of various.
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 914mm/1000mm/1200mm/1220mm/1250mm |
3 | Thickness of the plate | 0.3-0.8mm |
4 | De-coiler | Manual one, can load 5 tons raw material |
5 | Rollers for forming | 16 rows |
6 | Diameter of the roller | 80mm |
7 | Rolling material | Carbon Steel 45# |
8 | Main motor power | 5.5kw |
9 | Material of the cutting blade | Cr12 mov |
10 | Hydraulic cutting power | 4kw |
11 | Processing precision | Within 1.00mm |
12 | Control system | Delta PLC control |
13 | Side panel of machine | 16mm |
14 | Main structure of the machine | 350 H steel |
15 | Weight | About 3T |
16 | Dimensions | 5.6*1.2*1.5m |
17 | Voltage | 380V 50Hz 3phases(changeable as needs) |
18 | Certificate | CE/ISO |
19 | Custom | According to customer's requirements |
Application
The tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls, and large-span steel structure houses. It can be made of GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and it has a service life of 10-15 years.
Advantage
In general, this version is used for roofs, walls, and internal and external wall decoration of buildings, warehouses, special buildings, and long-span steel structure houses. The features of the product include a light weight, high strength, rich colors, convenient and fast construction, earthquake resistance, fireproof, rainproof, and long service life. Protection functions have been widely used.
