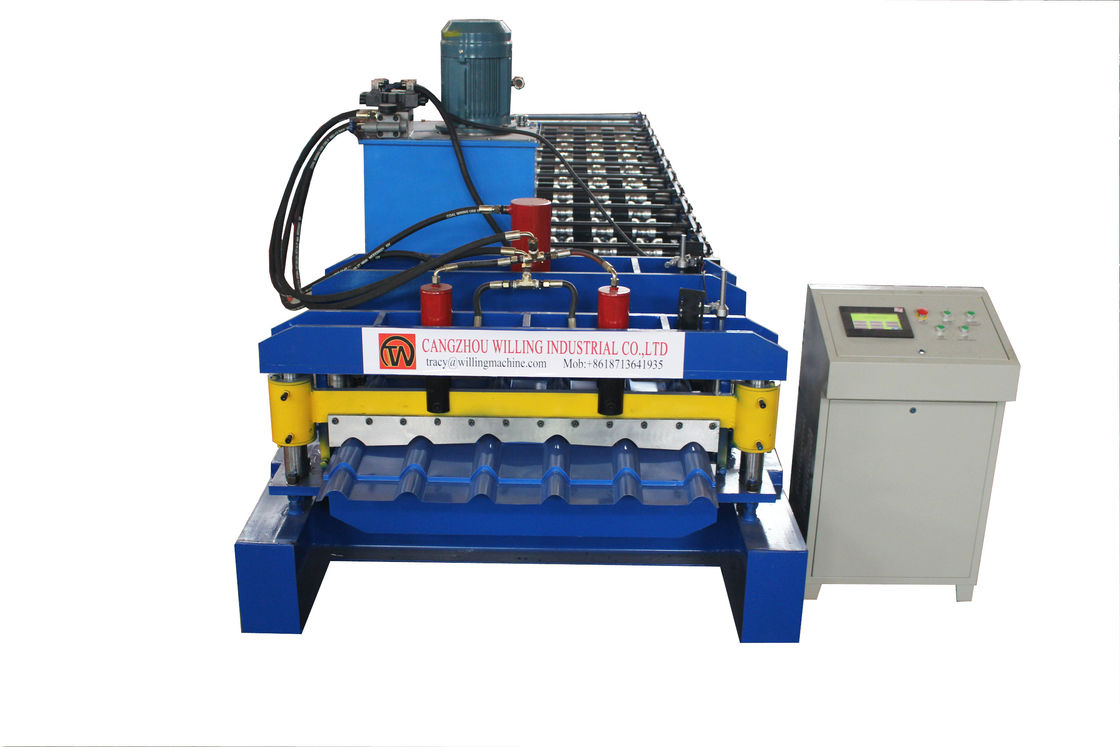

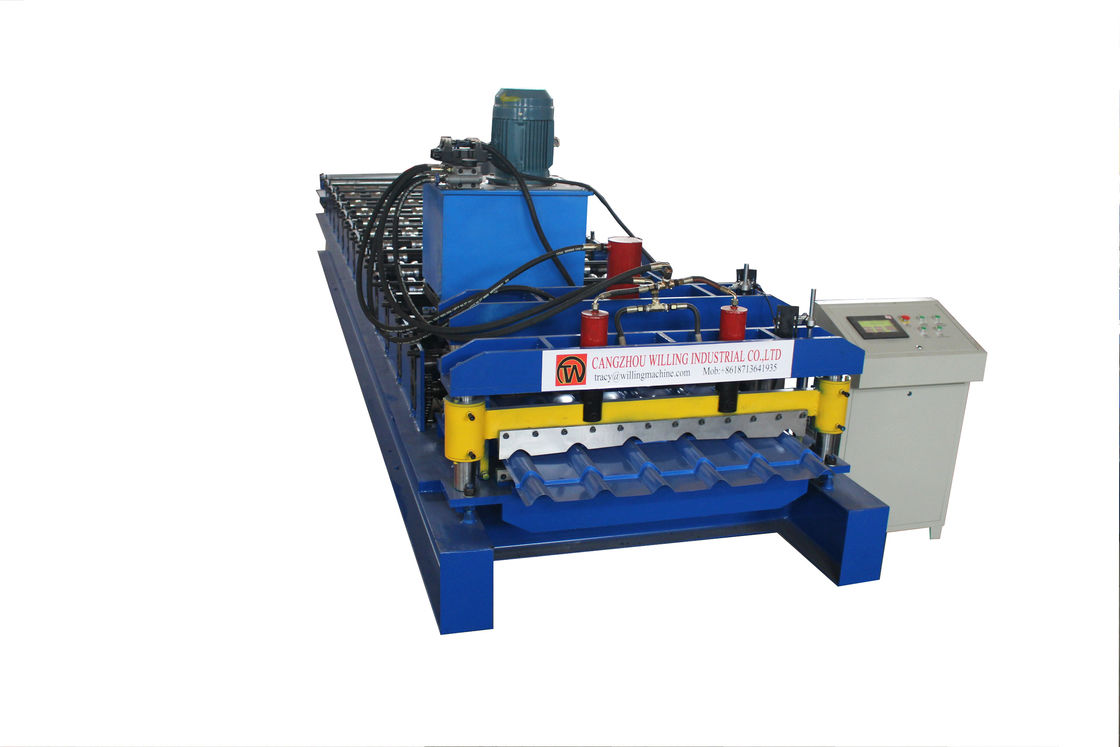

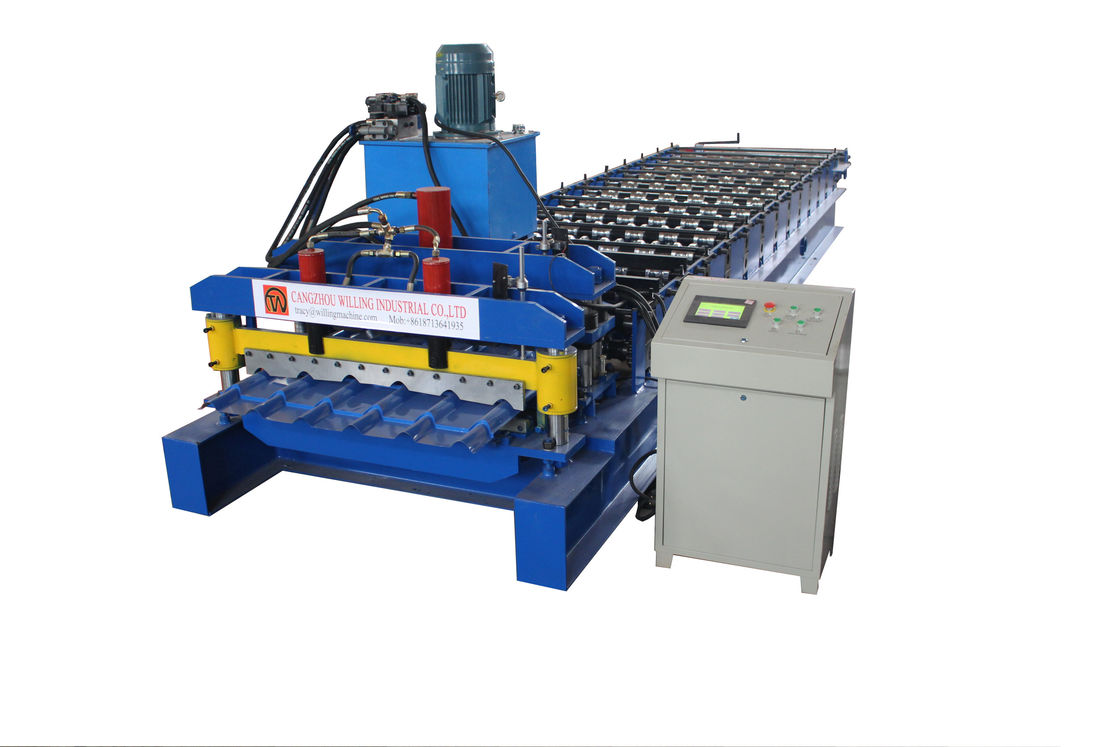

PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type

PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type
PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type

Large Image :  PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type Usage: Roof, Wall
Suitable Material: PPGI Gi Width: As Per Custom Profile
Speed: 0-15 M/Min Roller Material: 380V 50Hz 3phases
Motor: 5.5kw Thickness: 0.3-0.8mm
Specification: 7.8X1.5X1.7M Rollers: 45# Steel As Customer Require
High Light:

PLC Controlled Tile Roll Forming Machine

,

Glazed Tile Roll Forming Machine

,

15m/Min Tile Roll Forming Machine

PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type



   Color steel glazed tiles are new types of building materials. They use color steel plates as substrates for special processing and special paint. They are rich in color and classic and elegant. Its self -heavy, high intensity, good waterproof, easy to install and fast, can be widely used in villa roofs, urban flat -slopes, tourist scenic areas, etc.


Specification


Coil required Material PPGI GI AL
Width as per requested
Thickness 0.3-0.7mm , as custom order


Power required
Power 380V 50Hz 3 Phase , as custom order
Main Motor 5.5KW Siemens Brand
Cutting Motor 4KW Siemens









Machine
Support Frame 350H
Forming Station 14 rows as profile
Structure 8-15 mm
Shaft 75mm
Roller 45# Steel with heat treatment
Chains 1.2 inch
Bearings Standard as custom order
Speed 15-30m/min
Electric Components Delta and Siemens
Size 7.5*1.3*1.6M
Weight 4T




Application



The sound absorption and noise reduction function, its heating resistance is very good, the subtle independent air bubble structure can effectively reduce the energy exchange caused by air to flow to the flow of air, which is both defensive and exposed. The environment of the environment is also very good. It is a semi -hard foam, and it does not lose its original performance after being strongly impacted. In addition, it also has the performance of tasteless, non -toxic, drug resistance, oil resistance, acid resistance, halogen resistance and other chemicals, and is very easy to process; strong heat resistance, good extension performance, color steel glass tiles also have tasteless non -toxic toxicity , Drug resistance, oil -resistant, acid resistance, halogen resistance and other chemicals, and are very easy to process. It is widely used in the field of buildings and civil engineering. Leakage and anti -corrosion materials; simple construction, the fastest paving speed, and the lowest construction cost.
