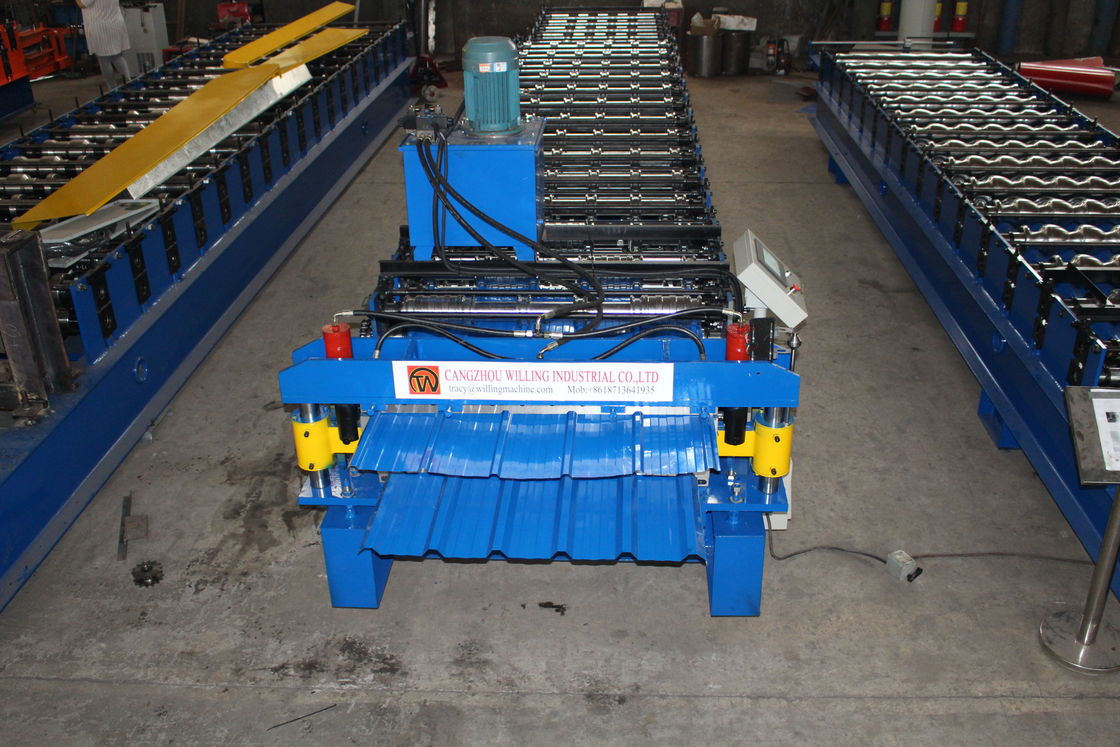

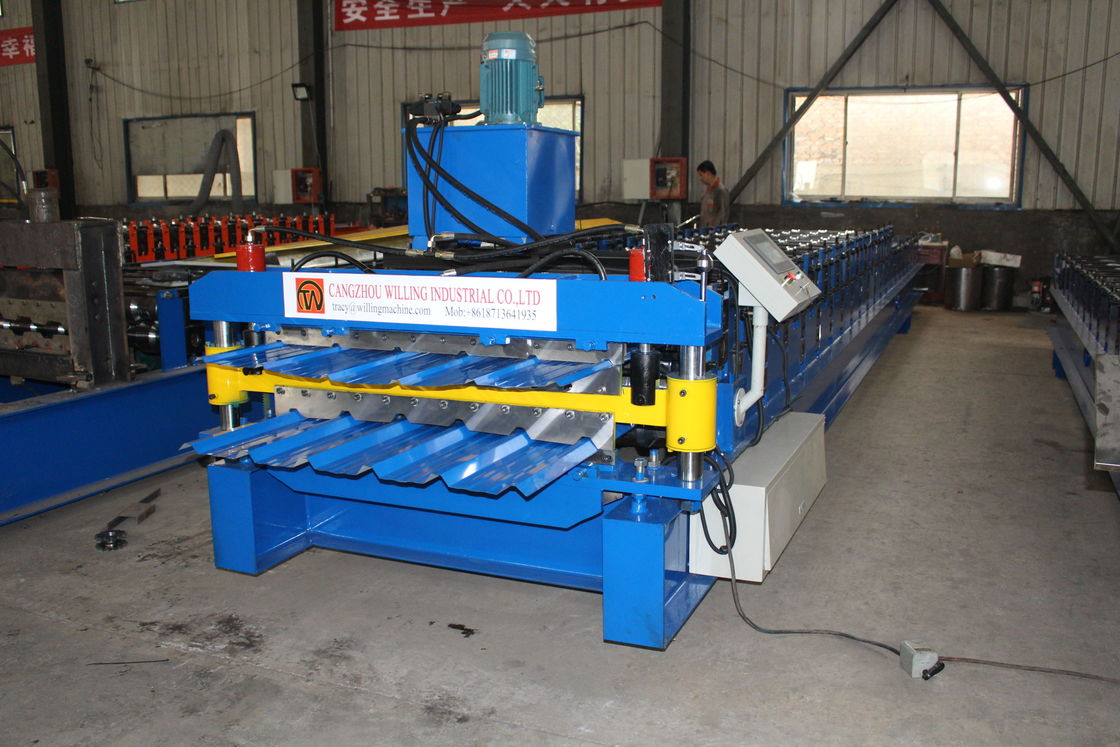

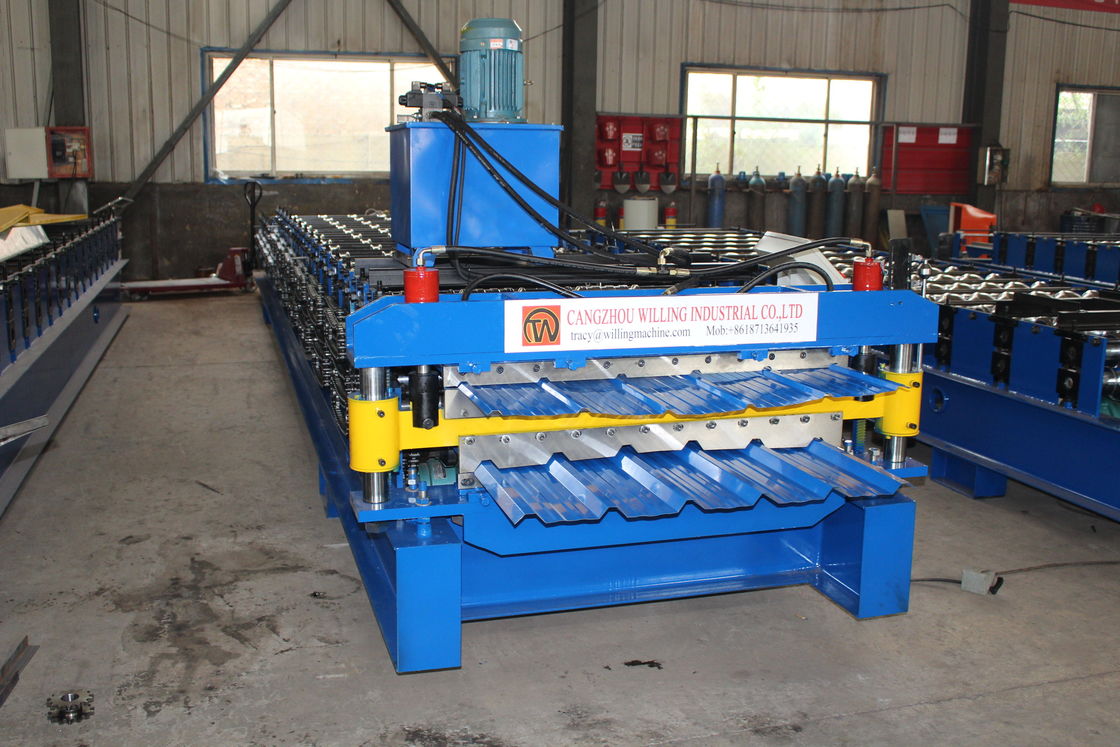

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase

3phase roof tile roll forming machine

6rib roof tile roll forming machine

trapezoid type roof tile roll former

Place of Origin:

China

Brand Name:

fms

Certification:

CE,ISO

Model Number:

6 rib IBR

Contact Us
Request A Quote
Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase
Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase
Product Details
Product Name:
Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase
Method:
Hydraulic Pressure
Thickness Range:
0.2-0.6mm
Work Speed:
7-15m/Min
Machine Weight:
5 Tons
Roller Material:
380V 3 Phase 50Hz
Specification:
6300mm*1500mm*1500mm(L*W*H)
Customized:
Customized
Highlight:

3phase roof tile roll forming machine

,

6rib roof tile roll forming machine

,

trapezoid type roof tile roll former

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable

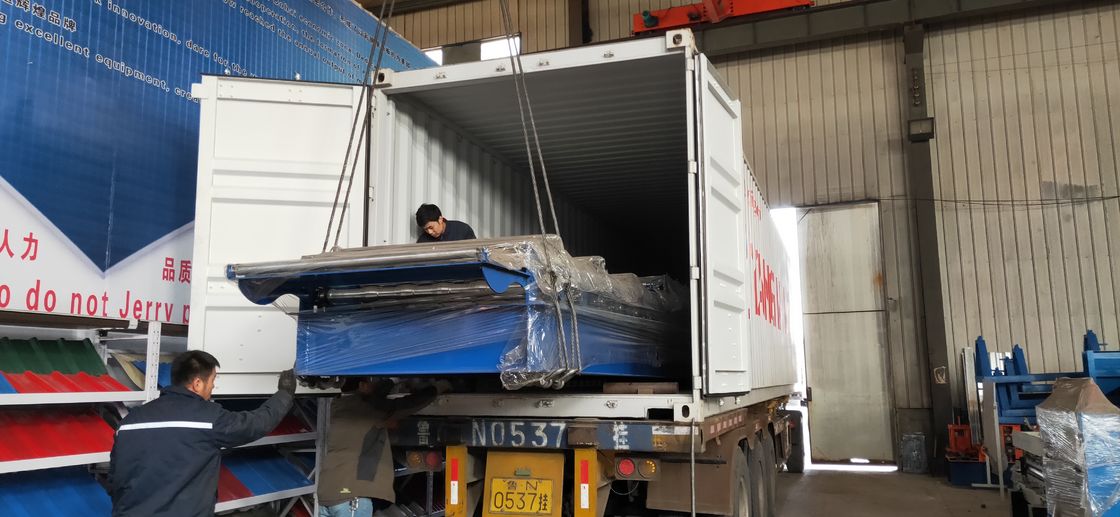

Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price 380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Big Wave 4m / Min Roof Tile Roll Forming Machine online Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price
Good price Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine online Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase



It makes colored steel roof plates of different shapes, which are used in buildings, factories, supermarkets, etc. For this machine, it is suitable for winding width of 1250mm and thickness range from 0.2 mm to 0.6 mm. We use the 16 mm thick wall panel type to make the rack strong. Generally, it can run to 15m/min at the highest speed. PLC and touch screen operation make the machine easy to use.



Specification

Main motor power 5.5kw
Drive 1'' single chain
Type: Wall board
Main shaft dia ¢70mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Roll station 18 groups
Raw material 0.2-0.6mm
Coil width 1250mm
Working speed 7m--15m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 5 ton
Size of machine About 6300×1200×1500mm L x W x H
Color of machine as per request
Coder Omron, made in Japan
Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel touching screen
Other electrical element Schneider
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm



Advantage

has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied



Application

Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc
