Place of Origin:
CHINA MAINLAND
Brand Name:
FMS
Certification:
ISO CE
Model Number:
Double Layer
Video

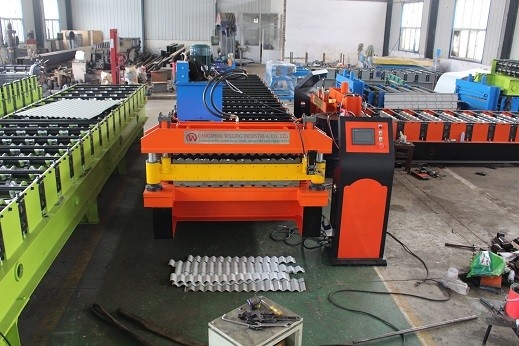

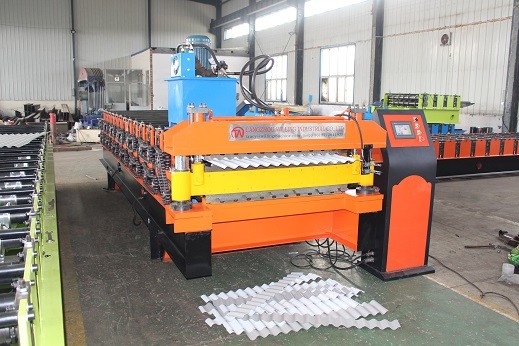

IBR and Corrugated profile Roll Forming Machine Double Layer type
The double-laminated tile machine can press two types of tiles . It has a small footprint, saves space, and is controlled automatically by a computer. In this operation, only one type of tiles can be produced at one time
| No. | Item | Description |
| 1 | Coil | PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.7mm |
| 3 | Working Speed | 18-20/min |
| 4 | Roller Station | 16/16 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 5000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
4 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH or as per requested |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
1 inch Chain |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls, and large-span steel structure houses. It can be made of GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and it has a service life of 10-15 years.
Advantage
In general, this version is used for roofs, walls, and internal and external wall decoration of buildings, warehouses, special buildings, and long-span steel structure houses. The features of the product include a light weight, high strength, rich colors, convenient and fast construction, earthquake resistance, fireproof, rainproof, and long service life. Protection functions have been widely used.
