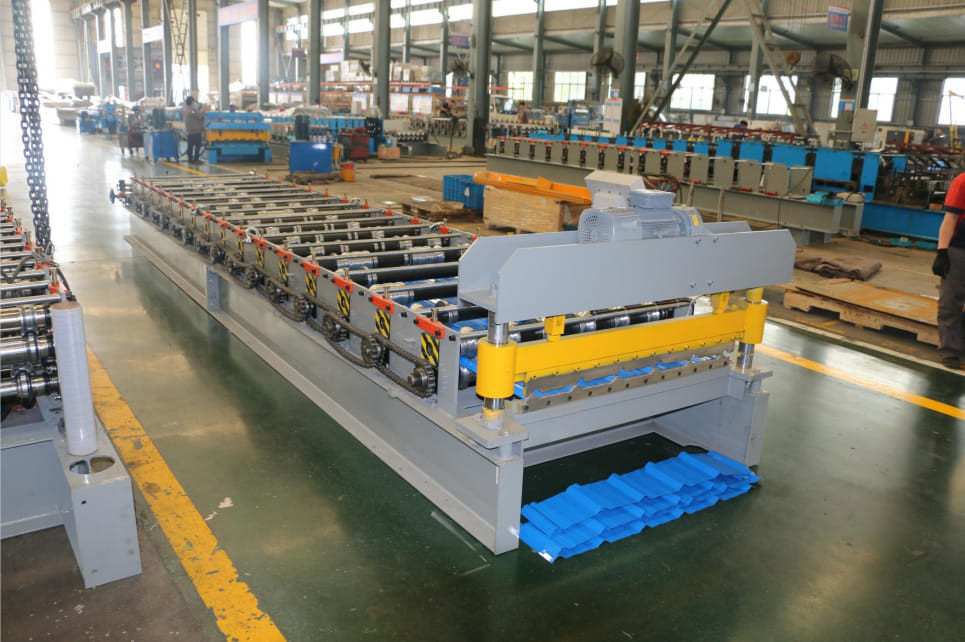

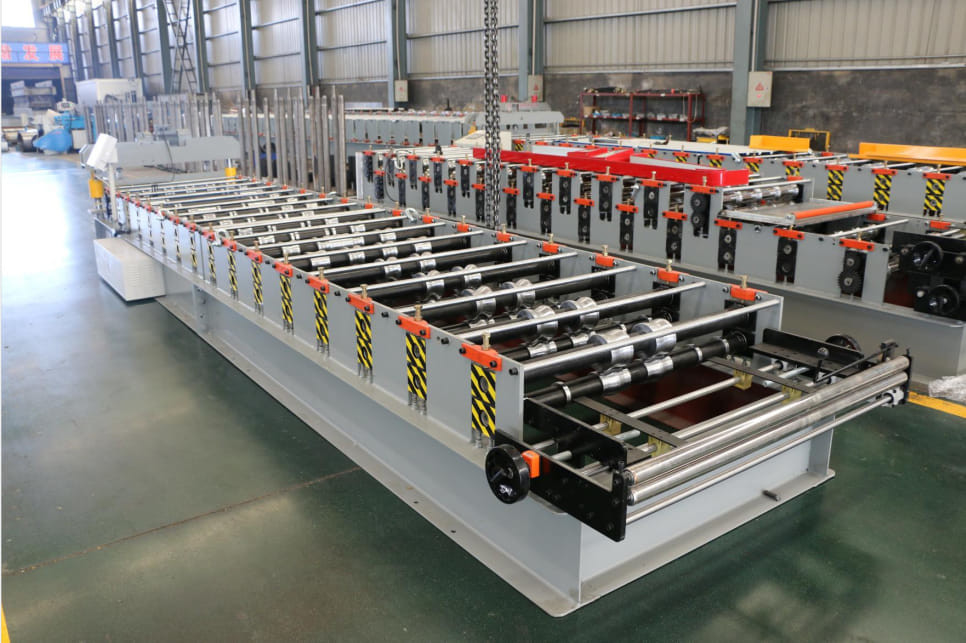

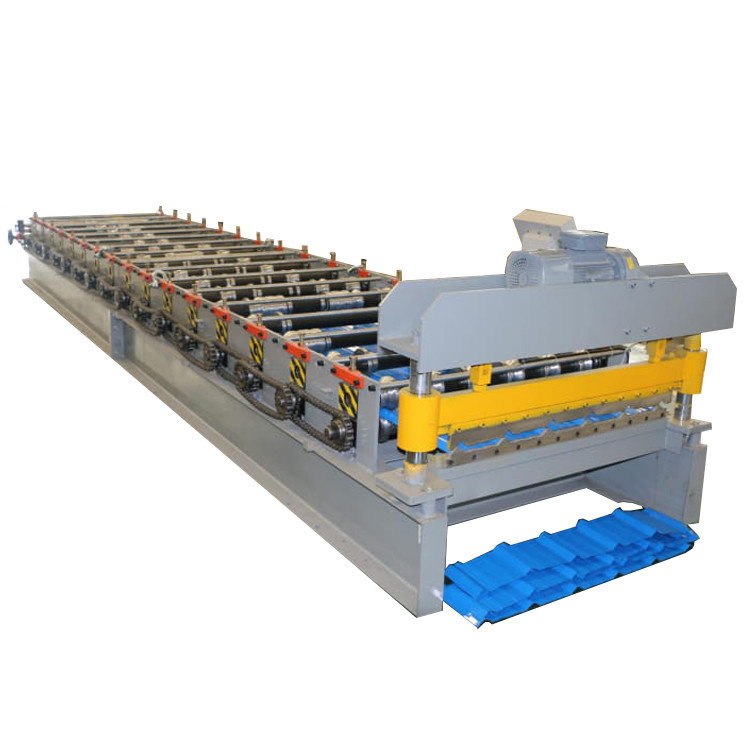

Galvanized Roofing Tile Roll Forming Machine​ For Metal Roof Making Machine

Galvanized Roofing Tile Roll Forming Machine​ For Metal Roof Making Machine
Galvanized Roofing Tile Roll Forming Machine​ For Metal Roof Making Machine

Large Image :  Galvanized Roofing Tile Roll Forming Machine​ For Metal Roof Making Machine

Product Details:
Place of Origin: China
Brand Name: cangzhou fms
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Galvanized Roofing Tile Roll Forming Machine​ Cor Metal Roof Making Machine Method: Hydraulic Pressure
Production Capacity: 20M/MIN Voltage: 380V 50Hz 3phases
Feeding Width: 900mm Roller Material(Hard): Cr12,heated And Quenched,polishing
Dimension(L*W*H): 8500*1400*1400Mm Rolling Thinckness: 0.3-0.8mm
Under Frame: 350H-beam, Welded Structure Pre-cutter Material: Cr12Mov
High Light:

galvanized roofing tile roll forming machine

,

900mm roofing tile roll forming machine

,

hydraulic pressure tile roll forming machine

Galvanized Roofing Tile Roll Forming Machine​ Cor Metal Roof Making Machine

  Galvanized Roofing Tile Roll Forming Machine​ Cor Metal Roof Making Machine.

  CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is cal glazed tile forming machine ,c/z puline machine for light steel structure building ,floor deck forming machine sandwich

panel production line ,fast guardrail roll forming

line and various kind of full automatic cold bending

roll forming machine equipment.

   we have approved certification of ce iso9001,the concept control everyone orocess and perfect all products is curved in everyone mind ,each machine.will be via load carrying test before leaving factory,problem machines will never be delivered to customer.

   we are willing to promote the economic and technical,exchange with the word ,and do positive work to enhance the between people from different countries,we sincerely hope you and hand in hand ,create the glorious future altogether.




Specification

Roller station 16Steps
Under Frame 350H-beam, Welded structure
Shaft diameter(Solid) 70mm-0.01~-0.03(with key-way)
Shaft material(Hard) High grade 45# steel,heated and quenched,cylindrical grinding,



Roller material(Hard)

Cr12,heated and

Quenched,polishing

Bearing Type Standard
Transmission Gear Heat treatment
Motor Power 5.5KW(Lichao,Shanghai)
Forming Speed 0-20m/min(Non-Stop)
Hydraulic Cutting Tracking Length To Cut
Pump power 5.5 KW
Hydraulic pressure 20 Mpa
Voltage Standard 380V/3Phases/50Hz
Cutting die Cr12Mov, Quenched processed


Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
