Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan

Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan
Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan

Large Image :  Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan

Product Details:
Place of Origin: China
Brand Name: cangzhou fms
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan Method: Hydraulic Pressure
Hydraulic Station Power: 7.5kw Weight: 2.5T
Roller Material: 380V 3phase 50Hz Feeding Width: 0.3-0.8mm
Material Thickness: 8-12 M/min Appearance Size: 6500mm*1500mm*1300mm
High Light:

gi corrugated sheet roll forming machine

,

zinc corrugated sheet roll forming machine

,

gi steel sheet roll forming machine

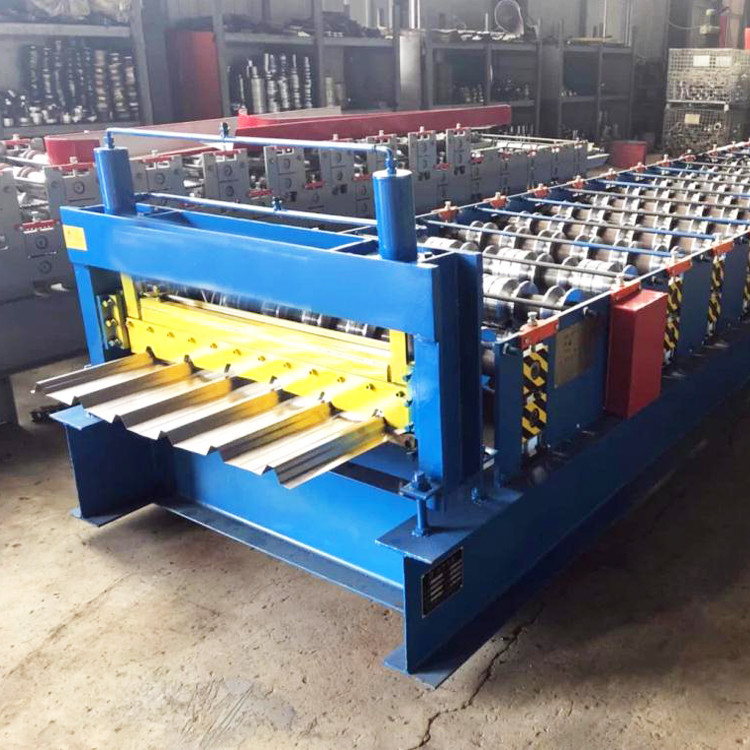

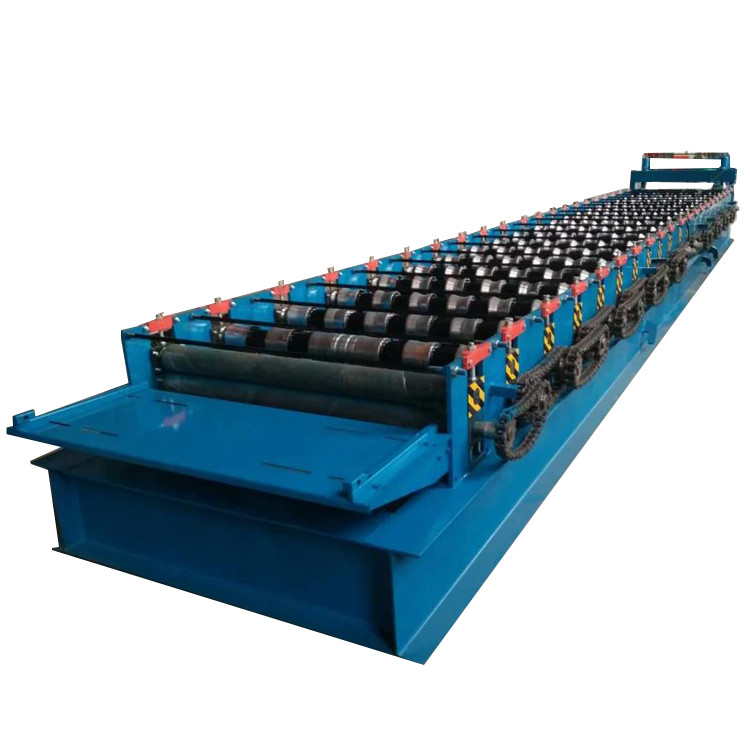

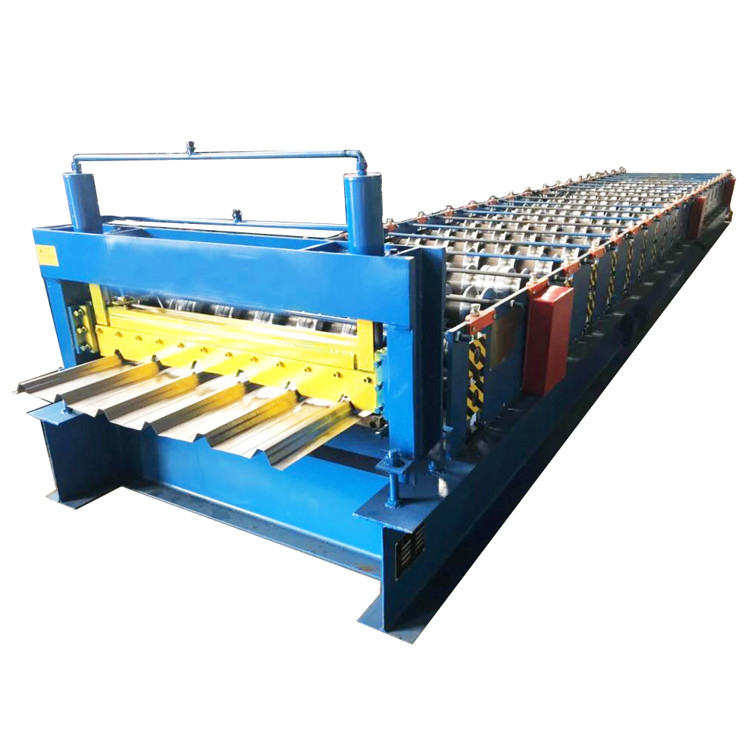

Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan



   Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan. This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.



Specification
ding host Model roof tile making machine
Forming size 6500mm*1500mm*1300mm
weight 2.5T
Host big frame structure Frame welded
Roll station 13row
Axial material 45# steel
Out diameter of shaft Φ75mm
Roller materials 45# steel hard chromium plating
Drive By chain
Sprocket chain 1 inch
Main power 5.5 + 4 kw
Working speed 8-12 m/min
Material thickness 0.3-0.8mm
  Made board 18mm




Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
