Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm | Method: | Hydraulic Pressure |
|---|---|---|---|
| Hydraulic Station Power: | 7.5kw | Hydraulic Oil: | 40# Hydraulic Oil |
| Roller Material: | 380V 3phase 50Hz | Feeding Width: | 1200 Mm,1000mm |
| Productivity: | 20-25m/Min | Appearance Size: | 8580mm*1550mm*1510mm |
| High Light: | hydraulic roofing sheet roll forming machine,1200mm roofing sheet roll forming machine,1200mm sheet metal roll forming machines |
||

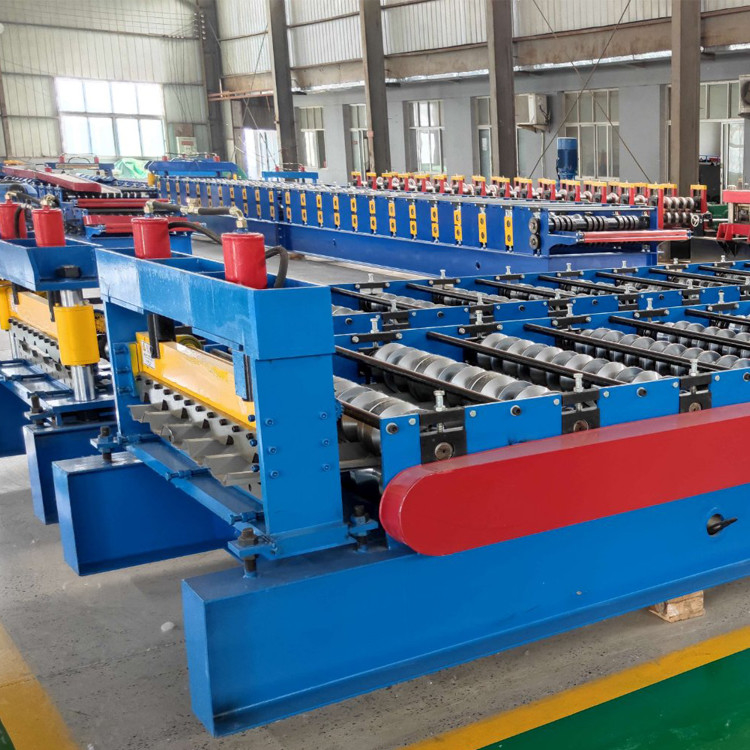

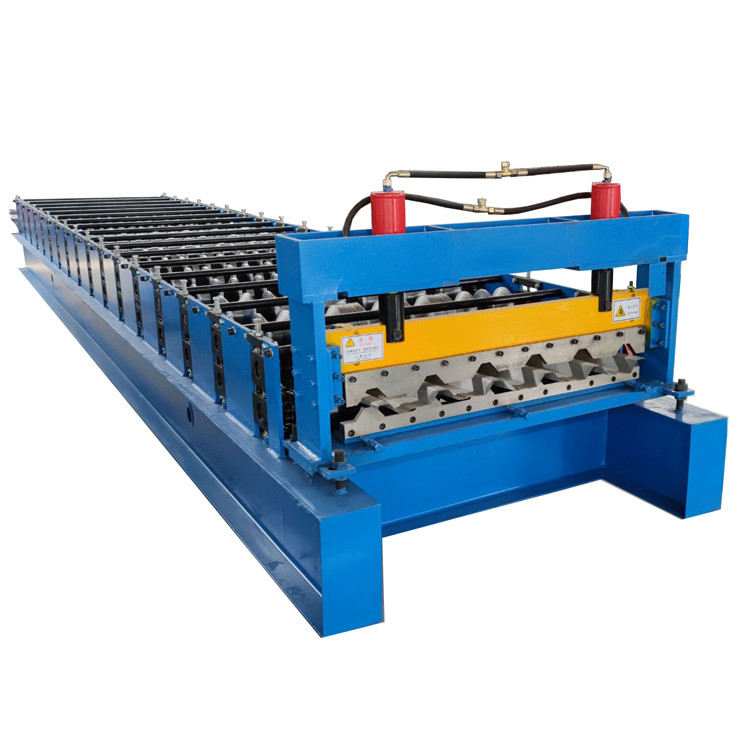

Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm
Main machine
The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.
| Machine details | |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame | 300 H steel |
| productivity | 20-25 m/min |
| Middle plate | 16 MM |
| hydraulic station power | 7.5 KW |
| hydraulic pressure | 10-12MPa |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 8580mm*1550mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
