Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine
Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine

Large Image :  Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: cangzhou fms
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine Usage: Roof, Wall
Suitable Material: PPGI Gi Width: 1250mm As Custom Profile
Speed: 30m/Min Roller Material: 380V 50Hz 3phases
Motor: 5.5kw Thickness: 0.3-0.8mm
Specification: 7.8X1.5X1.7M Rollers: 45# Steel As Customer Require
High Light:

ppgi roofing tile making machine

,

1250mm roofing tile making machine

,

ppgi roof tile roll forming machine

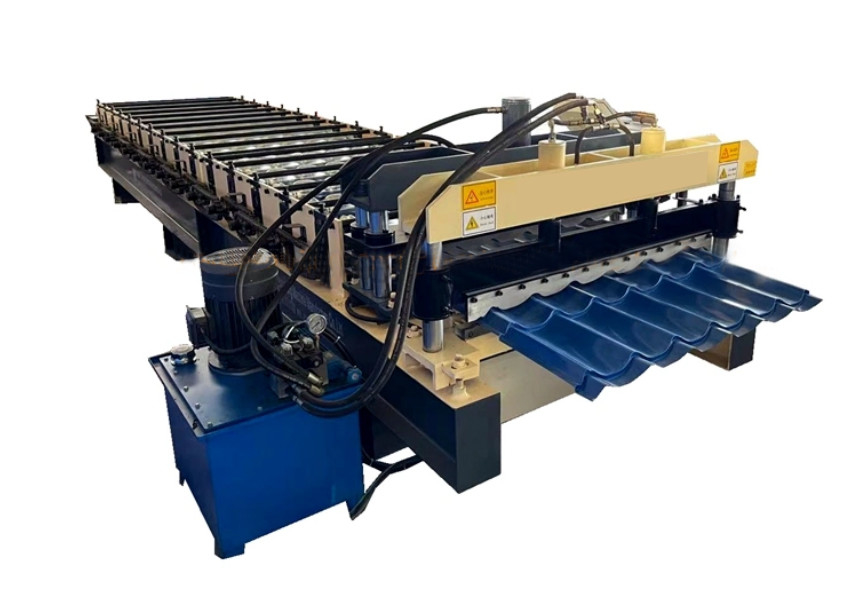

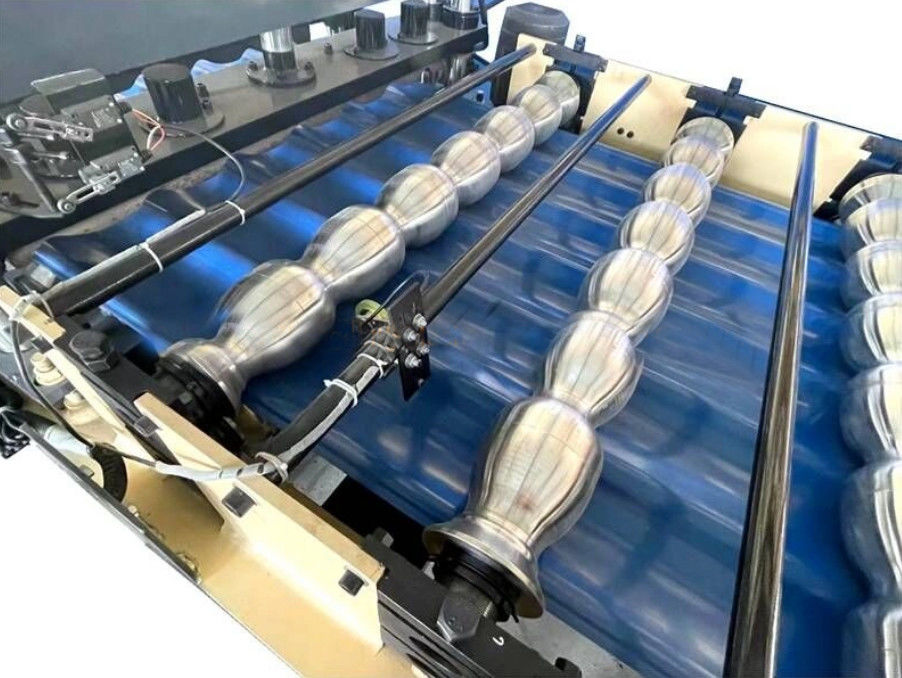

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine



    Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine.Roofing Tile Making Machine Glazed Tile step roll forming machine , suitable for PPGI material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world


Specification


Coil required Material PPGI GI AL
Width 914/925/1000/1200/1220/1250mm
Thickness 0.3-0.7mm , as custom order


Power required
Power 380V 50Hz 3 Phase , as custom order
Main Motor 5.5KW Siemens Brand
Cutting Motor 4KW Siemens









Machine
Support Frame 400 H Steel 10mm
Forming Station 14 rows as profile
Structure 18-20mm
Shaft 75mm
Roller 45# Steel with heat treatment
Chains 1.2 inch
Bearings Standard as custom order
Speed 15-30m/min
Electric Components Delta and Siemens
Size 7.5*1.3*1.6M
Weight 4T




Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
