8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure

8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure

8 rib roof tiles making machine

18 sections roof tiles making machine

simple roof tile roll forming machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Contact Us
Request A Quote
8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure
8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure 8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure
Product Details
Product Name:
8 Ribtype Roof Tiles Making Machine With 18 Stations Simple Structure
Production Capacity:
10-15m/min
Key Selling Points:
Long Service Life
Work Speed:
10-15m/Min
Machine Weight:
5000 Kg
Roller Material:
380V 50Hz 3phases
Control System:
PLC
Forming Speed:
10-20m/min
Highlight:

8 rib roof tiles making machine

,

18 sections roof tiles making machine

,

simple roof tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price 380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Big Wave 4m / Min Roof Tile Roll Forming Machine online Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price
Good price Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine online Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

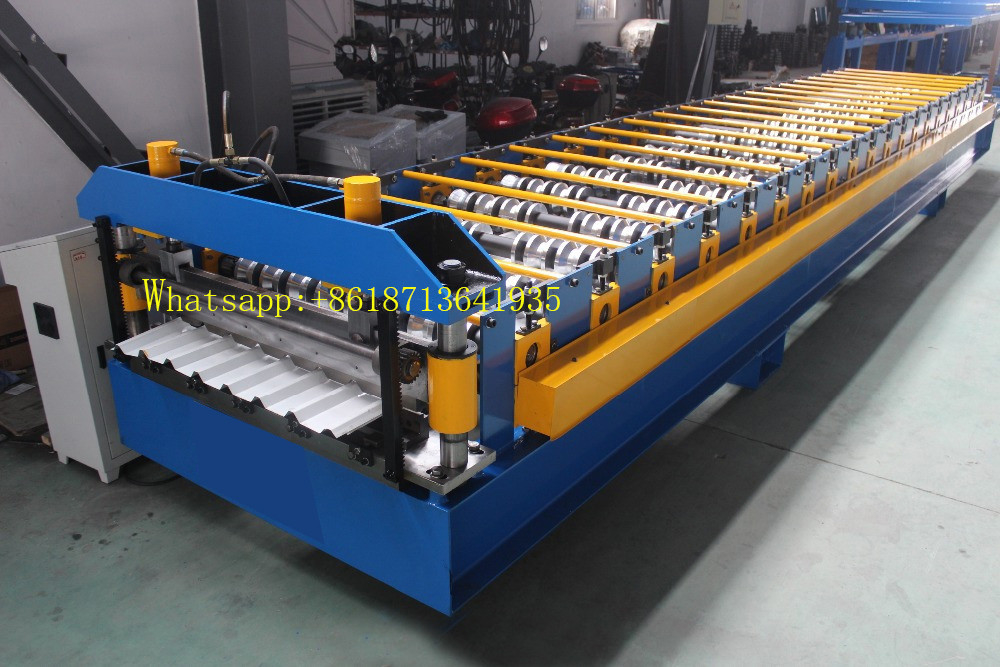

8 Ribtype Roof Tiles Making Machine With 18 Stations Simple Structure



    CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.


Specification


Description

Explaination
Working speed
10-20 m/min(Shear time is not included)
Pressed plate thickness
0．3-0．8mm
Control mode
Siemens PLC
Discharging rack
5T electric discharging rack
Number of molding passes
22 lanes
Roll material
After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter
轴材质及轴径
45# Steel finishing,Shaft diameter is￠70mm
Main engine power
7.5kw
Power of hydraulic station
3kw
Hydraulic pressure
12Mpa
Scissors material
Cr12Mov, quench HRC 58-62℃
Length tolerance
3m±1.5mm
Voltage
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode
1.0 inch single row chain




Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.



8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure 0
