Product Name: | Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine | Method: | Hydraulic Pressure |
---|---|---|---|
Thickness Range: | 0.3-0.8mm | Work Speed: | 10-15m/Min |
Machine Weight: | About 5 Tons | Roller Material: | 380V 3 Phase 50Hz |
Specification: | 6300mm*1500mm*1500mm(L*W*H) | Customized: | Customized |
High Light: | 3phase roof tile roll forming machine,ibr roof tile roll forming machine,rib type roof tile forming machine |

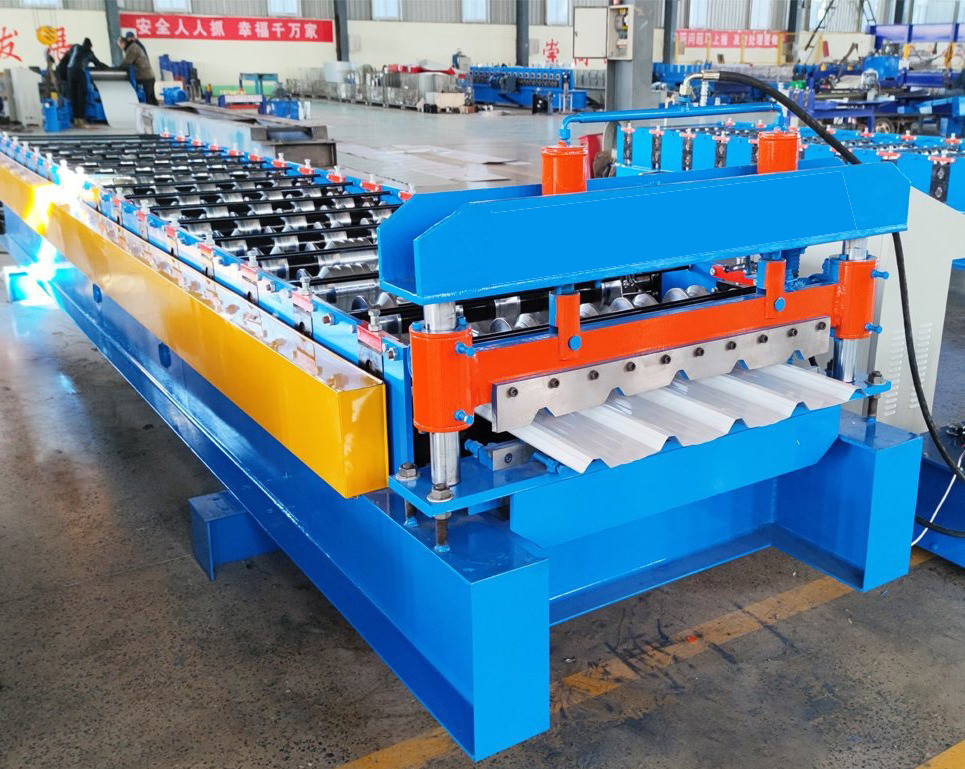

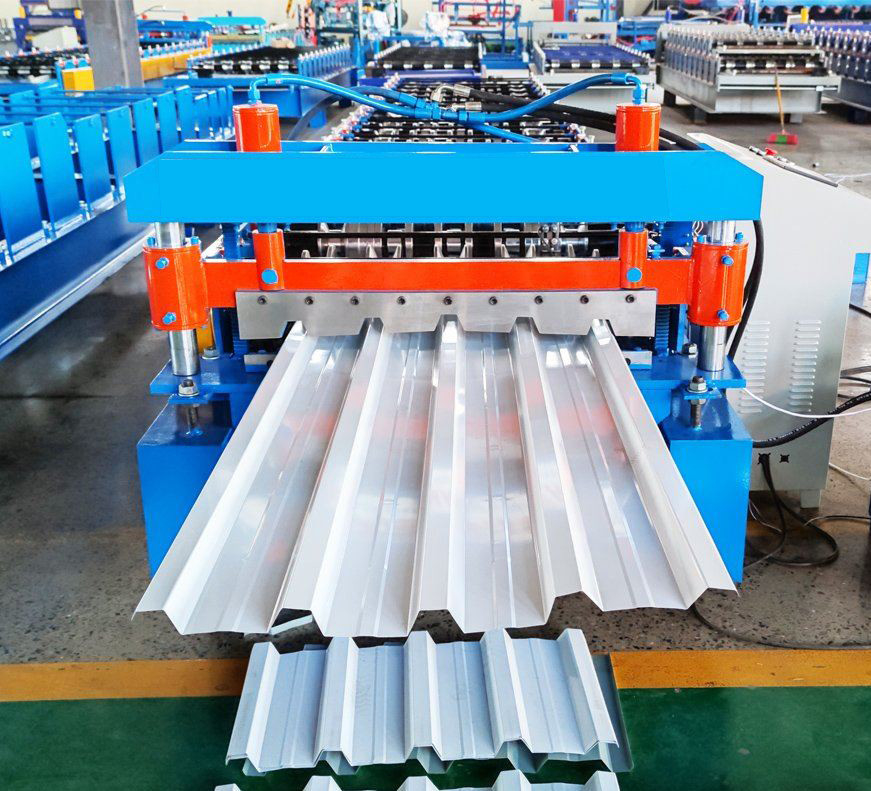

Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine
Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine.It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 925mm, thickness range is from 0.25mm to 0.8mm. We adopt 16mm thick wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine | |
Main motor power | 5.5kw |
Drive | 1'' single chain |
Type: | Wall board |
Main shaft dia | ¢70mm |
material | 45# forge steel and quenched |
Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
Roll station | 18 groups |
Raw material | 0.3-0.8mm |
Coil width | 925mm |
Working speed | 10m--15m/min(Exclude cutting time) |
Length Tolerance | ±1.5mm |
Weight of machine | About 5 ton |
Size of machine | About 8500×1200×1500mm L x W x H |
Color of machine | Yellow and Blue |
Coder | Omron, made in Japan |
Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
Computer operating panel | touching screen |
Other electrical element | Schneider |
Cutting | Hydraulic cutting. Auto cutting when reach the set length |
Hydraulic power | 3KW |
Blade material | Cr12mov,quenched 58°-62° |
Working pressure | 16mpa |
Cutting tolerance | +/- 1.0mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
