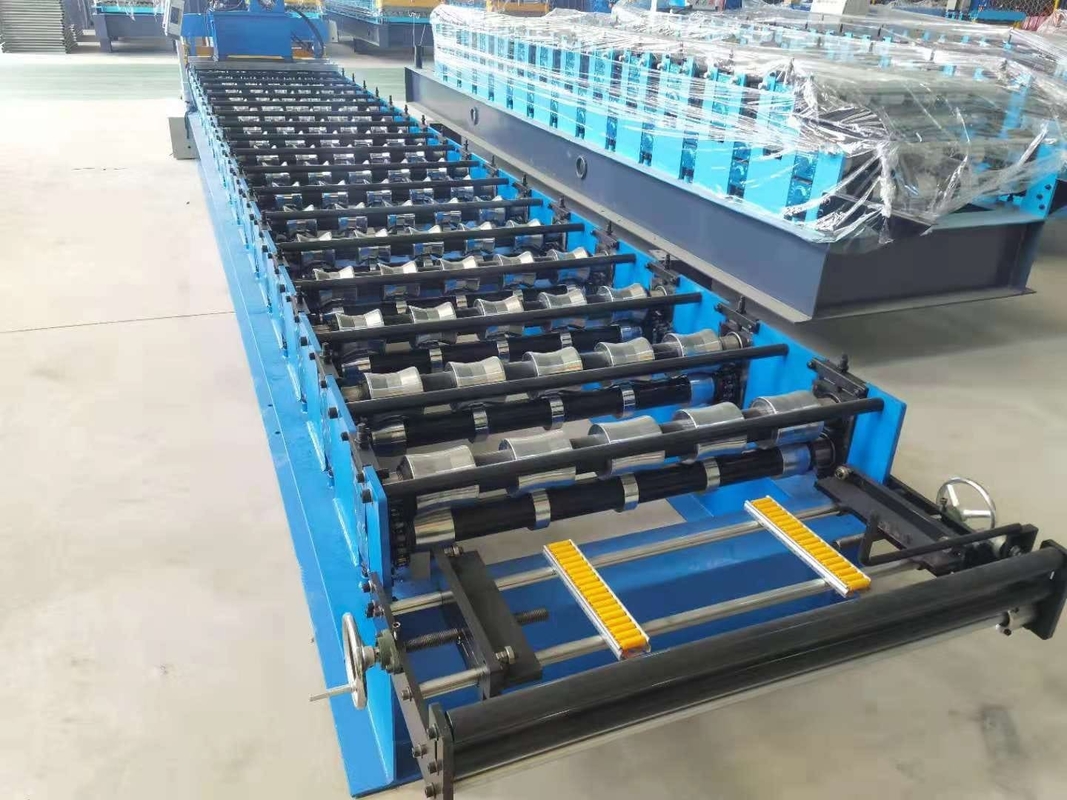

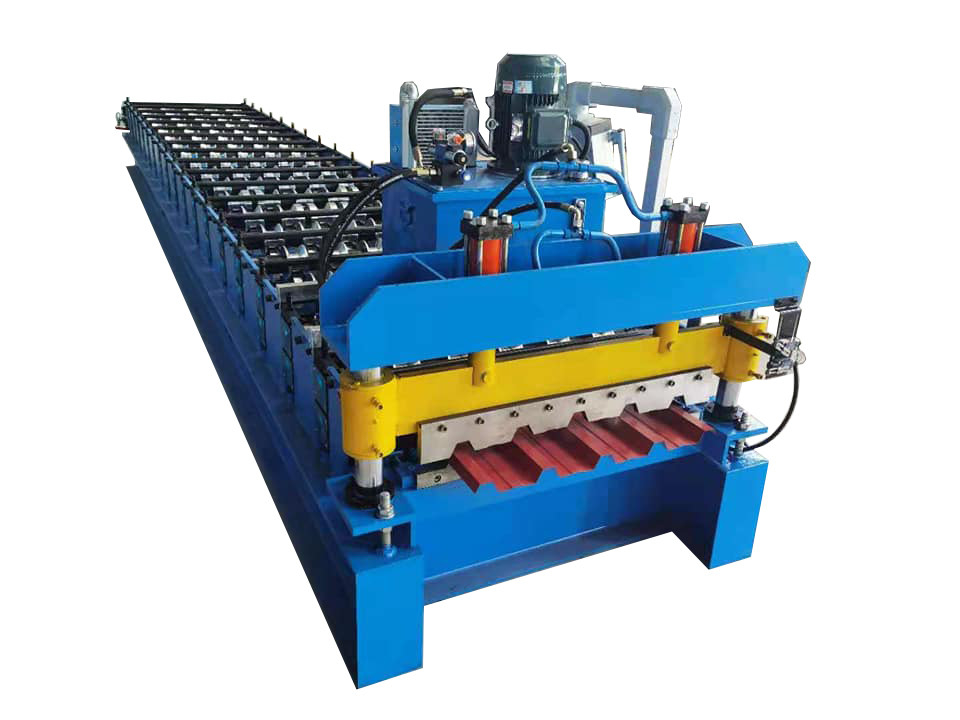

Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet

Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet
Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet

Large Image :  Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Trapezoidal 5 Rib Roofing Roll Forming Machine IBR Sheet Roll Forming Machine Transmission Method: Hydraulic Pressure
Length Tolerance: ± 2.0 Mm Cutting And Pressing System: Hydraulic
Control: PLC Drive Type: By Chain Or Gear Or Gearbox
Voltage: 380V 3Phase 50Hz As Your Request
High Light:

trapezoidal roofing roll forming machine

,

5 rib roofing roll forming machine

,

trapezoidal ibr sheet roll forming machine

Trapezoidal 5 Rib Roofing Roll Forming Machine IBR Sheet Roll Forming Machine

   Trapezoidal 5 Rib Roofing Roll Forming Machine IBR Sheet Roll Forming Machine.IBR Roofing Sheet Roll Forming Machine creates Exposed Fastening Rib-Roof Metal Panels which has many distinctive, aesthetic types based on rib height and rib spacing.Operates in continuous lengths.Suitable not only for Roofing but also for Wall Cladding, Decorative Panels, and Fencing. Common type: Trapezoidal Roofing Roll Forming Machine, 5 Rib Roofing Roll Forming Machine, 6 Rib Roofing Roll Forming Machine, 9 Rib Roofing Roll Forming Machine, Trimdek Roofing Sheet Roll Forming Machine.



Specification

Weight of main part 10 tons (as actual situation )
Rolling speed 12-14 m/min (EECO)
18-20 m/min (Eco, standard)
Material of rollers 45#steel / ball bearing steel
Electric power 3.7 kW-11 kW
Station Quantity
18-24 stations
Steel Thickness
0.2-0.8 mm
Coil Width
914-1450 mm
Material IGI, GL, PPGI, PPGL
Transmission System Hydraulic, or Gear motor driven by Inverter
Control System PLC, Touch Screen HMI


Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
