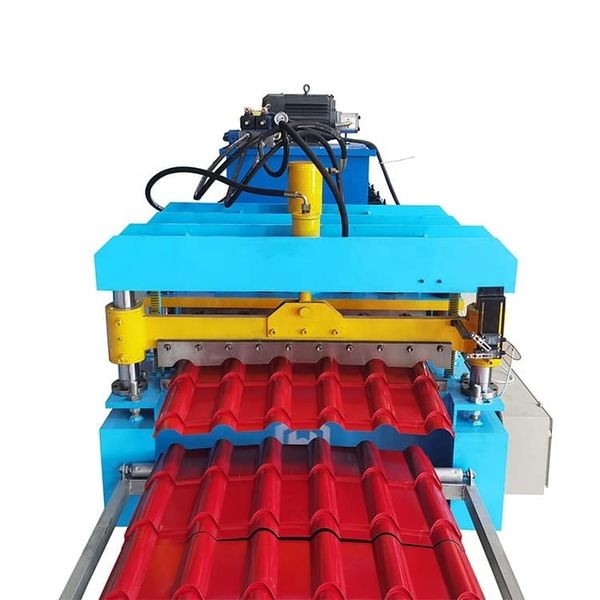

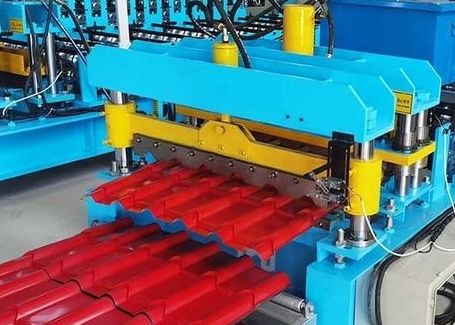

Super High Speed Hydraulic Step Tile Roll Forming Machine Low Noise

Super High Speed Hydraulic Step Tile Roll Forming Machine Low Noise
Super High Speed Hydraulic Step Tile Roll Forming Machine Low Noise Super High Speed Hydraulic Step Tile Roll Forming Machine Low Noise

Large Image :  Super High Speed Hydraulic Step Tile Roll Forming Machine Low Noise

Product Details:
Place of Origin: China
Brand Name: cangzhou fms
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise Method: Hydraulic Pressure
Brick Raw Material: Color Steel Thickness Range: 0.3-0.8mm
Machine Weight: About 5 Tons Roller Material: 380V 3phase 50Hz
Material Of Roller Shaft: 45# Forged Steel Customized: Customized
High Light:

hydraulic step tile roll forming machine

,

lownoise step tile roll forming machine

,

hydraulic tile roofing roll forming machine

Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise



   Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise.Metal Tile Shingle Roofing Sheet Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1250mm, thickness range is from 0.3mm to 0.8mm. We adopt wall panel type to make machine frame strong. Usually it can run with the max speed to 7m/min, PLC with touch screen operation make the machine simple and easy for usage.

Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table


Specification

Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise
Main motor power 5.5kw
Drive 1'' single chain
Type Wall board
Main shaft dia ¢76mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Roll station 18 groups
Raw material 0.3-0.8mm
Coil width 1250mm
Working speed 3m--7m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 5 ton
Size of machine About 7500×1800×1500mm L x W x H
Control PLC Panasonic, 380V 50HZ,3phase (Also depend on client)
Computer operating panel touching screen
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm



Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
