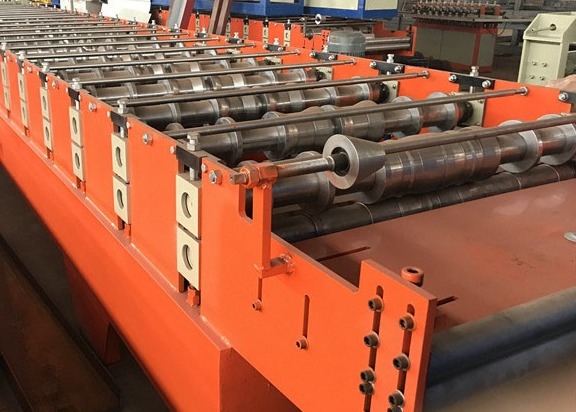

0.3mm Trapezoidal Sheet Forming Machine T35 Roof Zinc Making Chain Transmission

0.3mm trapezoidal sheet forming machine

chain transmission trapezoidal sheet forming machine

chain transmission trapezoidal cold forming machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Trapezoidal Sheets T35 Roof Zinc Making Industriemaschin Machine For Russia

Dimension(L*W*H):

6500*1300*1100mm

Dimension(l*w*h):

1000mm

Weight:

6.5t

Speed:

12m/Min

Voltage:

380V 3phase 50Hz

Core Components:

Engine, Motor, PLC, Pump, Other

Roller Material:

45# With 0.05mm Chrome

Highlight:

0.3mm trapezoidal sheet forming machine

chain transmission trapezoidal sheet forming machine

chain transmission trapezoidal cold forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

Trapezoidal Sheets T35 Roof Zinc Making Industriemaschin Machine For Russia

Trapezoidal Sheets T35 Roof Zinc Making Industriemaschin Machine For Russia.We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE.Now our Trapezoidal sheets t35 roof zinc making industriemaschin machine have been exported to many countries, the most important is that all you need can be customized.

Article No.	Item Name	Specification
1	Width of feeding material	1250 mm coil sheet
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	9-15 stations
4	Shaft Diameter	55-95 mm
5	Productivity	8-12 m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	4.5 ton
9	length	7.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	7.5 kw
14	Driving way	Chain transmission
15	Chain size	1.5 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
