Name: Horizontal Wave Sheet PPGI Tile Roll Forming Machine For Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Trapezoid 760
Price: 16,000.00 USD
Availability: InStock

Home > products > Roof Tile Roll Forming Machine >

Horizontal Wave Sheet PPGI Tile Roll Forming Machine For Roof

ppgi sheet tile roll forming machine

380v tile roll forming machine

ppgi roof tile forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Trapezoid 760

Request A Quote

Product Details

Product Name:

Horizontal Wave Roof Sheet Machine For South Africa

After-sales Service Provided:

8-12m/min

Raw Material:

PPGI/Galvanized Sheet

Voltage:

380V 50Hz 3phases

Weight:

10 Tons

Feeding Width:

1250mm

Rolling Thinckness:

0.3mm-0.8mm

Motor:

7.5KW

Highlight:

ppgi sheet tile roll forming machine

380v tile roll forming machine

ppgi roof tile forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

25 Sets Per Month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

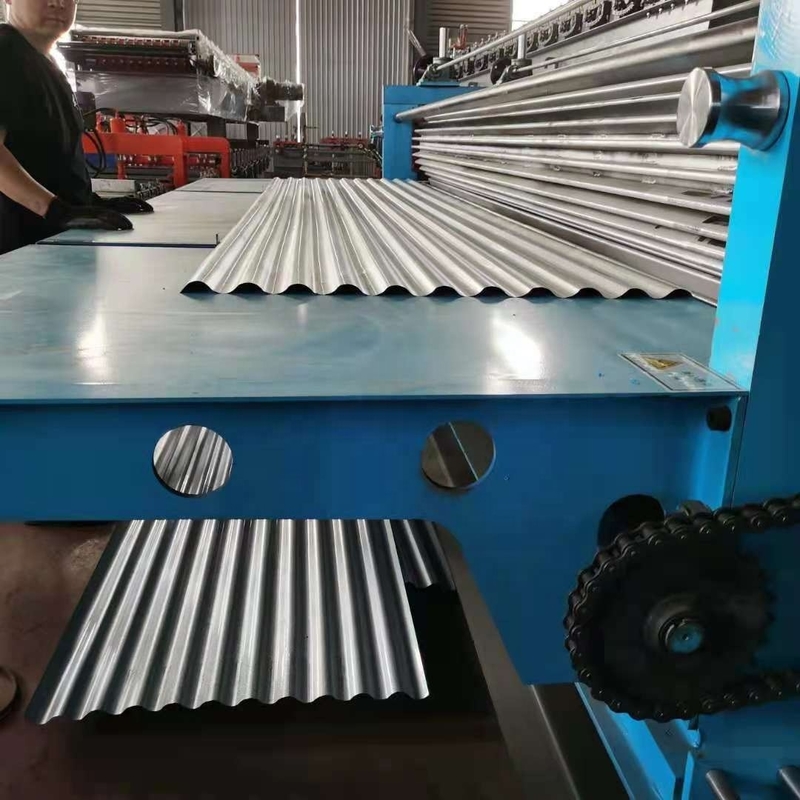

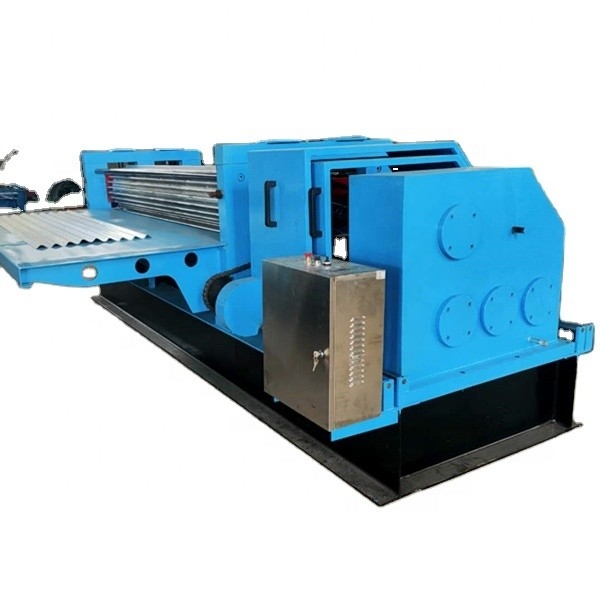

Horizontal Wave Roof Sheet Machine For South Africa

Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.

Note:

The effective width is depend on the raw material width.

The Panel length is depend on the machine Width.

Machine width: 8ft/10ft/12ft (PLS choose according to your needs)

Specification

NO	Name		Specification	Mark
1.	Raw material	Type	Galvanize Steel
		Thickness	0.15-0.3mm
2.	Forming machine	Roller station	One feeding station+One Forming Station
		Material of shaft	Mn-Fe-C
		Drive way	Motor
		Frame	Welded-Steel Plate
3.	Power	Motor	7.5KW
		Voltage	380V 50HZ
4.	Power	Main motor	4KW
		voltage	220V 50HZ
5.	Brand	Motor Brand	SIEMEN
6.	Speed	6-14m/min
7.	Labor	Four workers
8.	Delivery Time	30 working days

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
