Home > products > Roof Tile Roll Forming Machine >

Aluminium 6 Ribs 0.5mm Corrugated Roof Tile Making Machine High Capacity

aluminium corrugated roof tile making machine

0.5mm corrugated roof tile making machine

6 ribs tile roll forming machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity

Method:

Hydraulic Pressure

Brick Raw Material:

Color Steel

Tolerance:

0.5mm

Speed:

High Grade 45# Steel

Roller Material:

380V 3phase 50Hz

Highlight:

aluminium corrugated roof tile making machine

0.5mm corrugated roof tile making machine

6 ribs tile roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

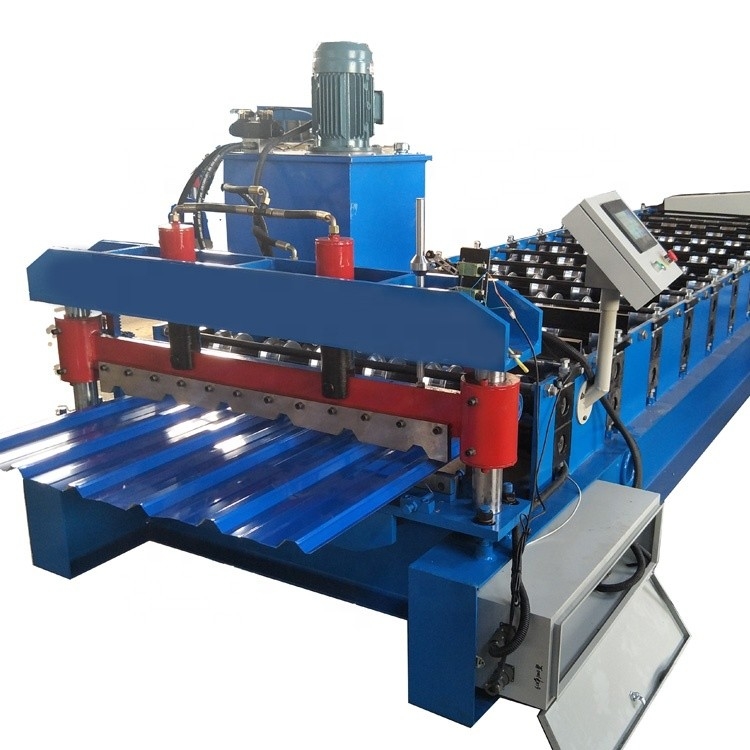

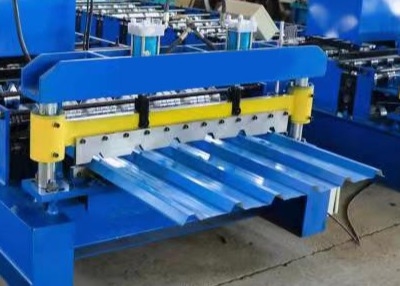

Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity

Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity:

Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table

Application:

Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers.

No.	Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity
1	Suitable material	color steel sheet, galvanized steel sheet, aluminium sheet
2	Material width	1250mm or as your required
3	Material thickness	0.3-0.8 or as your required
4	Working speed	8-12m/min, can be 20-25m/min
5	Main motor power	5.5kw with cycloidal with reducer
6	Hydraulic pump power	4kw
7	Electrical control system	PLC control system with inverter
8	Shaft diameter	75mm
9	Roller station	15 rows, depend on your panel profile drawing
10	Roller	high grade 45# steel, hard chrome plating
11	Working time	24 hours
12	workers	1-2 only
13	Cutting head material	Cr 12 mould steel with quenched treatment
14	Voltage	380V 3Phase 50Hz or as your required
15	Weight	3.5T
16	The machine size	7000mm1500mm1500mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
