IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Place of Origin:

China

Brand Name:

cangzhou fms

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

900 Long Span Roof Roll Forming Machine 7 Ribs High Capacity

Coil Thickness:

0.3-0.8mm

Dimension(l*w*h):

7500X1500X1910mm

Weight:

6.5t

Speed:

12m/Min

Voltage:

380V 3phase 50Hz

Highlight:

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

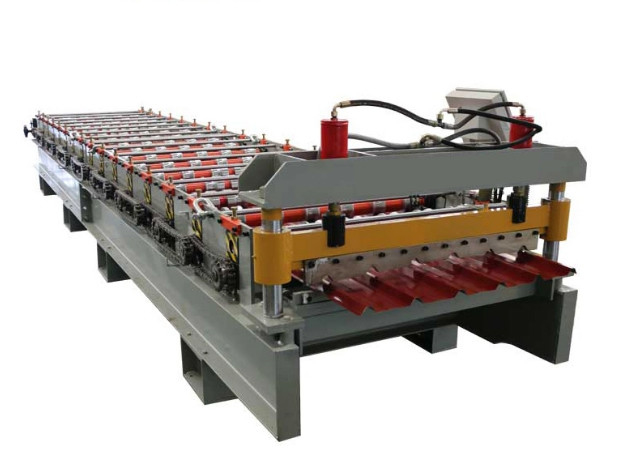

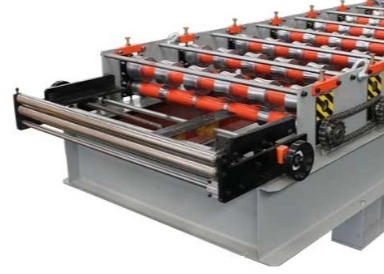

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs.It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Because of price pressure of the material used to manufacture, this product is getting thinner and harder requiring these IBR Rollforming machines to be specially designed to produce and ensure a good quality finished product. It can also be noted that the machines are often required to run 915mm material as well or even 1225mm wide coil.

No.	High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as need
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	10-20m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm
7	Dimension	7500x1500x1910mm
8	Weight	About 7 T
9	Voltage	380V 3phase 50HZ or as the customer's requirements
10	Material of roller	High grade 45# forged steel plated with hard chrome plating
11	Material of cutting	Cr12 mould steel with quenched treatment
12	Working time	Can be 24 hours
13	Workers	1-2 only
