Product Details:
Payment & Shipping Terms:
|
| Product Name: | Customized Auto Wall Panel PPGI Material Roll Forming Machine | Transmission Method: | Hydraulic Pressure |
|---|---|---|---|
| Coil Thickness: | 0.3-0.8/0.8-1.5mm | Specification: | 6500*1500*1400 |
| Control: | PLC | Drive Type: | By Chain Or Gear Or Gearbox |
| Voltage: | 380V 3Phase 50Hz As Your Request | ||
| High Light: | gearbox roof tile roll former,ppgi material roof tile roll former,ppgi steel tile forming machine |
||

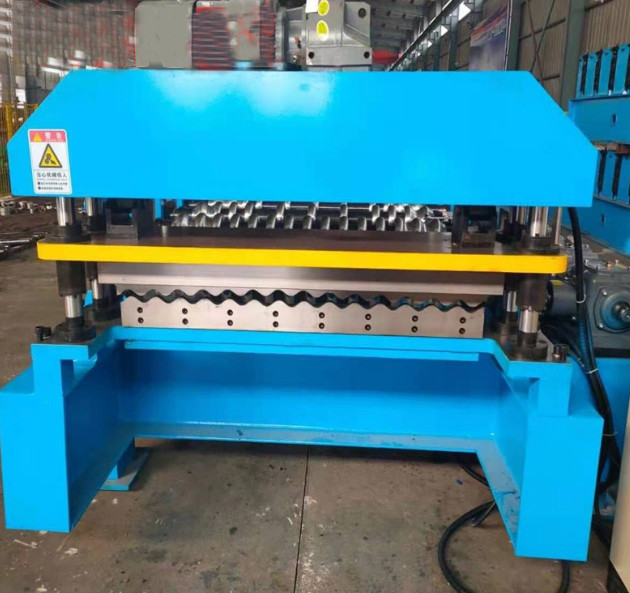

Customized Auto Wall Panel PPGI Material Roll Forming Machine
Specification
| Weight of main part | 10 tons (as actual situation ) |
| Drive mode | chain/ gear / gearbox mode |
| Material of rollers | 45#steel / ball bearing steel |

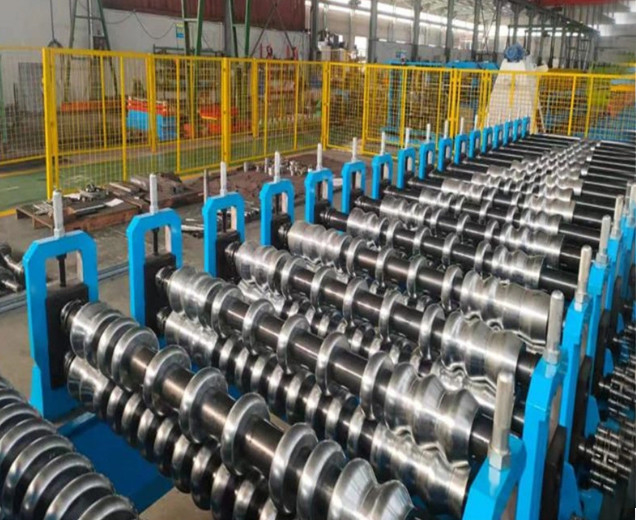

| Number of rollers | 25 rollers or more(as actual situation) |
| Hydraulic motor power | 3 4 5 kw(as actual situation) |
| Forming way | Integral /split forming |
| Motor power | 9.5kw |
| PLC control | Intellengent/international brand/touch screen |
| Colour of machine | any colour(as customer's requirment) |
| Speed of production | 0-12m/min(can be customized) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
