Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Strength Roof Roll Forming Machine Multi Cor Metal Roof Making Machine | Raw Material: | PPGI, Pgl, Gi, Gl, Ppal |
|---|---|---|---|
| Working Speed: | 0-12m/Min Or High Speed | Main Frame: | 350#/400# H-Beam Steel Welded |
| Power: | 9.5kw | Specification: | 9000mm*1600mm*1700mm |
| Voltage: | 380V 3Phase 50Hz As Your Request | ||
| High Light: | ppal roof tile roll forming machine,multicolor roof tile roll forming machine,high strength roof tile roll former |
||

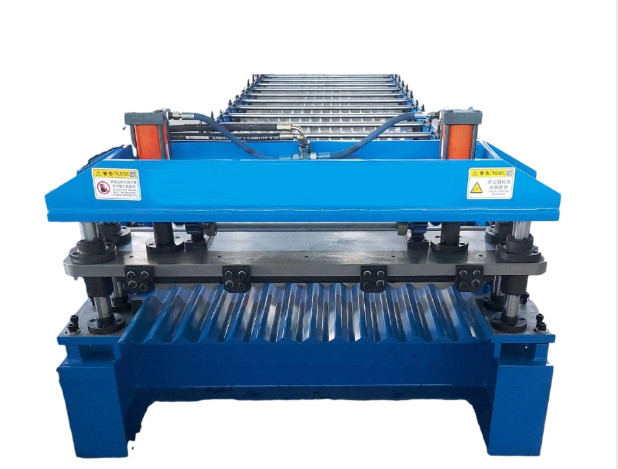

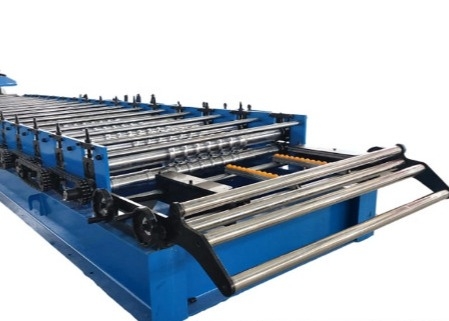

High Strength Roof Roll Forming Machine Multi Cor Metal Roof Making Machine
High Strength Roof Roll Forming Machine Multi Cor Metal Roof Making Machine.Corrugated roof tile sheet roll forming machine can produce corrugated tile or panel which also called wave panel sheets,it is widely used in constructions and buildings,it can be used to build roof and wall.This kind of material can be used in many places such as gyms, warehouses, factories, etc.
Specification
| No. | Item | Unit | Parameter | |
| 1 | Material | Type | PPGI; PPGL; GI; GL; PPAL | |
| Thickness of Material | mm | 0.3-0.8mm | ||
| 2 | Material Width | mm | 762-1450mm | |
| 3 | Production Speed | m/min | 0-12m/min(common) | |
| High Production Speed | ||||
| 4 | Effective Width of Product | mm | 635-1260mm | |
| 5 | Roller Material | 45#, Cr12, GCr15, GCr12MoV | ||
| 6 | Drive Type | By Chain or Gear or Gearbox | ||
| 7 | Motor Power | kW | 9.5 | |
| 8 | Dimension( L * W * H ) | m | 8.5*1.45*1.5 | |
| 9 | Warranty | month | 15 | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
