Color Stone Coated 0.32mm Roof Tile Production Line Servo Motor

0.32mm roof tile production line

servo motor roof tile production line

stone coated roof tile production line

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Color Stone Coated Roof Tile Production Line

Production Capacity:

6-10PCS/MIN

Power:

113kw

Dimension(L*W*H):

65*1.35*1.2m

Part Two:

Shape Cutter Machine

Part Four:

Auto Bottom Glue Spraying Section

Warranty:

1 Year

Steel Plant Thickness:

0.32-0.50mm

Highlight:

0.32mm roof tile production line

servo motor roof tile production line

stone coated roof tile production line

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price

Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

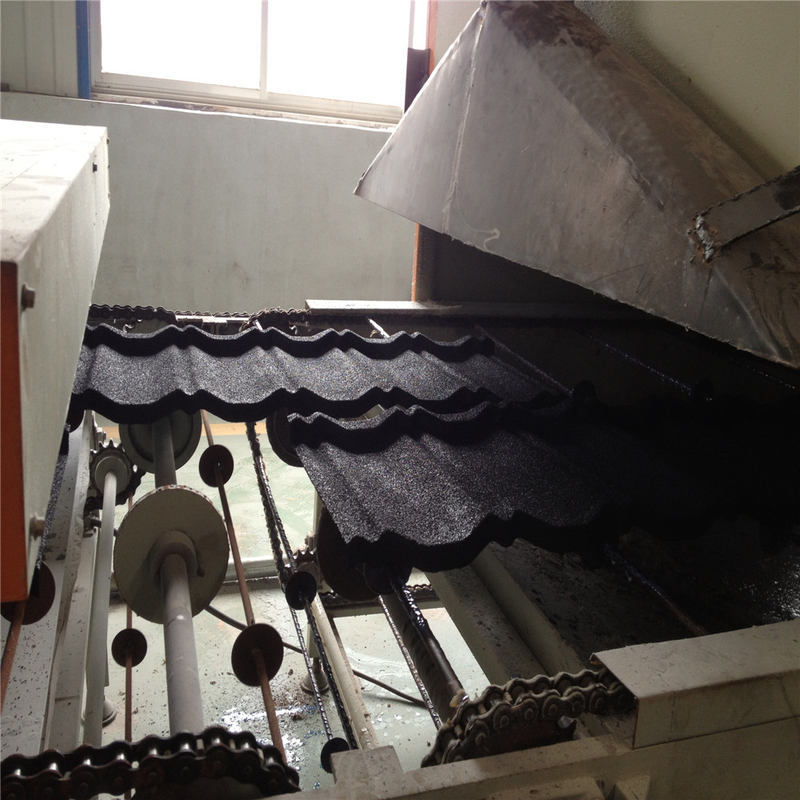

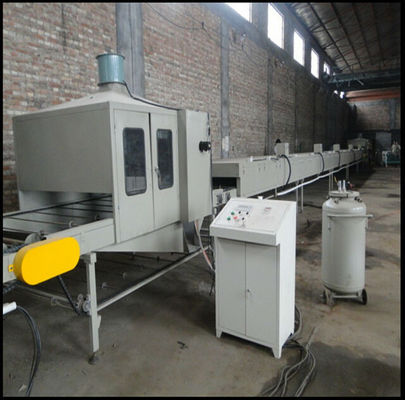

Color Stone Coated Roof Tile Production Line

One benefit of stone coated metal roofing tiles is to protect your home from UV rays and keep it fresher in summer, which means that you spend less money on cooling your home.

The stone coated metal roofing tiles are main commonly used abroad because of their aesthetic look. Stone coated roofing tiles are made up of an Aluminium – zinc alloy coated with naturally mined granules. They come in a variety of profiles. Three common profiles are the shingle, classic and shake profiles.

Specification

Appearance size	400010002000mm
Driving section	3KW Excitation motor or frequency speed regulation (AS per customers’ requirements )
Automatic pressure spray tank	1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor	Servo motor ; Power: 750w ; PLC
Automatic spray gun	4 set (spare parts)
Dust collecting fan	1 set ; Power: 200w
Damp proof lamp	1 pc ; Power: 100w
Conveying device	Chain reciprocating
Air compressor	1 set ; Power: 7.5kw
Dust control of axial flow fan	1 set ; Power: 200w
Agitator	1 set ; Power: 1.5kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
