Features: | Easy Operation | Product Name: | Hydraulic Crimping Roll Forming Machine Curved Arch Roof Sheet |
---|---|---|---|
Raw Material: | PPGI/Galvanized Sheet | Voltage: | 380/50Hz/3PH |
Control System: | PLC | Dimension(L*W*H): | 1600*1200* 1350 Mm |
Motor Power: | 4Kw | Raw Material Width: | 1000mm |
Hydraulic Station Power: | 4KW | Weight: | 2500kg |
High Light: | ppgi roof tile roll forming machine,3ph roof tile roll forming machine,curved arch roof tile roll former |

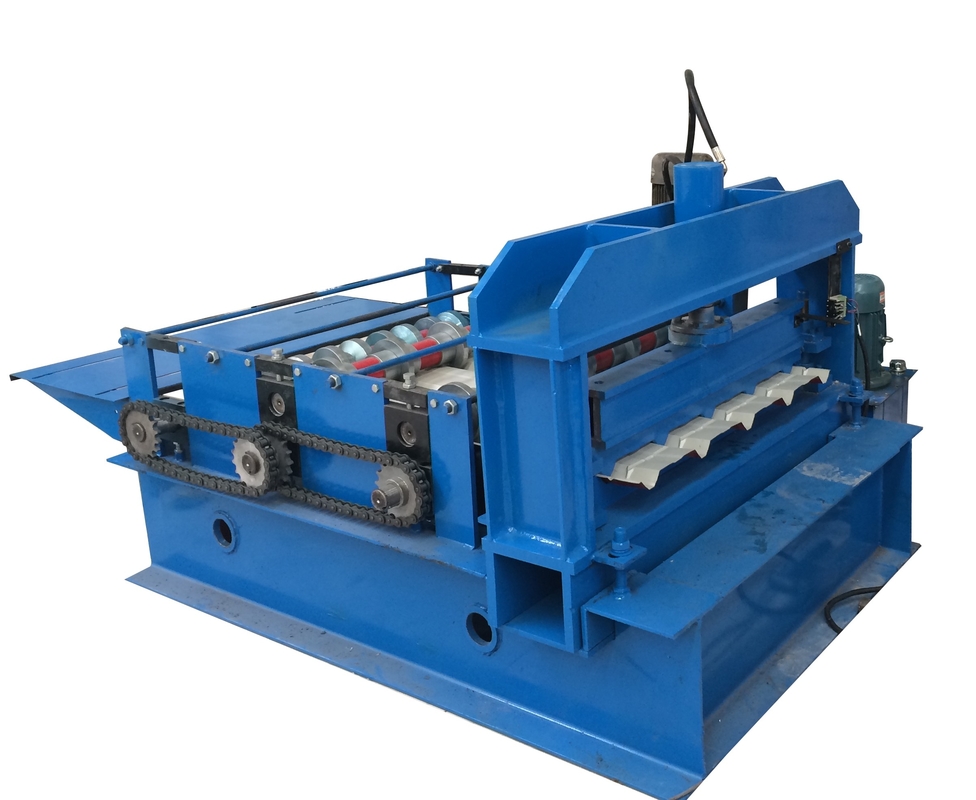

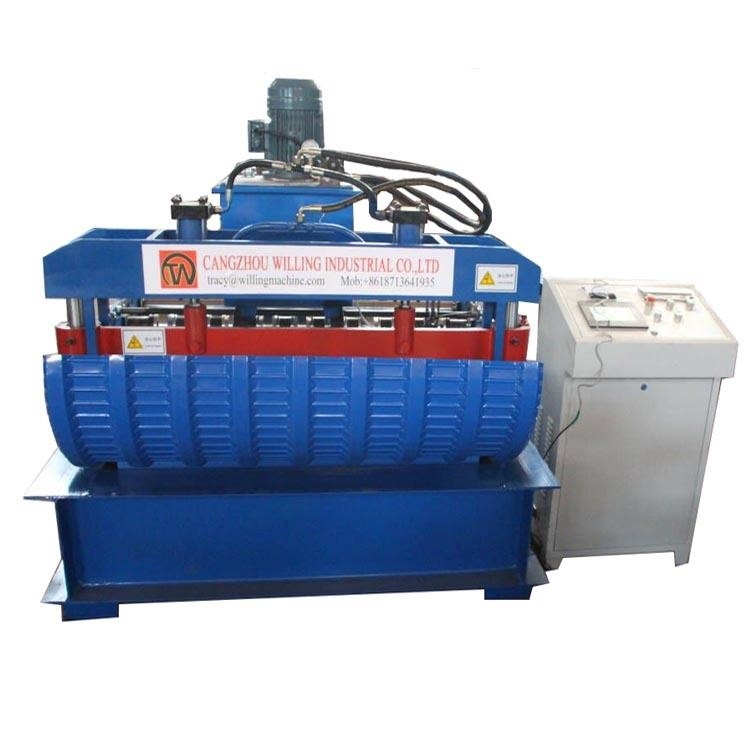

Hydraulic Crimping Roll Forming Machine Curved Arch Roof Sheet
This is a machine designed by our company to solve the water accumulation on the roof. This machine has changed the inefficiency of manual operation before adopting a modern high-efficiency fully automated PLC control system. Because its bending angle can be adjusted greatly and conveniently, the limitations of traditional production are changed.
No. | Item | Description |
1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
2 | Raw Material Thickness | 0.3-0.8mm |
3 | Working Speed | 90deg per 4 min |
4 | Roller Station | 3 Raws |
5 |
Electrical Control System |
Panasonic PLC |
6 |
Motor power |
4 KW |
7 |
Hydraulic Station Power |
4KW |
8 |
Power Supply |
380V/50HZ/3 PH |
9 |
Cutting Accuracy |
±2 mm |
10 |
Driving Mode |
Single Chain 1 inch |
11 |
Material of Shaft |
70 mm 45#steel forged |
12 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively.
