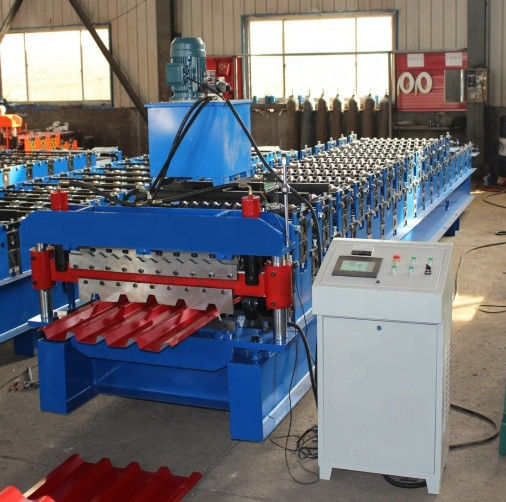

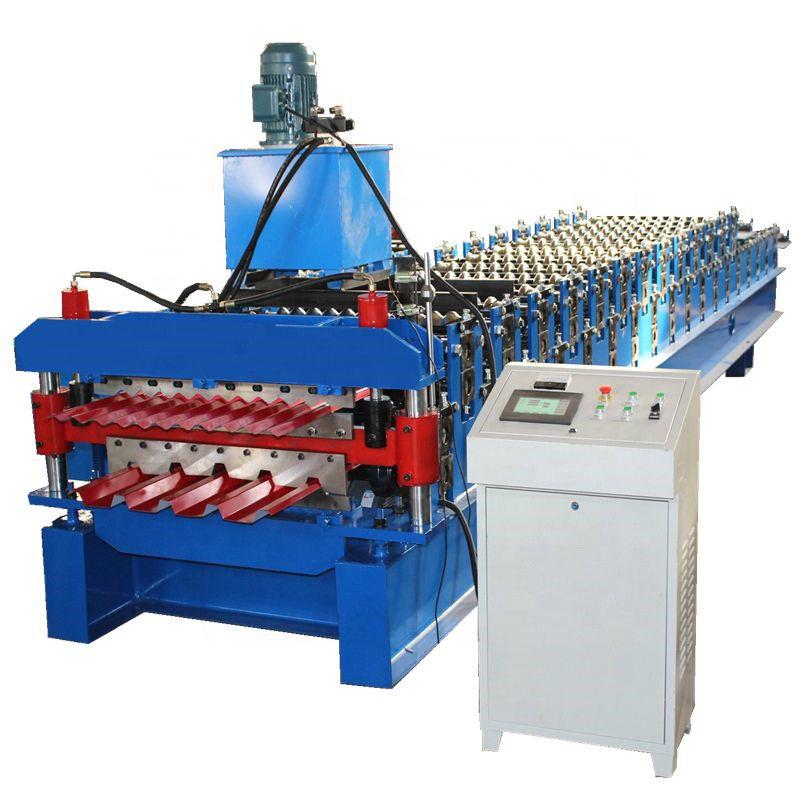

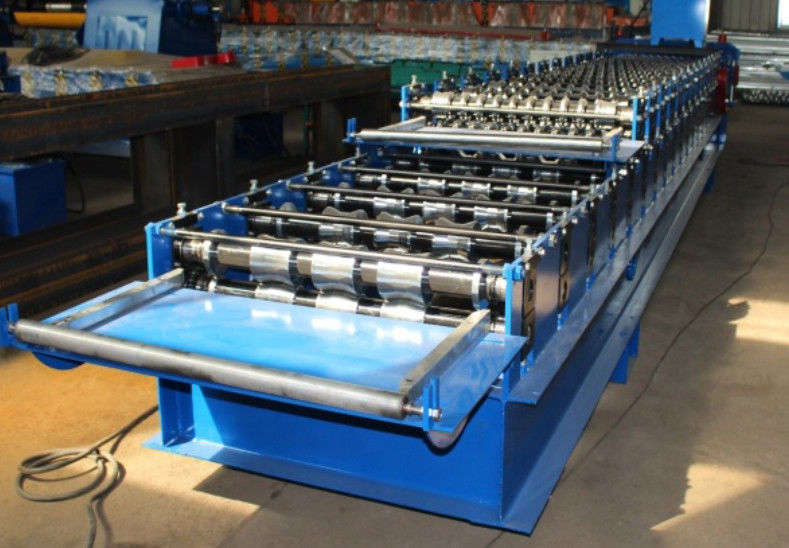

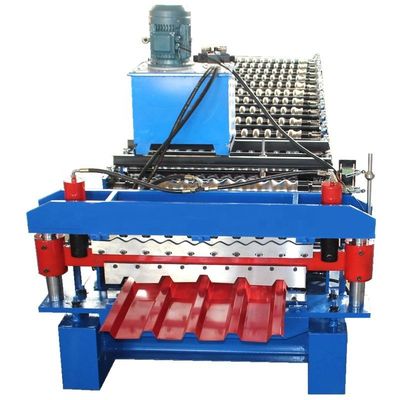

686/762 Corrugated Profile Double Layer Roll Forming Machine

686/762 Corrugated Profile Double Layer Roll Forming Machine
686/762 Corrugated Profile Double Layer Roll Forming Machine

Large Image :  686/762 Corrugated Profile Double Layer Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Double Layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: 686/762 Double Layer Corrugated Profile Roll Forming Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Raw Material: PPGI/Galvanized Sheet Voltage: 380/50Hz/3PH
Control System: PLC Speed: 15-20m/min
Thickness: 0.3 Mm-0.8 Mm Power: 3Kw
Raw Material Width: 925mm Hydraulic Station Power: 3KW
High Light:

versatile double layer roll forming machine

,

686mm double layer roll forming machine

,

profile corrugated roll former

686/762 Double Layer Corrugated Profile Roll Forming Machine



One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.





Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 15-20/min
4 Roller Station 18/16 Raws
5

Dimension (L*W*H)

8500 mm*1200 mm*1200 mm
6 Machine Weight 4800 KG
7

Electrical Control System

Panasonic PLC

8

Drive Motor Power

3 KW
9

Hydraulic Station Power

3 KW
10

Power Supply

380V/60HZ/3 PH

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



This type of tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls and large-span steel structure houses. The raw material can be GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and the service life is 10-15 years



Advantage



This version is mainly used for roof, wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc. It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance and so on Fireproof, rainproof and long service life. Functions such as protection free have been widely used.



686/762 Corrugated Profile Double Layer Roll Forming Machine 0
