Arc Sheet Aluminium Step GL Roof Tile Forming Machine

Arc Sheet Aluminium Step GL Roof Tile Forming Machine

gl roof tile forming machine

arc sheet roof tile forming machine

aluminium step roof tile forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Step Tiles

Contact Us
Request A Quote
Arc Sheet Aluminium Step GL Roof Tile Forming Machine
Arc Sheet Aluminium Step GL Roof Tile Forming Machine Arc Sheet Aluminium Step GL Roof Tile Forming Machine Arc Sheet Aluminium Step GL Roof Tile Forming Machine Arc Sheet Aluminium Step GL Roof Tile Forming Machine
Product Details
Product Name:
Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Raw Material:
PL，GL，PPGI，PPGL
Voltage:
380/50Hz/3PH
Control System:
PLC
Speed:
8-15m/min
Thickness:
0.3mm-0.8mm
Power:
3Kw
Raw Material Width:
1000 Mm
Hydraulic Station Power:
3KW
Highlight:

gl roof tile forming machine

,

arc sheet roof tile forming machine

,

aluminium step roof tile forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price 380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span online Video

Lightweight Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price
Good price Big Wave 4m / Min Roof Tile Roll Forming Machine online Video

Big Wave 4m / Min Roof Tile Roll Forming Machine

Get Best Price
Good price Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine online Video

Steel Structure Metal Roof Roll Forming Machine Metal Roof Making Machine

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

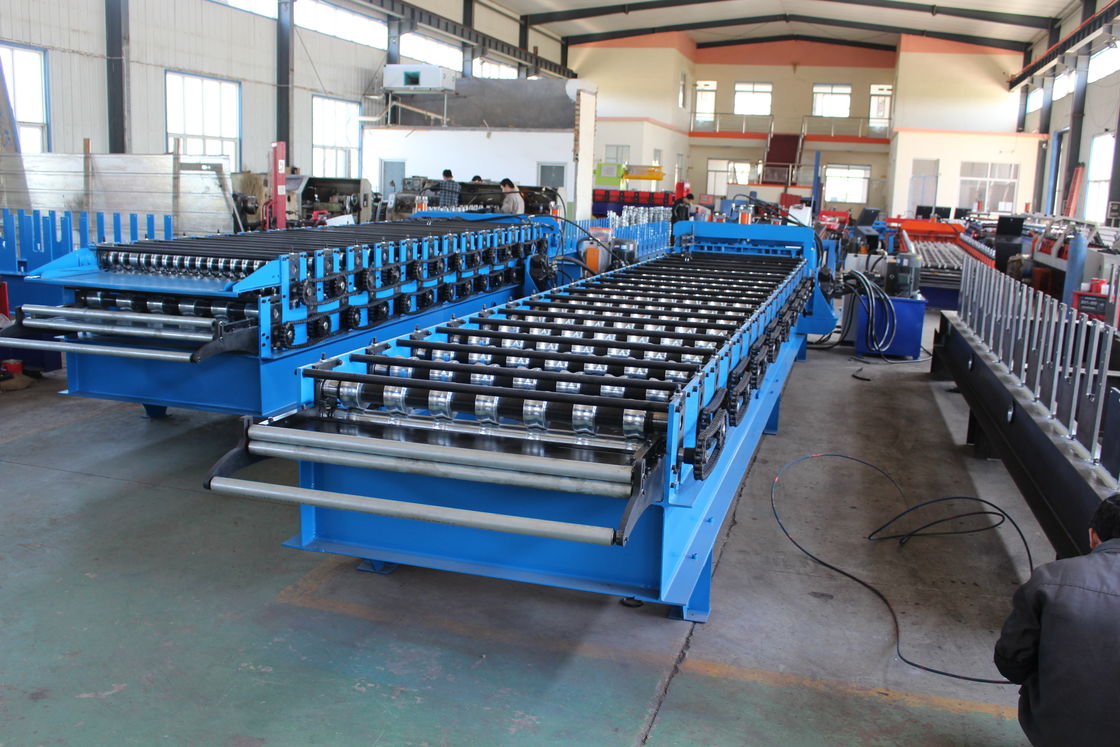

Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine



Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine adopts a fully automatic hydraulic creasing and hydraulic shearing system, which has fast production speed and stable operation, which can effectively save customers' time and labor costs.





Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3mm-0.8mm
3 Working Speed 8-15/min
4 Roller Station 16 Raws
5

Dimension (L*W*H)

 5000 mm*1200 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 3 KW
9

Hydraulic Station Power

 3 KW
10

Power Supply

380V/60HZ/3 PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Due to its good appearance, anti-corrosion and acid resistance, such tiles are mostly used in daily buildings such as warehouses, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.





Advantage



This version is generally used in many types of buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc. It has light texture, rich color, convenient and fast construction, good seismic effect, and long service life. , Maintenance-free and other advantages, has now been widely promoted.
