640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine

640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine

640mm roof tile roll forming machine

ppgl roof tile roll forming machine

ppgl glazed tile roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

steptile

Contact Us
Request A Quote
Product Details
Product Name:
Model 640 Glazed Steptile Roof Tile Roll Forming Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Raw Material:
PL,GL,PPGI,PPGL
Voltage:
380/50Hz/3PH
Control System:
PLC
Speed:
18-20m/min
Thickness:
0.3mm-0.8mm
Power:
3Kw
Raw Material Width:
1000 Mm
Hydraulic Station Power:
3KW
Highlight:

640mm roof tile roll forming machine

,

ppgl roof tile roll forming machine

,

ppgl glazed tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

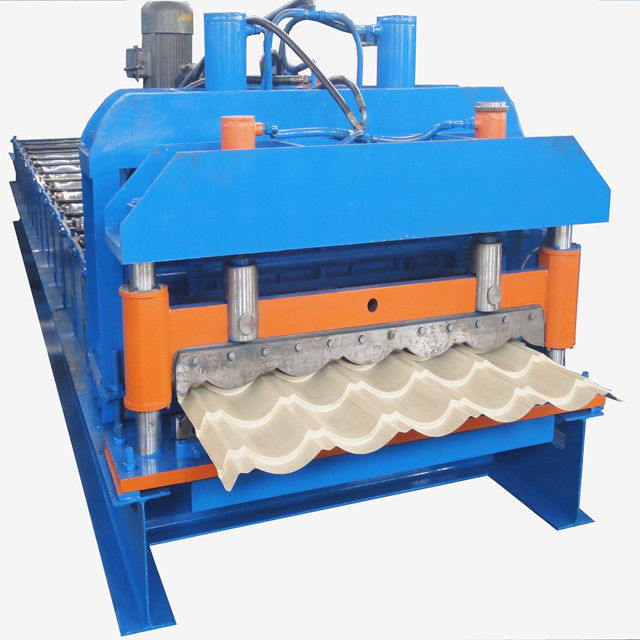

Model 640 Glazed Steptile Roof Tile Roll Forming Machine



Model 640 Glazed Steptile Roof Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.





Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3mm-0.8mm
3 Working Speed 15-20/min
4 Roller Station 16 Raws
5

Dimension (L*W*H)

4500 mm*1200 mm*1200 mm
6 Machine Weight 3800 KG
7

Electrical Control System

PLC

8

Drive Motor Power

3 KW
9

Hydraulic Station Power

3 KW
10

Power Supply

380V/60HZ/3 PH

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



Such tiles are suitable for daily buildings such as warehouses, special buildings, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.





Advantage



Ceramic tiles have anti-corrosion, acid resistance and other functions. It has the advantages of light weight, high strength, beautiful appearance, convenient and quick construction, earthquake resistance, fire resistance, rain and moisture resistance. Long life and other characteristics, so it is widely used in civil and industrial buildings
