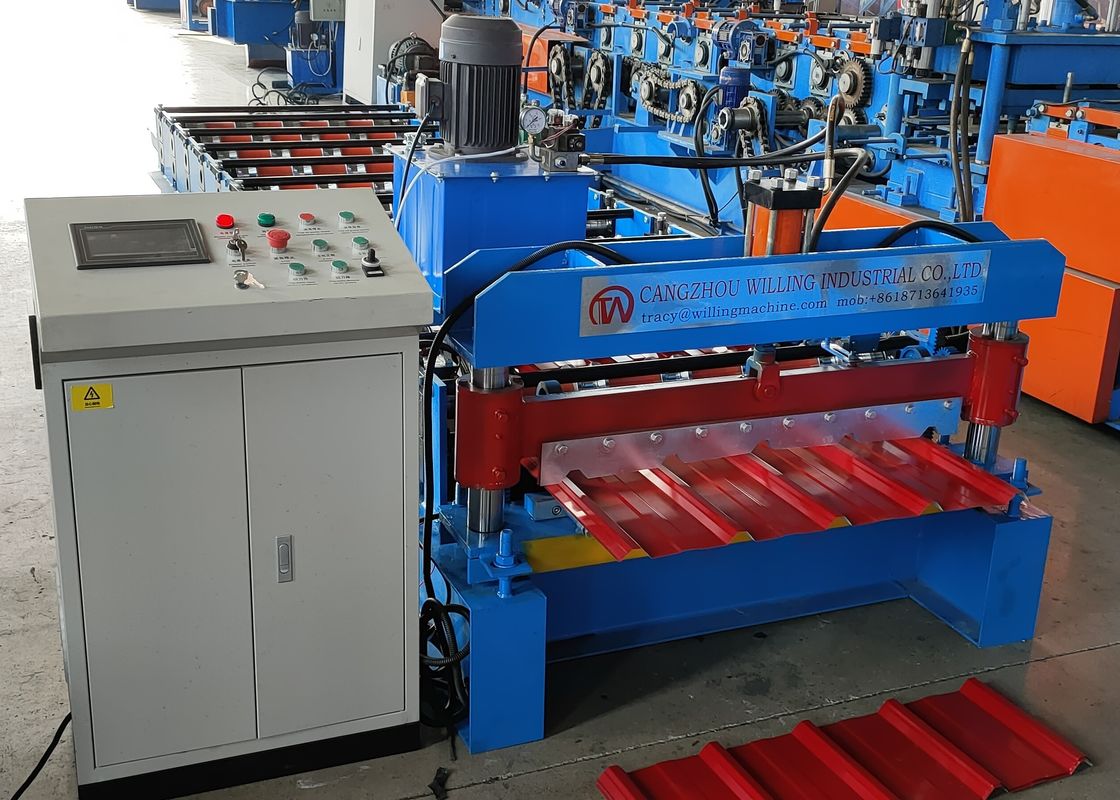

Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine

Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine

Large Image :  Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Corrugated
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Corrugated 840 Touch Screen Roof Tile Roll Forming Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Raw Material: PL,GL,PPGI,PPGL Voltage: 380/50Hz/3PH
Control System: PLC Speed: 15-20m/min
Thickness: 0.3mm-0.8mm Power: 3Kw
Raw Material Width: 1000 Mm Hydraulic Station Power: 3KW
High Light:

Touchscreen Roof Tile Roll Forming Machine

,

840mm Roof Tile Roll Forming Machine

,

840mm corrugated roof roll forming machine

Corrugated 840 Touch Screen Roof Tile Roll Forming Machine



Corrugated 840 Touch Screen Roof Tile Roll Forming Machine is our main model in the African market. The usage rate of its version in Africa is as high as 95%. The machine has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.





Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3mm-0.8mm
3 Working Speed 15-20/min
4 Roller Station 12 Raws
5

Dimension (L*W*H)

4500 mm*1200 mm*1200 mm
6 Machine Weight 3800 KG
7

Electrical Control System

PLC

8

Drive Motor Power

3 KW
9

Hydraulic Station Power

3 KW
10

Power Supply

380V/60HZ/3 PH

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



This type of tile is suitable for daily buildings such as warehouses, special buildings, roofs, walls and large-span steel structure houses, etc. The tiles have anti-corrosion and acid-resistant effects. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. the service life of this tiles is 10-15 years





Advantage



Cangzhou willing industrial is located in Fuzhuang Development Zone, 104 National Road, Botou City, Cangzhou City, Hebei Province. It is a manufacturer specializing in the design, production and sales of cold-formed machinery and composite board assembly lines. The company covers an area of 14,000 square meters and has 88 employees. , The company has strong strength, perfect quality and perfect after-sales service. It is a professional manufacturer of cold-formed machinery and equipment.
