Ibr 686 High Speed 0.25mm Roof Tile Roll Forming Machine Portable

0.25mm roof tile roll forming machine

ibr roof tile roll forming machine

ibr portable roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

IBR

Request A Quote

Product Details

Product Name:

IBR 686 High Speed Productive Roof Tile Roll Forming Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation

Raw Material:

PPGI/Galvanized Sheet

Voltage:

380/50Hz/3PH

Control System:

PLC

Speed:

15-20m/min

Thickness:

0.25mm-0.6mm

Power:

3Kw

Raw Material Width:

925mm

Hydraulic Station Power:

3KW

Highlight:

0.25mm roof tile roll forming machine

ibr roof tile roll forming machine

ibr portable roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Get Best Price

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Get Best Price

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Get Best Price

Video

380v 50hz corrugated Roofing Sheet Roll Forming Machine Stable Performance Long Life Span

Get Best Price

86-317-2016816

Contact Now

Product Description

IBR 686 High Speed Productive Roof Tile Roll Forming Machine

IBR 686 is our company’s main model in the Zimbabwe market. The version produced by it has a usage rate of up to 90% in Zimbabwe. Because of the stable operation, high efficiency and low energy consumption of the machine, it can effectively save customers production costs and labor costs. .

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.25-0.6mm
3	Working Speed	15-20/min
4	Roller Station	18 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This type of tile is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses. The anti-corrosion materials of the tile are polyester, silicon modified polyester, polyvinyl fluoride and plastisol, etc. It has anti-corrosion and acid-resistant effects, so its service life is 10-15 years

Advantage

This version is mostly used for roofing, wall and interior and exterior wall decoration of buildings, warehouses, special buildings, large-span steel structure houses, etc. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. Features such as, protection-free, etc., have been widely implemented.

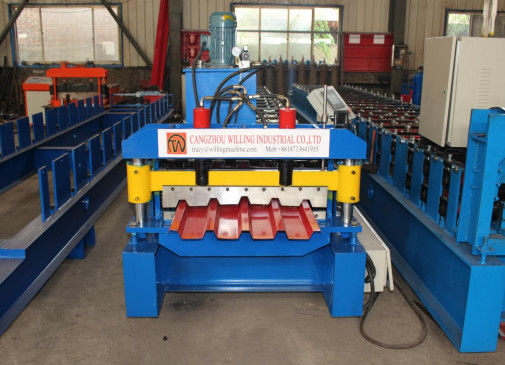

Ibr 686 High Speed 0.25mm Roof Tile Roll Forming Machine Portable 0
