|Application:||Roofing Sheet Forming||Raw Material:||PPGI/Galvanized Sheet|
|Voltage:||380V 50Hz||Control System:||PLC|
|Size / Dimensions:||To Order||OEM Or ODM:||Both Available|
|Original:||China Mainland||Warranty:||1 Year|
|Brand Of PLC:||Delta||Power:||3 Phase|
ce steel tile roll forming machine,
PLC steel tile roll forming machine,
PLC tile roll forming machine

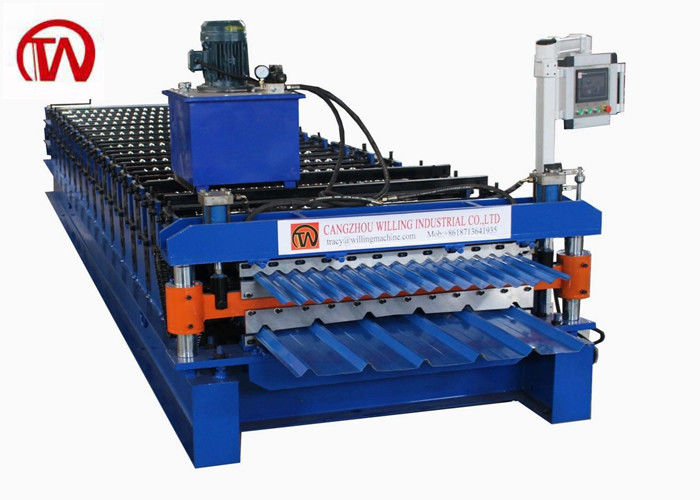

Customized Easy Operated Color Coated Steel Roof Tile Roll Forming Machine
This is a roll forming machine that used to make roof tile or wall panel. it is a very easy operated machine with PLC control and set. The applicated raw material could be color coated steel, aluminum, alumzinc coated steel and galvanized iron . Thickness of raw metal coil could be 0.4-1.1mm
Well, the formed profiles can be used as roof tile, fence, as well as wall panel for metal consttruction. In order to produce very good and beautiful color caoted steel roof tile, Before the roll forming machine be fabricated we must check carefully with the customer what quality roof tiiles that they suuposed to make, As more roller stations will be considered to use to produce better quality roof tile.
|1||Coil||Galvalume, Galvanized, PPGI, Aluminum|
|2||Raw Material Thickness||20-30 GA|
|3||Working Speed||3-4 m/min ( not including the cutting time)|
|4||Roller Station||16 Raws|
|according to the dimensions of profile|
|6||Machine Weight||5800 KG|
Electrical Control System
Delta PLC (can be customized)
Drive Motor Power
Hydraulic Station Power
240V, 60HZ, 3 PHASES(can be customized)
Single Chain 1 inch
Material of Shaft
70 mm 45#steel forged
|14||Material of Roller||
45# Steel Finish Machining, Plated Hard
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.
(3) Machine material
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, heat treatment.
Roller material: bearing steel with heat treatment
(4) Shearing mechanism
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.Material of the cutting blades: GCr12, processed by heat treatment
(5) Hydraulic system
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Hydraulic oil :40#
