C U Stud With Punching Stud And Track Roll Forming Machine With High Speed

C U Stud With Punching Stud And Track Roll Forming Machine With High Speed

Punching Stud Roll Forming Machine

High Speed Stud Roll Forming Machine

Track Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

ce

Model Number:

FMS-stud&track channel

Contact Us
Request A Quote
C U Stud With Punching Stud And Track Roll Forming Machine With High Speed
C U Stud With Punching Stud And Track Roll Forming Machine With High Speed C U Stud With Punching Stud And Track Roll Forming Machine With High Speed C U Stud With Punching Stud And Track Roll Forming Machine With High Speed
Product Details
Control System:
PLC
Rollers:
11-15
Warranty:
1 Year
Product Name:
Stud And Track Roll Forming Machine
Forming Speed:
10-25m/min
Material:
Steel
Cutting Tolerance:
±2mm
Shaft Diameter:
70mm
Highlight:

Punching Stud Roll Forming Machine

,

High Speed Stud Roll Forming Machine

,

Track Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
6000-10000
Packaging Details
Naked with Plastic Film.
Delivery Time
45 days
Payment Terms
T/T, L/C,
Supply Ability
20 Set /Month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Product Description:

Light-gauge steel roll-forming is a process in metal stud manufacturing where thin steel sheets are shaped by passing them through rollers to create the characteristic “C” or “U” profile of metal studs used in construction framing. This method allows for precise customization of dimensions, such as width and depth, and the addition of holes or notches for wiring and utilities. Metal stud manufacturing plays a crucial role in the construction industry, providing a reliable and versatile solution for framing interior walls, ceilings, and partitions.

Advantages of Roll Former

• Automatic roll forming and cutting with Inverter, PLC, HMI.
• Automatic programmable length settings via the touch panel.
• Customize design.
• Stable operation with strong power and body frame.

Sheet Roll Forming Machine Line

• Decoiler • Roll forming • Cutting • Run table, with PLC contact system

Technical Parameters:

Product Name Stud And Track Roll Forming Machine
Dimension 6.5*0.8*1.2m
Warranty 1 Year
Rollers 11-15
Forming Speed 10-25m/min
Shaft Diameter 70mm
Cutting Tolerance ±2mm
Power 5.5KW
Cutting Length Adjustable
Control System PLC

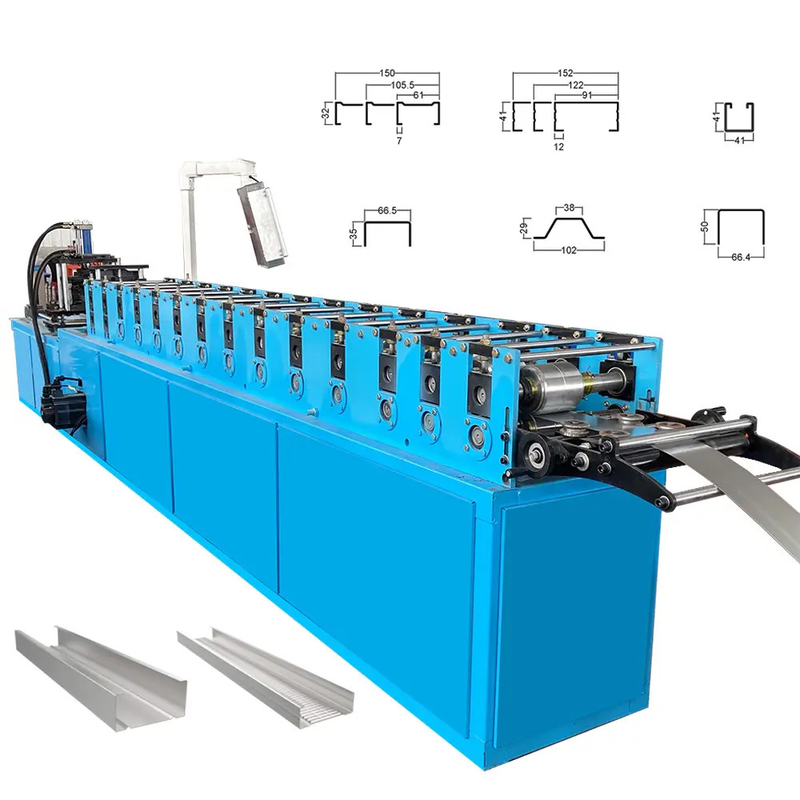

Drawing for custom profiles

As a leading metal forming manufacturer, we are not limited to a specific version, but also provide customized ideas for our customers, if you or your customers have unique ideas, please feel free to contact us.
C U Stud With Punching Stud And Track Roll Forming Machine With High Speed 0

FAQ:

Q1: How ​​long is the warranty?

A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.

Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.

Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How ​​about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
